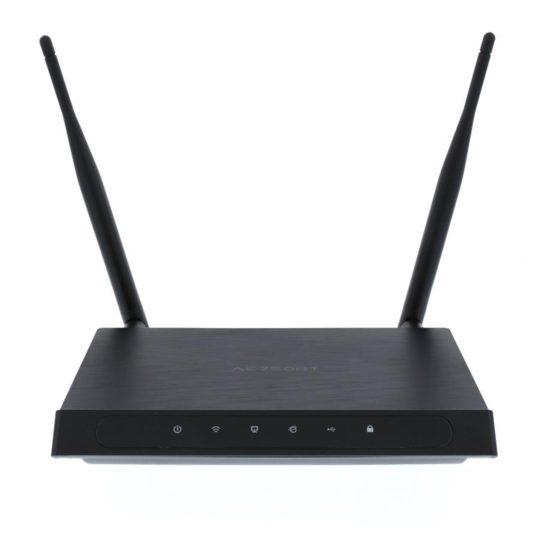

- Page 1 AC750 Wireless Dual Band Gigabit Router RNX-AC750RT Quick Installation Guide...
-
Page 2: Hardware Connection
AC750 Wireless Dual Band Gigabit Router RNX-AC750RT Quick Installation Guidde 1. Hardware Connection a. Power off your modem and disconnect your existing router if you have one. (If the modem has a backup battery, please remove it too.) b. Use an Ethernet cable to connect the WAN port of the router to the modem’s LAN port. - Page 3 AC750 Wireless Dual Band Gigabit Router RNX-AC750RT Quick Installation Guidde After successful login, you can configure the router using the web browser. Please click the Quick Setup link on the left of the main menu and the Quick Setup screen will appear. Click Next to continue.
- Page 4 AC750 Wireless Dual Band Gigabit Router RNX-AC750RT Quick Installation Guidde into the WAN port before detection. The appropriate configuration page will be displayed when an active Internet service is successfully detected by the Router. If the connection type detected is Dynamic IP, the MAC Clone page will appear as shown below.
- Page 5 AC750 Wireless Dual Band Gigabit Router RNX-AC750RT Quick Installation Guidde If the connection type detected is L2TP, the next screen will appear as shown below. Fill the blanks with the parameters provided by your ISP, and then click Next. Select Static IP if the IP Address/ Subnet Mask/ Gateway and DNS server address have been provided by your ISP.
- Page 6 AC750 Wireless Dual Band Gigabit Router RNX-AC750RT Quick Installation Guidde Select Static IP if the IP Address/ Subnet Mask/ Gateway and DNS server address have been provided by your ISP. Then please enter server IP address or domain name provided by your ISP, and also enter the corresponding parameters.
- Page 7 AC750 Wireless Dual Band Gigabit Router RNX-AC750RT Quick Installation Guidde Configure the basic parameters for 2.4GHz wireless network. You can rename your 2.4GHz wireless network and create your own password in this page. Then click Next to continue. Configure the basic parameters for 5GHz wireless network. You can rename your 5GHz wireless network and create your own password in this page.
-
Page 8: Appendix: Troubleshooting
AC750 Wireless Dual Band Gigabit Router RNX-AC750RT Quick Installation Guidde Appendix: Troubleshooting What can I do if I cannot open the web-based management page? 1) Verify all the hardware connections. The computer should be connected to the LAN port (yellow).
