- Page 1 Issue department：R&D Division Date： 2019-11-17 Product Function Author： Jarek instruction No：CB3633A CB.36.33.01 Version： Page 1 of 5 CB3633A Function instruction 1.Electrical configuration diagram： CB3633A...

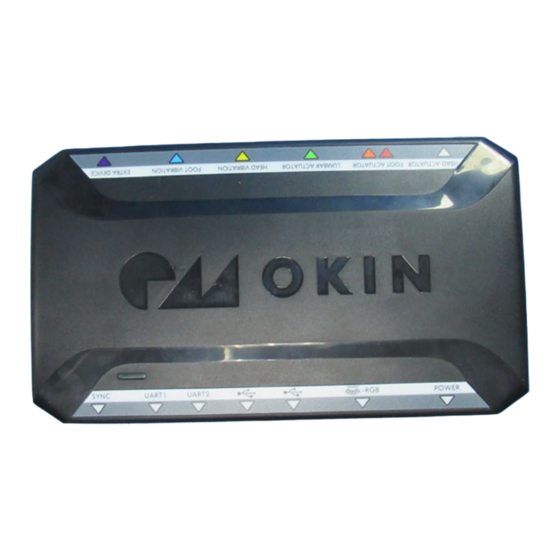

- Page 2 Issue department：R&D Division Date： 2019-11-17 Product Function Author： Jarek instruction No：CB3633A CB.36.33.01 Version： Page 2 of 5 2.Function Picture 3.Interface function description3.1.HEAD ACTUATOR Connect to head actuator,control by remote single: Click head up button on the remote, head actuator moves out, stop when released； Click head down button，head actuator moves in, stop when released；...
- Page 3 Issue department：R&D Division Date： 2019-11-17 Product Function Author： Jarek instruction No：CB3633A CB.36.33.01 Version： Page 3 of 5 3.4.HEAD1 VIBRATION & HEAD2 VIBRATION Connect to head massage,control by remote: Click head massage + button,head massage strengthens by one level; Click head massage - button,head massage weakenby one level; This function takes effect only by pressing the corresponding button on the remote.
- Page 4 Issue department：R&D Division Date： 2019-11-17 Product Function Author： Jarek instruction No：CB3633A CB.36.33.01 Version： Page 4 of 5 3.9.underbed light-RGB Click button of underbed light, turns on(or change) the underbed light, switch the status once when click once； This function takes effect only by pressing the corresponding button on the remote. 3.10.USB Power OUT Connect USB panel 3.11.UART1 port &...
- Page 5 Issue department：R&D Division Date： 2019-11-17 Product Function Author： Jarek instruction No：CB3633A CB.36.33.01 Version： Page 5 of 5...
