ISL81801EVAL1Z
Evaluation Board

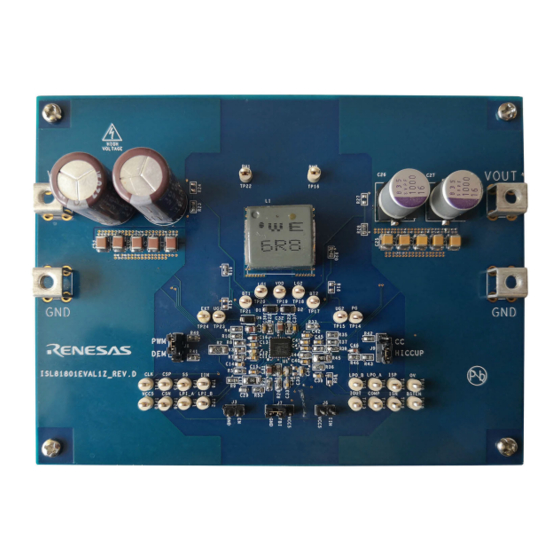

The ISL81801EVAL1Z evaluation board (shown in
synchronous buck-boost controller that provides external soft-start, independent enable functions, and integrates
UV/OV/OC/OT protection. A programmable switching frequency ranging from 100kHz to 600kHz helps to
optimize the inductor size while the strong gate driver delivers up to 20A for the buck-boost output.
Key Features
• Wide input range: 9V to 80V
• Bi-directional operation
• High light-load efficiency in pulse skipping DEM operation
• Programmable soft-start
• Optional DEM/PWM operation
• Optional CC/HICCUP OCP protection
• Supports pre-bias output with soft-start
• PGOOD indicator
• OVP, OTP, and UVP protection
• Back biased from output to improve efficiency
Specifications
The ISL81801EVAL1Z evaluation board is designed for high current applications. The current rating of the
ISL81801EVAL1Z is limited by the FETs and inductor selected. The ISL81801EVAL1Z electrical ratings are
shown in
Table
1.
Table 1.
Electrical Rating
Parameter
Input Voltage
Switching Frequency
Output Voltage
Output Current
OCP Set Point
Ordering Information
Part Number
ISL81801EVAL1Z
Related Literature
For a full list of related documents, visit our website:
•
ISL81801
device page
R12UZ0082EU0100 Rev.1.00
May.6.20
Figure
5) features the ISL81801, a 80V high voltage
9V to 80V
200kHz
12V
10A
Minimum 11A at ambient room temperature
High Voltage BUCK-BOOST Controller Evaluation Board
User's Manual
Rating
Description
Page 1 of 17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renesas ISL81801EVAL1Z
Summary of Contents for Renesas ISL81801EVAL1Z
- Page 1 • Back biased from output to improve efficiency Specifications The ISL81801EVAL1Z evaluation board is designed for high current applications. The current rating of the ISL81801EVAL1Z is limited by the FETs and inductor selected. The ISL81801EVAL1Z electrical ratings are shown in Table Table 1.
- Page 2 ISL81801EVAL1Z VOUT FB_IN BOOT1 PGND VCC5V PHASE1 IMON_IN ISL81801 TQFN LG1/ IMON_OUT PWM_MODE SGND LG2/ PLL_COMP OC_MODE RT/SYNC PHASE2 SS/TRK COMP FB_OUT BOOT2 Figure 1. ISL81801EVAL1Z Block Diagram R12UZ0082EU0100 Rev.1.00 Page 2 of 17 May.6.20...
-
Page 3: Functional Description
1. Functional Description Functional Description The ISL81801EVAL1Z is the same test board used by Renesas application engineers and IC designers to evaluate the performance of the ISL81801 TQFN IC. The board provides an easy and complete evaluation of all the IC and board functions. - Page 4 ISL81801EVAL1Z 1. Functional Description Quick Test Guide 1. Jumper J8 provides the option to select PWM or DEM. Jumper J9 provides the option to select constant current limit or HICCUP. See Table 2 for the operating options. Ensure that the circuit is correctly connected to the supply and electronic loads before applying any power.
-
Page 5: Pcb Layout Guidelines
MOSFETs. 2. If signal components and the IC are placed separately from the power train, Renesas recommends using full ground planes in the internal layers with shared SGND and PGND to simplify the layout design. Otherwise, use separate ground planes for the power ground and the small signal ground. - Page 6 12. Use a pair of traces with minimum loop for the input or output current sensing connection. 13. Ensure the feedback connection to the output capacitor is short and direct. ISL81801EVAL1Z Evaluation Board Figure 5. ISL81801EVAL1Z Evaluation Board, Top View Figure 6. ISL81801EVAL1Z Evaluation Board, Bottom View R12UZ0082EU0100 Rev.1.00 Page 6 of 17 May.6.20...
- Page 7 ISL81801EVAL1Z Circuit Schematic VOUT Figure 7. Schematic...
-
Page 8: Bill Of Materials
ISL81801EVAL1Z 2. PCB Layout Guidelines Bill of Materials Reference Designator Description Manufacturer Manufacturer Part PWB-PCB, ISL81801EVAL1Z, IMAGINEERING INC ISL81801EVAL1ZREVDPCB REVD, ROHS CAP-AEC-Q200, SMD, 0603, CGA3E2X7R1H103K080AE 0.01µF, 50V, 10%, X7R, ROHS C1, C2, C5, C6, C7, C8, C9, CAP-AEC-Q200, SMD, 1210,... - Page 9 Reference Designator Description Manufacturer Manufacturer Part DIODE-ZENER, SMD, SOD-323, Diodes, Inc. MM3Z4V7T1G 4.7V, 6%, 300mW, ROHS IC-80V 4-SWITCH PWM Renesas Electronics America ISL81801FRTZ CONTROLLER, 32P, TQFN, 5x5, ROHS Q3, Q8 TRANSIST-MOS, N-CHANNEL, Infineon Technology BSC024NE2LSATMA1 SMD, 8P, PG-TDSON, 25V, 25A, ROHS...
-
Page 10: Board Layout
DO NOT POPULATE OR PURCHASE DO NOT POPULATE OR PURCHASE AFFIX TO BACK OF PCB LABEL-DATE CODE_LINE 1: Renesas Electronics America LABEL-DATE CODE YRWK/REV#, LINE 2: BOM NAME Board Layout Figure 8. Silkscreen Top R12UZ0082EU0100 Rev.1.00 Page 10 of 17... - Page 11 ISL81801EVAL1Z 2. PCB Layout Guidelines Figure 9. Top Layer Figure 10. Second Layer (Solid Ground) R12UZ0082EU0100 Rev.1.00 Page 11 of 17 May.6.20...
- Page 12 ISL81801EVAL1Z 2. PCB Layout Guidelines Figure 11. Third Layer Figure 12. Bottom Layer R12UZ0082EU0100 Rev.1.00 Page 12 of 17 May.6.20...
- Page 13 ISL81801EVAL1Z 2. PCB Layout Guidelines Figure 13. Silkscreen Bottom R12UZ0082EU0100 Rev.1.00 Page 13 of 17 May.6.20...
-
Page 14: Typical Performance Curves
ISL81801EVAL1Z 3. Typical Performance Curves Typical Performance Curves = 12V, T = 25°C, unless otherwise noted. Vin = 9V Vin = 12V Vin = 9V Vin = 12V Vin = 24V Vin = 36V Vin = 24V Vin = 36V... - Page 15 ISL81801EVAL1Z 3. Typical Performance Curves = 12V, T = 25°C, unless otherwise noted. (Continued) Phase 1 50V/Div 200mV/Div Phase 2 20V/Div 100mV/Div 10A/Div 5A/Div 4µs/Div 2ms/Div Figure 21. Load Transient, V = 9V, I = 0A to 10A, Figure 20. Phase 1, Phase 2, V and Inductor Current, 2.5A/µs, CCM...
- Page 16 ISL81801EVAL1Z 3. Typical Performance Curves = 12V, T = 25°C, unless otherwise noted. (Continued) Phase 1 10V/Div Phase 1 50V/Div Phase 2 10V/Div Phase 2 10V/Div 5V/Div 10V/Div 10A/Div 20A/Div 4ms/Div 40ms/Div Figure 26. Start-Up Waveform, V = 80V, I = 10A, Figure 27.
-
Page 17: Revision History
ISL81801EVAL1Z 4. Revision History Revision History Rev. Date Description 1.00 May.6.20 Initial release R12UZ0082EU0100 Rev.1.00 Page 17 of 17 May.6.20... -
Page 18: Corporate Headquarters
Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products. - Page 19 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Renesas Electronics ISL81801EVAL1Z...
