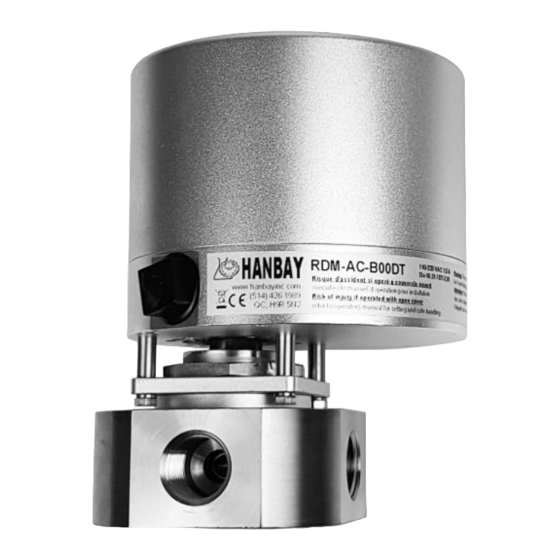

USER MANUAL
Contents
2
2
2
2
3
4
4
5
5
6
7
7
8
8
9
11
13
*Only model numbers:
RDx-AC-BxxDT w/ ex-proof
lid engraving (p.8)
www.hanbayinc.com | 1 800 315 4461
hanbaysales@hanbayinc.com
Advertisement
Table of Contents
Related Manuals for Hanbay RD-AC Series
Summary of Contents for Hanbay RD-AC Series
-
Page 1: Table Of Contents
RDx-AC-xxxDT-10.31 (110-240 VAC; TTL Control) CSA/IECEX Rated* USER MANUAL Contents INSTALLATION Mounting Wiring Wiring for Explosion Proof Actuators Wiring for Non-Explosion Proof actuators Power Supply and Current Draw Control Signal and Feedback OPERATION DIP Switches Functionality Calibration Manual Override Troubleshooting EXPLOSION PROOF CERTIFICATIONS ACTUATOR DIMENSIONS PART NUMBER BREAKDOWN... -
Page 2: Installation
User Manual RDx-AC-xxxDT-10.31 INSTALLATION Mounting The holes indicated in the image are intended for a mounting bracket. They are threaded for ¼-20 and are 0.4” deep. The other two visible holes are threaded 10-32, 0.50” deep, and are intended to be used to lock the lid in position with screws. For detailed dimensions see p.9. -
Page 3: Wiring For Non-Explosion Proof Actuators
User Manual RDx-AC-xxxDT-10.31 Once the cable and cable gland are installed, connect the wires to the pins on the terminal block as indicated here. Note: the cables seen in the image below will not be present in explosion-proof models. Function Already connected to power supply (connect live wire to loose black cable with crimp connector, see p.4) Already connected to power supply... -
Page 4: Power Supply And Current Draw
User Manual RDx-AC-xxxDT-10.31 Power Supply and Current Draw AC Voltages The RDx-AC-xxxDT actuator may be connected to voltages ranging within 110-240 VAC. The current draw will range from minimum 10 mA to maximum 1.5 A while the actuator is active. When not moving, the actuator draws approx. 5 mA. AC power is connected to the WHITE &... -
Page 5: Operation
User Manual RDx-AC-xxxDT-10.31 OPERATION DIP Switches The DIP switches allow you to change the settings on your actuator. To flip a switch, gently use a small flat-head screwdriver. See the table below for DIP switch functionality. In this example DIPs 1, 2, 5 and 12 are on. DIP 1 DIP 2 Description... -
Page 6: Functionality
User Manual RDx-AC-xxxDT-10.31 DIP 3 Reserved for custom function. DIP 4 Sets direction of offset (offset only required in RDH and RDF models). DIP 5 Sets the highest amount of offset, typically 12°. NOTE: To set maximum offset DIPs 5,6, and 7 will need to be high for a total of 21°. -
Page 7: Manual Override
User Manual RDx-AC-xxxDT-10.31 4-pos Functionality (DIP 8 ON) Input #1 Input #2 Action taken (Pin 1) (Pin 2) High High Moves to or remains in center position Back High Moves to or remains in right position High Moves to or remains in left position Moves to or remains in back position Top View onto valve or... -
Page 8: Troubleshooting
A sticking valve may be the problem. Remove the valve from the actuator, and re-test the actuator. Remove power. Re-check the wiring and the power/signal apparatus. Power actuator, and re- calibrate. If the problem persists, please call Hanbay for technical support. EXPLOSION PROOF CERTIFICATIONS... -
Page 9: Actuator Dimensions
User Manual RDx-AC-xxxDT-10.31 ACTUATOR DIMENSIONS RDL & RDM -AC-xxxDT models Page 9 of 13 www.hanbayinc.com | 1 800 315 4461 Rev.2021.9 hanbaysales@hanbayinc.com... - Page 10 User Manual RDx-AC-xxxDT-10.31 RDH-AC-xxxDT models Page 10 of 13 www.hanbayinc.com | 1 800 315 4461 Rev.2021.9 hanbaysales@hanbayinc.com...
- Page 11 User Manual RDx-AC-xxxDT-10.31 RDF-AC-xxxDT models Page 11 of 13 www.hanbayinc.com | 1 800 315 4461 Rev.2021.9 hanbaysales@hanbayinc.com...
-
Page 12: Part Number Breakdown
PART NUMBER BREAKDOWN Full Hanbay Part Number: Valve Manufacturers Part # / CU # No Valve or Mounting Kit Mounting Kit, Customer Supplies Valve, does not send valve to Hanbay R-Series Mounting Kit, Customer Supplies Valve, Continuous sends valve to Hanbay... -
Page 13: Label Breakdown
User Manual RDx-AC-xxxDT-10.31 LABEL BREAKDOWN Firmware Version AF-1.05 MM = Multiturn AB-1.05 MML = Multiturn Low Torque AS-1.05 MMUL = Multiturn Extra Low Torque Actuator Supply Voltage QM = Quarter turn 12-24 VDC @ 3.0 A or QM97 = Quarter turn 97° 110-240 VAC @ 1.5 A DT-2.01 DC-2.01...
