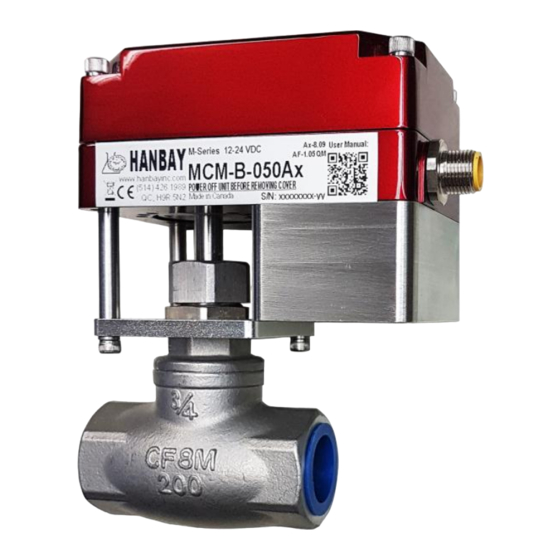

MCx-B-xxxAx-8.09
Contents
Installation
Mounting
Connecting Power and Signal
DIP Switch settings
Changing number of turns
Dimensions
Installing a cable
Mounting bracket
Cable entry
Page 1 of 10
Rev.2020.3
pg. 1-3
pg 1
pg 2
pg 2-3
pg. 4-6
pg 4
pg 5
pg 5-6
pg 6
pg. 7-9
pg 7
pg 7-8
pg 9
pg 9
pg. 10
Installation

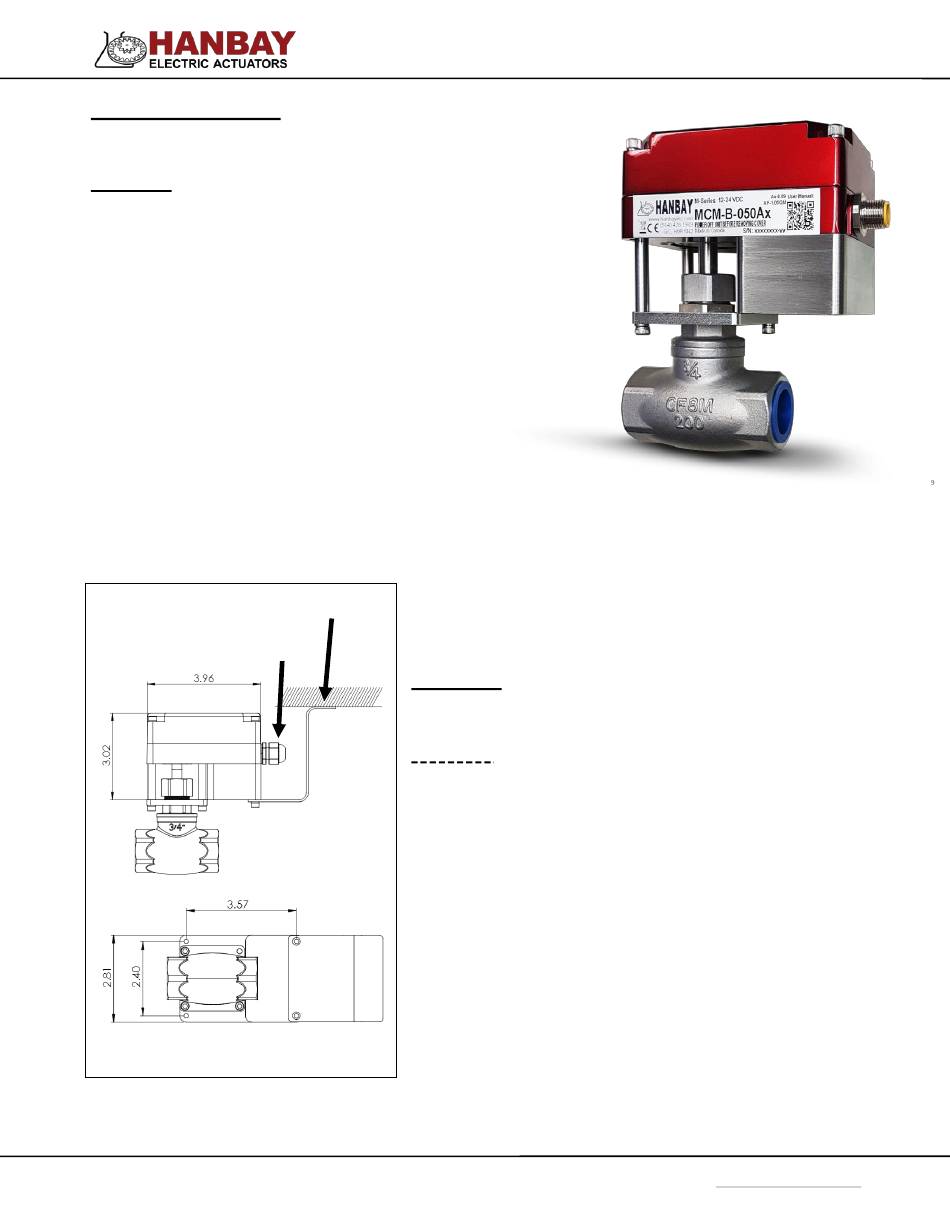

Mounting:
Usually, the actuator has to be mounted and supported as shown
in the picture to the left.
Exceptionally, and only if the application is vibration free and the
tubing is minimum ¼" dia. stainless, the actuator may be
suspended on the tubing itself.
User Manual MCx-B-xxxAx-8.09
www.hanbayinc.com | 1 800 315 4461
hanbaysales@hanbayinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-B-A-8.09 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanbay MC-B-A-8.09 Series

Summary of Contents for Hanbay MC-B-A-8.09 Series

  • Page 1: Table Of Contents

    User Manual MCx-B-xxxAx-8.09 MCx-B-xxxAx-8.09 Contents Installation pg. 1-3 Mounting pg 1 Wiring pg 2 Connecting Power and Signal pg 2-3 Operation pg. 4-6 DIP Switch settings pg 4 Torque Settings pg 5 Signal loss and Calibration pg 5-6 Troubleshooting pg 6 Appendix pg.

  • Page 2: Wiring

    User Manual MCx-B-xxxAx-8.09 Wiring: The actuator comes standard with a Turck 5 position connector and a 20’ cable with plug. Cut the cable to the length required and then connect according to the following wire color schematic: Wire color schematic for “Turck5”cable: Pin Colour Function White ->...
  • Page 3 Signal Gnd. is NOT ISOLATED from Power Gnd. in all MCx-B-xxxAB basic models. External If your signal Gnd. is different from 4 .. 20mA Power Gnd. use HANBAY MCx-B-xxxAI Internal Sensing or MCx-B-xxxAF model actuators. resistor NOTE 3: DO NOT CONNECT pin 4 directly or through a multimeter only to ground.

  • Page 4: Operation

    User Manual MCx-B-xxxAx-8.09 Operation DIP switches: The DIP switches allow you to change the settings on your actuator. To flip a switch, gently use a small flat-head screwdriver. See chart on next page for DIP switch functionality. In this example DIPs 1, 2, 5 and 12 are on. Function Speed: Choose how quickly the actuator will turn the drive wheel.

  • Page 5: Torque Settings

    User Manual MCx-B-xxxAx-8.09 Torque Settings: To accommodate different valves and other applications Seating power settings: with different torque requirements, the actuator can be set to apply different torque on the valve stem when in the (when operating at 24V) seating mode. Please see the box to the right and the tables on pg.7-8to select the power setting that is right for your DIP 10 DIP 11...

  • Page 6: Troubleshooting

    A sticking valve may be the problem. Remove the valve from the actuator, and re-test the actuator. Remove power. Re-check the wiring and the power/signal apparatus. Power actuator, and re-calibrate. If the problem persists, please call Hanbay for technical support. Testing Battery Fail-Safe: The batteries will be continuously on charge when power is available to the actuator.

  • Page 7: Appendix

    User Manual MCx-B-xxxAx-8.09 Appendix Changing the number of turns: The 4...20mA (or 1…5V) input signal represents a total span of a number of turns. i.e.: If you set the number of turns to 2, then a signal of 12mA will set the actuator to exactly 1 turn from the fully closed position.
  • Page 8 User Manual MCx-B-xxxAx-8.09 Speed and Torque of MCM-B-xxxAx Actuators NOTE: If actuator is MCK-B-xxxAx, divide torque values by 3. Time for Torque in in-lbs Torque in in-lbs Torque in in-lbs Torque in in-lbs DIP 1 DIP 2 1 turn (sec) 16% Power* 33% Power* 66% Power*...
  • Page 9 User Manual MCx-B-xxxAx-8.09 Main Dimensions: MCx-B-xxAx -xxxAx -xxxAx -xxxAx -xxxAx models -xxxAx models Cable Installation: Select a connection cable with 5 leads. O.D. 2.5 - 6.5mm (0.10 - 0.26in). Be sure to not use a cable with an OD that is no bigger than this! Carefully insert the cable Remove the liquid The cable has to be stripped...

  • Page 10: Part Number Breakdown

    User Manual MCx-B-xxxAx-8.09 Part Number Breakdown Serial Number: Full Hanbay Part Number: Page 10 of 10 www.hanbayinc.com | 1 800 315 4461 Rev.2020.3 hanbaysales@hanbayinc.com...
