Scarlet Tech WL-410 Series User Manual

Wireless wind monitoring system
Hide thumbs Also See for WL-410 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
WL-410 Series
Wireless
Wind Monitoring System
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL-410 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scarlet Tech WL-410 Series

Summary of Contents for Scarlet Tech WL-410 Series

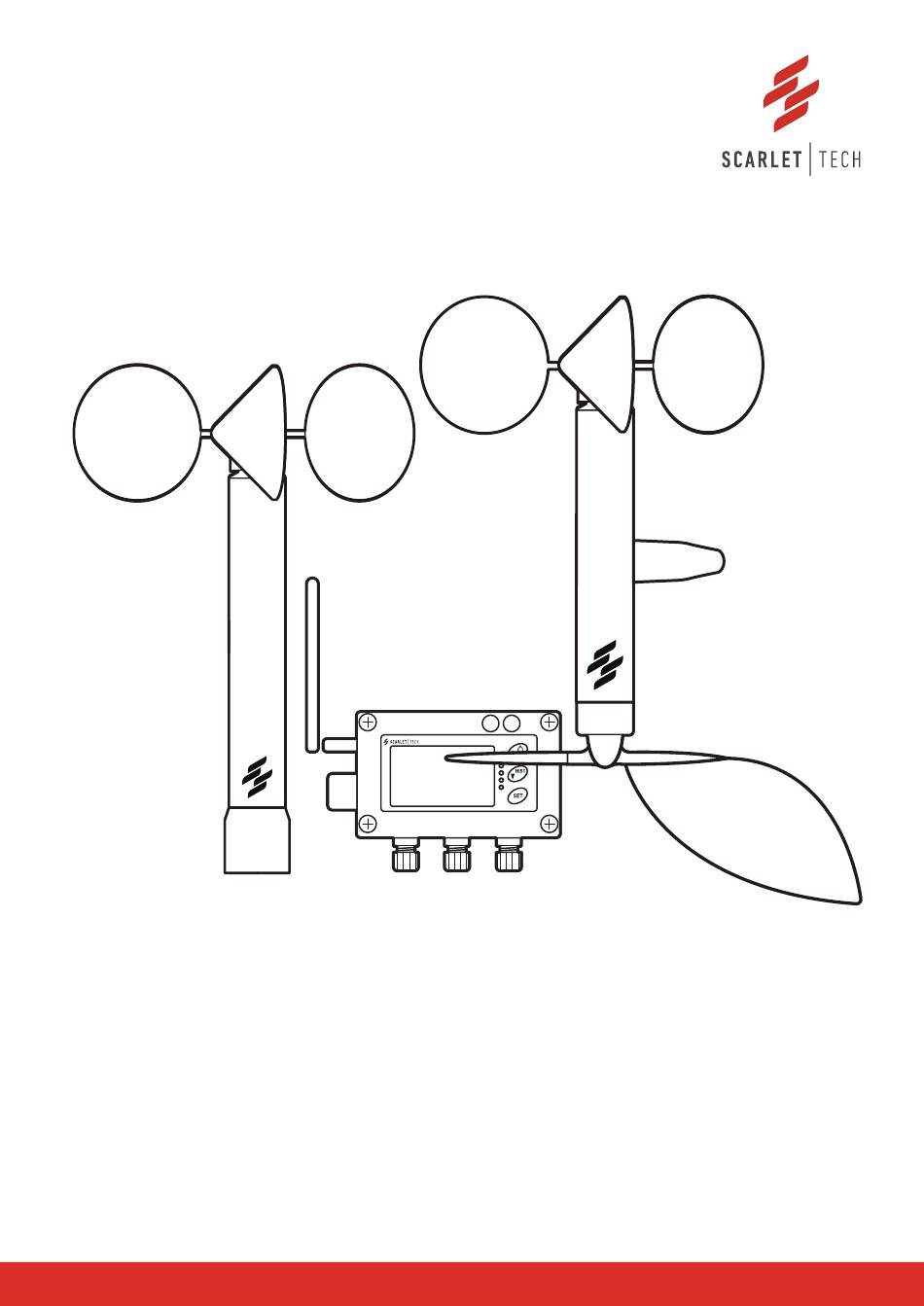

  • Page 1 WL-410 Series Wireless Wind Monitoring System User Guide...

  • Page 2: Instrument At A Glance

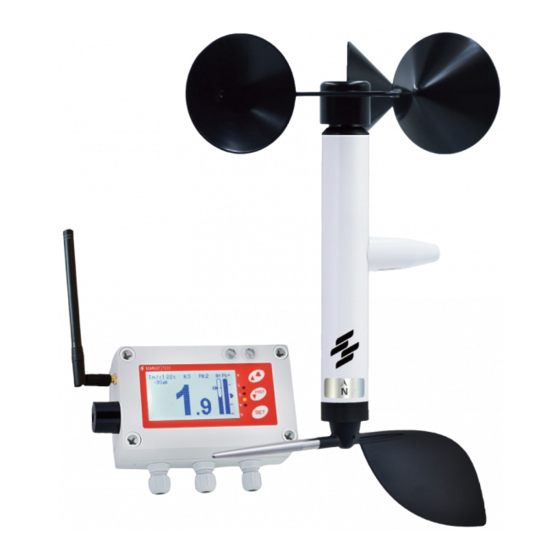

    Instrument at a Glance Overview WL-410 Wireless Wind Alarm System consists of a wind speed sensor and a receiver. The sensor measures wind speed and transmits data to the receiver. The 3.5-inch LCD display of receiver shows readings on the main page and the history graphs are shown in different pages.

  • Page 3: Sensor & Receiver

    Sensor & Receiver Sensor Wind cup (replaceable) Wind cup (replaceable) Sensor body Sensor body Wind vane Battery cap (O-ring sealed) Sensor unit switches ON automatically when the anemometer cups revolve. It switches OFF 6 hours after the anemometer cups stop revolving. In ON state, the sensor updates wind speed data every two seconds.

  • Page 4: Signal Reception

    Receiver Antenna (SMA connector) LCD display Red LED for Max Alarm Yellow LED for Pre Alarm 2 Max Alarm indicator Up/Mute button Down/History button Set menu button Buzzer Pre Alarm 1 indicator Pre Alarm 2 indicator Port 1 Port 2 Port 3 Select the position where the signal reception is strong enough under all conditions.

  • Page 5: First Page

    Display Scarlet WL-410 display consists of 3 pages including: wind speed readings (page 1), wind speed history graphs (page 2), and maximum alarm history graphs (page 3). By pressing HIST key to navigate to page 2 and 3 for the wind speed and max alarm history graphs.
  • Page 6 Wirings Please switch off the power before unscrew all 4 plastic screws and remove the front panel 12 to 24 V DC source The working voltage of receiver is 12 to 24 V DC. Please plug the power adapter or your own DC power source to the corresponding jack on the circuit board after opening the front panel.
  • Page 7 Settings Settings Procedure 1. Hold the SET key to enter the settings menu. If password protection is active, enter the correct password. The group of settings displays on the display. 2. Select the group by using the up and down keys and press the SET key to view the selected group.

  • Page 8: General Settings

    General Settings Factory Default Settable Range Description Sensor address Enclosed sensor 1…255 Set the sensor address of your Wind speed sensor Averaging period 2 sec 2/10/30 sec Averaging period for showed wind speed Wind speed unit km/h m/s, km/h, mph,knots Unit of displaying wind speed Temperature unit °...

  • Page 9: Sensor Pairing

    Bluetooth Smart Phone App (WL-410XB and WL-410XB 4-20mA model) Smart Phone Applications Scarlet provides free iOS and Android Apps. Users can download directly via QR link below: Android Sensor Pairing Before pairing, please turn on the Bluetooth function on your mobile device. Make sure the mobile device with Android 4.3 or newer with Bluetooth Low Energy (BLE).

  • Page 10: Technical Specification

    Technical Specification WL-410 WL-410XB WL-410XB/4-20mA Sensor & receiver Measurement range 0.6…50.0 m/s Unit m/s, km/h, knots, mph Resolution 0.1 m/s Accuracy +/-3% Averaging period Selectable 2 s, 10 s, 30 s Operating voltage 12…24 V DC Power consumption 300 mA (max.) Transmission distance 400 m 1300 m...

  • Page 11: Warranty Conditions

    Maintenance, Services & Warranty Warranty Conditions This instrument is guaranteed for one year against material or production defects, in accordance with our general sales conditions. During the warranty period the manufacturer reserves the right to decide either to repair or replace the product. Should you need for any reason to return back the instrument for repair or replacement take prior agreements with the local distributor from whom you bought it.
  • Page 12 Scarlet Tech Co., Ltd. © 2015 Scarlet Tech Co., Ltd. All rights reserved. 4F-3, No. 347 , HePing E Rd, 2nd Sec, DaAn District, Taipei City 106, Taiwan info@scarlet.com.tw www.scarlet-tech.com version 200803...

This manual is also suitable for:

Wl-410Wl-410xbWl-410xb/4-20ma
