Scarlet Tech WL-410 User Manual

Wireless wind alarm system
Hide thumbs Also See for WL-410:
Table of Contents

Advertisement

Quick Links

Download this manual
WL-410/XB
Wireless
Wind Alarm System
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL-410 and is the answer not in the manual?

Questions and answers

Related Manuals for Scarlet Tech WL-410

Summary of Contents for Scarlet Tech WL-410

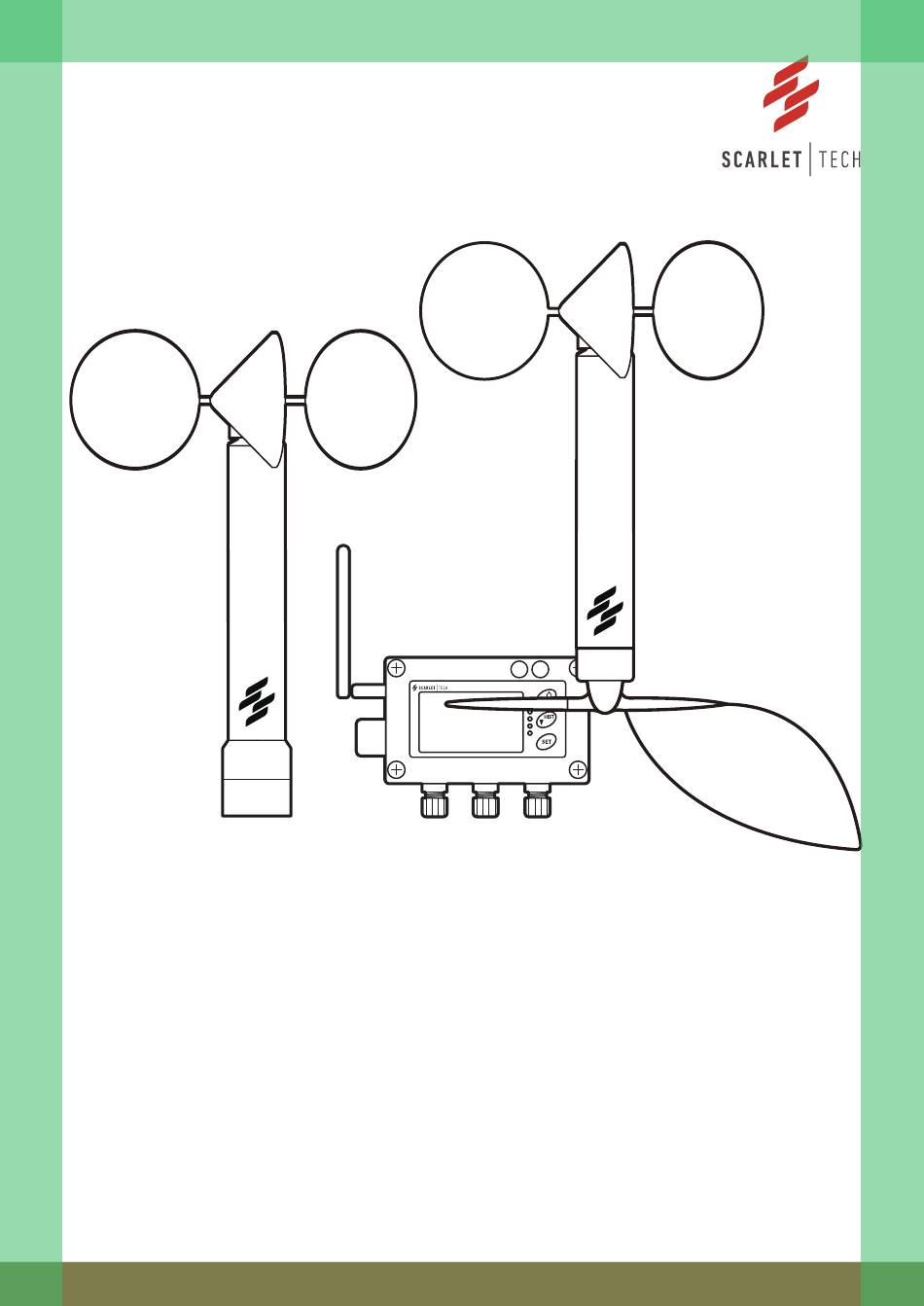

  • Page 1 WL-410/XB Wireless Wind Alarm System User Guide...

  • Page 2: Instrument At A Glance

    3 built-in relays when measured wind speeds exceeding the thresholds. A 868 MHz radio frequency module is installed in the receiver of model WL-410 and WL-410XB. In mode WL-410XB, an additional Bluetooth Low Energy chip is installed in the receiver to enable smartphone communication functionality.

  • Page 3: Sensor & Receiver

    Sensor & Receiver Sensor Wind cup Wind cup (replaceable) (replaceable) Aluminum Aluminum sensor body sensor body Battery cap wind vane (O-ring sealed) Sensor unit switches ON automatically when the anemometer cups revolve. It switches OFF 6 hours after the anemometer cups stop revolving. In ON state, the sensor updates wind speed data every two seconds. Address The correspondent sensor address has been present at the factory.
  • Page 4 Receiver Antenna (SMA connector) LCD display Red LED for Max Alarm Yellow LED for Pre Alarm 2 Max Alarm indicator Up/Mute button Down/History button Set menu button Buzzer Pre Alarm 1 indicator Pre Alarm 2 indicator Port 1 Port 2 Port 3 The indication light on the top of the LCD display blinks when the receiver receives signals from the sensor (every 2 seconds if the reception is good).
  • Page 5 DC Power 12 to 24 V DC source Working voltage of receiver is 12 to 24 V DC. Please plug the DC power source to the corresponding jack on the circuit board after opening the front panel. NOTE: Please make sure the polarity is correct otherwise the receiver will be damaged. Relays &...
  • Page 6 Bluetooth (WL-410XB and WL-410XB 4-20mA model) Smart Phone Applications Scarlet provides free iOS and Android Apps. Users can download directly via QR link below: iOS Wind Smart Android Wind Smart Sensor Pairing Before pairing, please turn on the Bluetooth function on your mobile device.
  • Page 7 Display Scarlet WindPro display consists of 3 pages including: 1) readings of wind speed; 2) alarm settings and 3) graphs to provide users information for project management. By pressing HIST key user can navigate to page 2 and 3 to see the wind speed and max. alarm history. To switch back to the first-page user can long pressing HIST key for 3 seconds or leave the device alone for 1 minute.

  • Page 8: Setting Of Parameters

    Settings Setting of Parameters 1. Hold pressed SET key to enter the setting menu. If the password protection is active, enter correct pass- word. The options of settings are shown on display. 2. Select the option by using up and down keys and press SET key to enter into selected option. 3.

  • Page 9: Pre Alarm

    Pre Alarm 2 Factory default Settable range Description Wind speed 52 km/h 1…50 m/s Pre alarm 2 limit Minimum time of exceed wind On delay 0 sec 0…600 sec speed to activate the pre alarm 2 Delay of alarm switch OFF after Off delay 0 min 0…60 min...

  • Page 10: General Settings

    General Settings Factory default Settable range Description Set the sensor address of your Sensor address Enclosed sensor 1…255 Wind speed sensor Averaging period for showed Averaging period 2 sec 2/10/30 sec wind speed m/s, km/h, mph, Wind speed unit km/h Unit of displaying wind speed knots Temperature unit...

  • Page 11: Technical Specification

    Technical Specification Instrument WL-410 WL-410XB WL-410XB/4-20mA Sensor & receiver Measurement range 0.6…50.0 m/s Unit m/s, km/h, knots, mph Resolution 0.1 m/s Accuracy +/-3% Averaging period Selectable 2 s, 10 s, 30 s Operating voltage 12…24 V DC Power consumption 300 mA (max.)

  • Page 12: Important Safety Information

    Safety, Handling, & Maintenance Important safety information WARNING: Failure to follow these safety instructions could result in Fire, electric shock, or other injuries, or damage to the sound level meter or other property. Read all the safety information below before using the sound level meter.

  • Page 13: Packing List

    Packing list • Wind speed sensor x 1 • Receiver unit x 1 • SMA antenna x 1 • User guide x 1 • Bluetooth & 4-20 mA current loop modules are optional in WL-410XB Accessories & spare parts To help in mounting and to enhance the transmission distance, you may need the following accessories. Please contact your local representative to get the quotation.

  • Page 14: Warranty & Services

    Warranty & Services Warranty conditions This instrument is guaranteed for one year against material or production defects, in accordance with our general sales conditions. During the warranty period, the manufacturer reserves the right to decide either to repair or replace the product. Should you need for any reason to return back the instrument for repair or replacement take prior agreements with the local distributor from whom you bought it.
  • Page 15 Scarlet Tech Co., Ltd. © 2015 Scarlet Tech Co., Ltd. All rights reserved. 4F-3, No. 347 , HePing E Rd, 2nd Sec, DaAn District, Taipei City 106, Taiwan E-mail: info@scarlet.com.tw www.scarlet-tech.com version 2019.09...

This manual is also suitable for:

Wl-410xbWl-410xb/4-20ma
