Summary of Contents for Atlantic Dardashti Z1-21

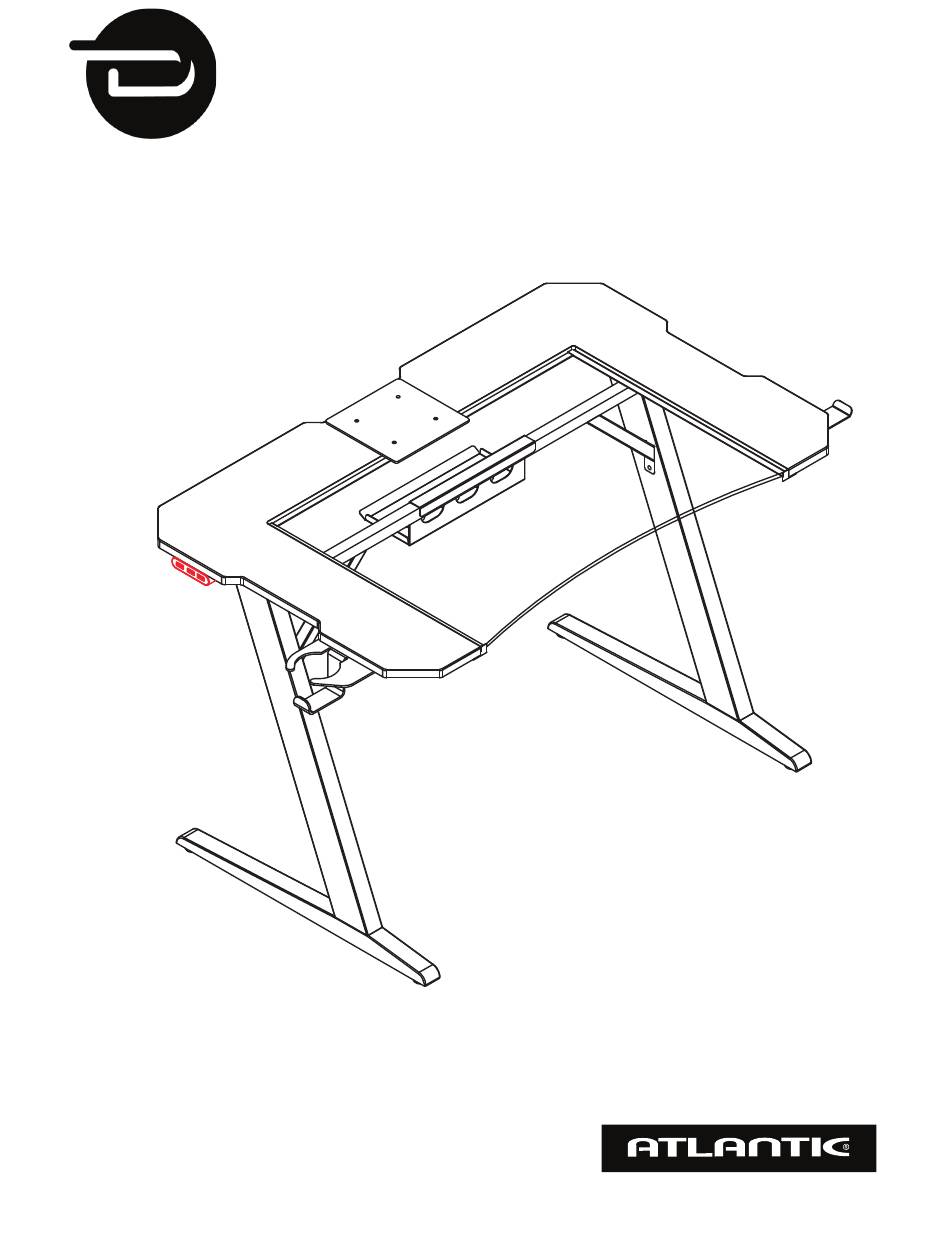

- Page 1 Dardashti Gaming Desk Z1-21 Item#: 780503367 /68/69/70/71 Customer Service: 800-747-2660 Ver. 01 4/14/21...
- Page 2 Assembly Tips: Become familiar with the instructions and all parts. Make sure that all parts are in the box and in good condition. Assemble the product on the open flat carton or a rug to protect the product and your floor. Some heavy products need a second person to assist in the assembly.
- Page 3 Parts List/ Lista de Piezas...
- Page 4 Use Allen wrench (D) to attach all bolts. Lay left leg (1) on the floor and attach and tighten crossbar (3) with three bolts (A). Lay assembly with crossbar on the floor. Attach and tighten right leg (2) to crossbar (3) with three bolts (A). Hand thread four leveling feet (E) into feet.
- Page 5 Lay desktop (5) on top of the frame and align the holes with the metal attachment tabs. Using Allen wrench (D), attach but do not fully tightenthe the four bolts (A). Now working in a clockwise sequence tighten all four bolts until the frame fits flush against the desktop.
- Page 6 Two people are required to carefully lift and position the glass desktop in the center ope ning until it is flush. Using a Phillips screw driver, attach metal plate (9) with four screws (B), so it overlaps the glass and is lays flat. Using Allen wrench (D), attach the USB hub (10) to the left underside with two bolts (C).
