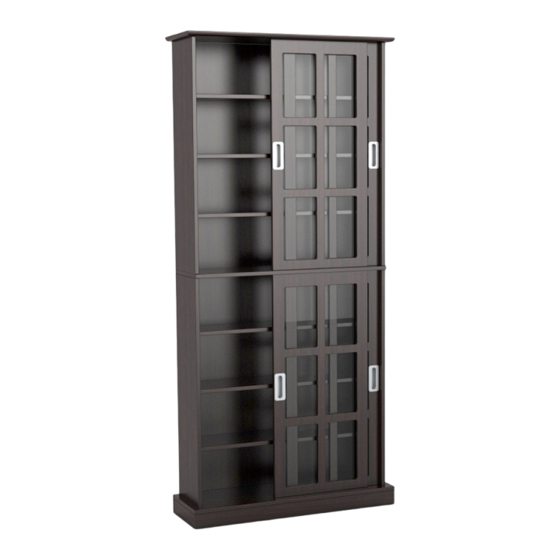

WindowPanes 720 Media Cabinet
720CD/288DVD+144CD/348BluRay + 144CD
Congratulations on your latest Atlantic purchase. Follow these instructions and you'll have this
new product assembled in no time. If you need any help,or to order replacement/missing parts,
please call 1-800-747-2660 or email customer_relations@atlantic-inc.com.
Advertisement
Related Manuals for Atlantic WindowPanes 720
Summary of Contents for Atlantic WindowPanes 720

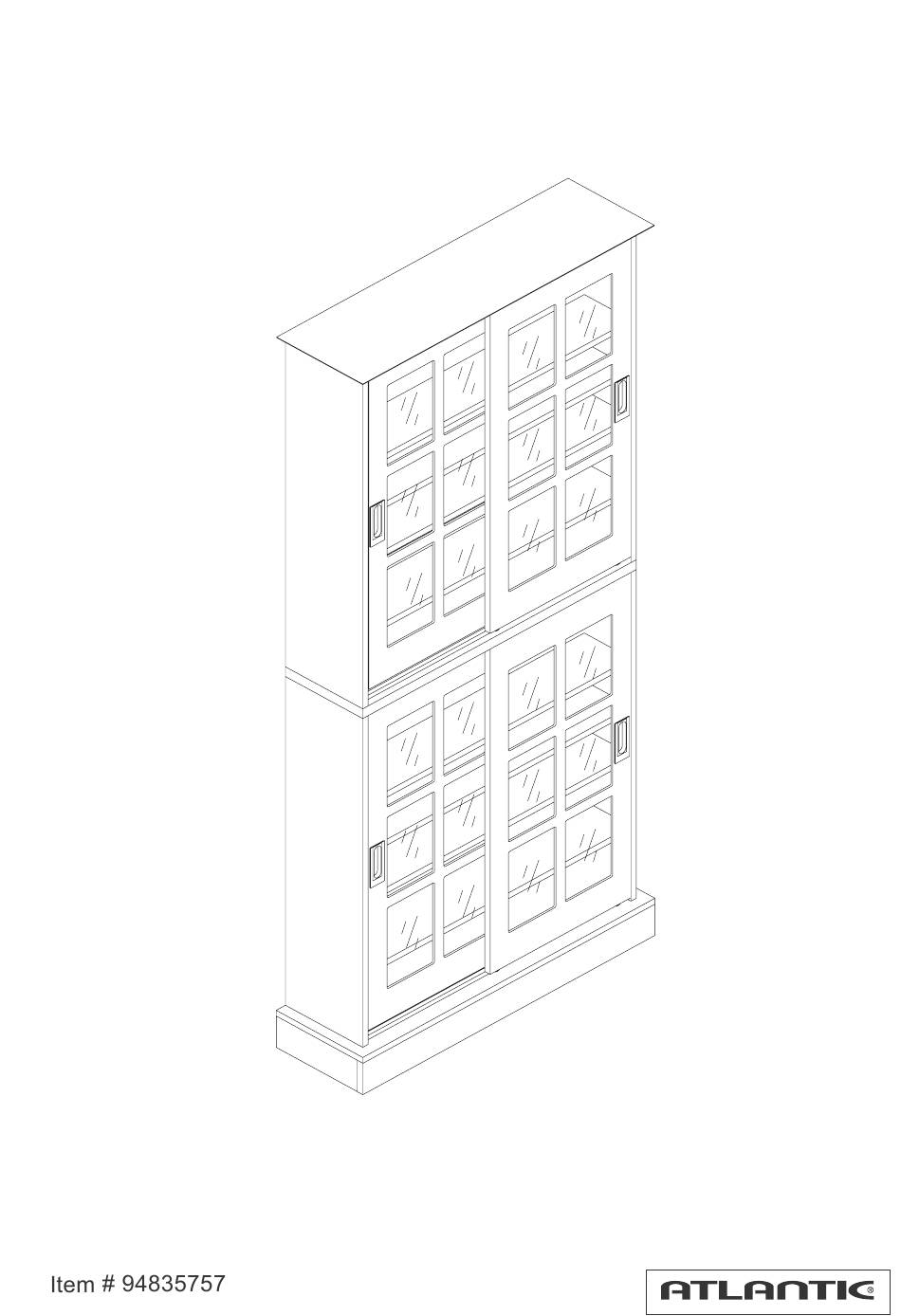

- Page 1 WindowPanes 720 Media Cabinet 720CD/288DVD+144CD/348BluRay + 144CD Congratulations on your latest Atlantic purchase. Follow these instructions and you’ll have this new product assembled in no time. If you need any help,or to order replacement/missing parts, please call 1-800-747-2660 or email customer_relations@atlantic-inc.com.
- Page 2 Part List Item Components parts list Item Components parts list...
- Page 3 1-Insert wood dowels (R) and CAM screws (P) to panels (B & C). Attach panels (B & C) to (A). Insert CAM locks (Q) to panel (A). Arrows on cam locks should be pointing towards screw opening, see diagram (2-A). Turn CAM locks (Q) clockwise to secure.
- Page 4 4-Insert wood dowels (R) and CAM screws (P) into panel (E). Insert CAM locks (Q) into panels (F). Attach panels (F) to base (E). Secure by turning CAM locks (Q) clockwise. - 3 -...
- Page 6 8-Insert pins (T) at desired heights.
- Page 7 9-Place shelves (M) on pins (T). Press stopper down Up stopper (V) Use screw to adjust height of wheel. Down wheel (W) Ux32 Ux32 10-Fasten stopper (V) on the top of the door with screw (U). Fasten down wheel (W) on the bottom of the door with screws (U).
- Page 8 release...
- Page 9 Sx44...
