Summary of Contents for Atlantic 35435725

  • Page 1 Media Tower Elite – 837 CD 837CD/531DVD/633Blu-Ray #35435725...

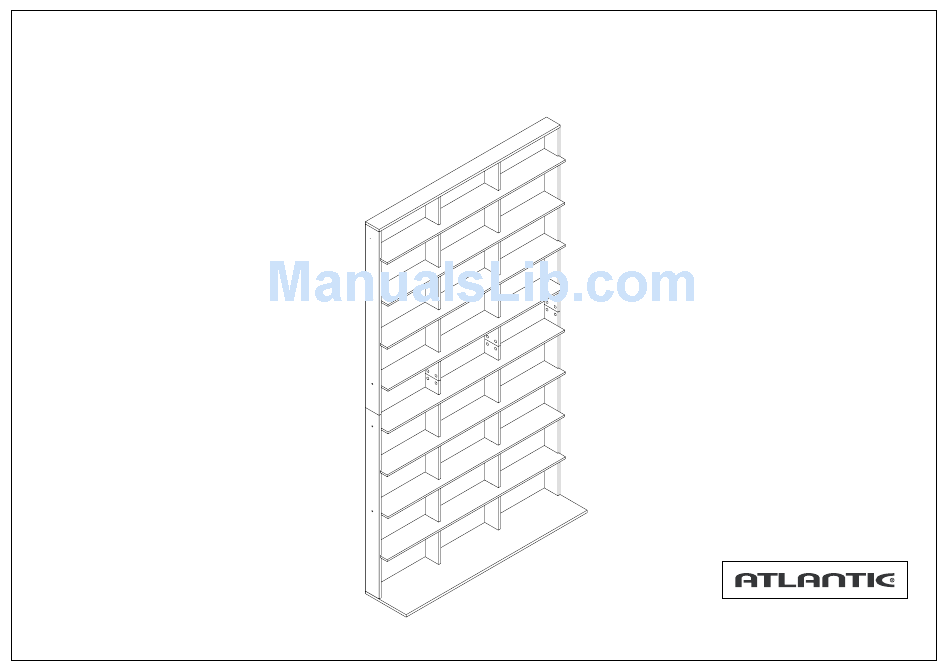

  • Page 2 Lista de Componentes / Qté Qté Liste des pieces Liste des pieces Tools needed / not included Outilis requis / non fournis Herramientas requeridas / no incluidas Phillips screwdriver Tournevis Phillips Desarmador de cruz (Phillips) R:1.1 110706 #35435725 - 1 -...
  • Page 3 Assembly Instructions / Instructions d'Assemblée: / Instrucciones de asamblea: 1 - Insert wood dowels (Q) into shelves (J) and attach panels (B&D) to shelves (J) by using screws (T). 2 - Insert panels (C) into shelves (J). 1 - Insérez les doigts en bois (Q) dans les étagères (J) et attachez les panneaux (B&D) aux étagères 2 - Insérez les panneaux (C) dans les étagères (J).
  • Page 4 5 - Insert wood dowels (Q) into shelves (J) and attach panels (E&G) to shelves (J) by using screws 6 - Insert panels (F) into shelves (J). (T). 6 - Insérez les panneaux (F) dans les étagères (J). 5 - Insérez les doigts en bois (Q) dans les étagères (J) et attachez les panneaux (E&G) aux étagères 6 - Inserte los paneles (F) en los estantes (J).
  • Page 5 9 - Insert wood dowels (Q), cam screws (P) and cam locks (U,N) into panels (B,C,D). 10 - Stand unit upright. Attach back panels (M,L,K) to body. Begin from Note - This item needs to be placed against the Turn cam locks (U,N) clockwise to secure. bottom and work your way upward using screws (S).
  • Page 6 HINWEIS: Zum sicheren Anbringen müssen die richtigen Werkzeuge und Kleinteile für Ihre Wandart (Holz, Gipsplatten, Beton, usw.) benutzt werden. Wenden Sie sich an Ihren Baumarkt vor Ort R:1.1 110706 #35435725 wenn Sie Hilfe brauchen. Befestigen Sie die Schrauben wann immer möglich in Holz.
