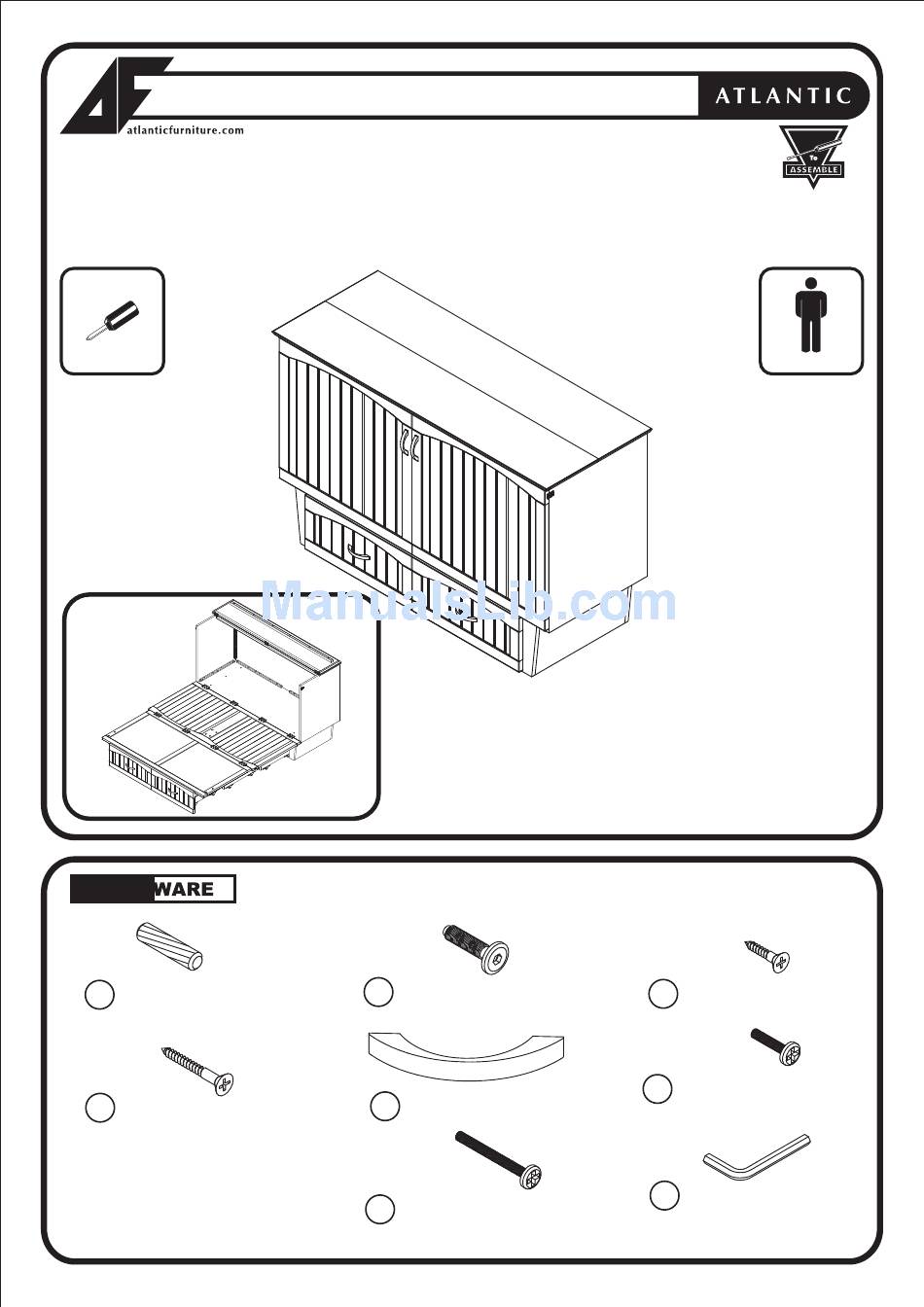

Before assembling your nantucket murphy bed, please read through these
instructions carefully. Familiarize yourself with the different parts.
Please note that you will require a Phillips head screwdriver (customer supplied).
please contact Atlantic Furniture at service@atlanticfurniture.com or 1-800-955-3726 / M-F 9:00-5:00 EST
Phillips head
screwdriver
Customer supplied
NOTE: WE INCLUDE SPARE HARDWARE IN CASE THE WOOD DOWEL, JCB, WOOD
HARDWARE
SCREW, METAL PULL SCREW OR ALLEN WRENCH ARE DAMAGED DURING ASSEMBLY.
A
Wood dowel - 10 pcs
Spare - 1 pc
D
Wood screw 1" - 18 pcs
Spare - 1 pc
NANTUCKET MURPHY BED
NANTUCKET MURPHY BED
QUEEN
ASSEMBLY INSTRUCTIONS
ATTENTION! If you receive a damaged or defective item,
B
JCB M6 X 25mm - 10 pcs
E
Metal pull - 6 pcs
G
Metal pull screw 40mm - 4 pcs
C
Spare - 1 pc
F
H
Spare - 1 pc
READY
Adult assembly
Wood screw 5/8" - 12 pcs
Spare - 1 pc
Metal pull screw 20mm - 8 pcs
Spare - 1 pc
Allen wrench - 1 pc
Spare - 1 pc
