Atlantic 36835515 Instruction Booklet

Atlantic inc. black sea tv cabinet assembly instructions
Hide thumbs

Advertisement

Quick Links

Download this manual

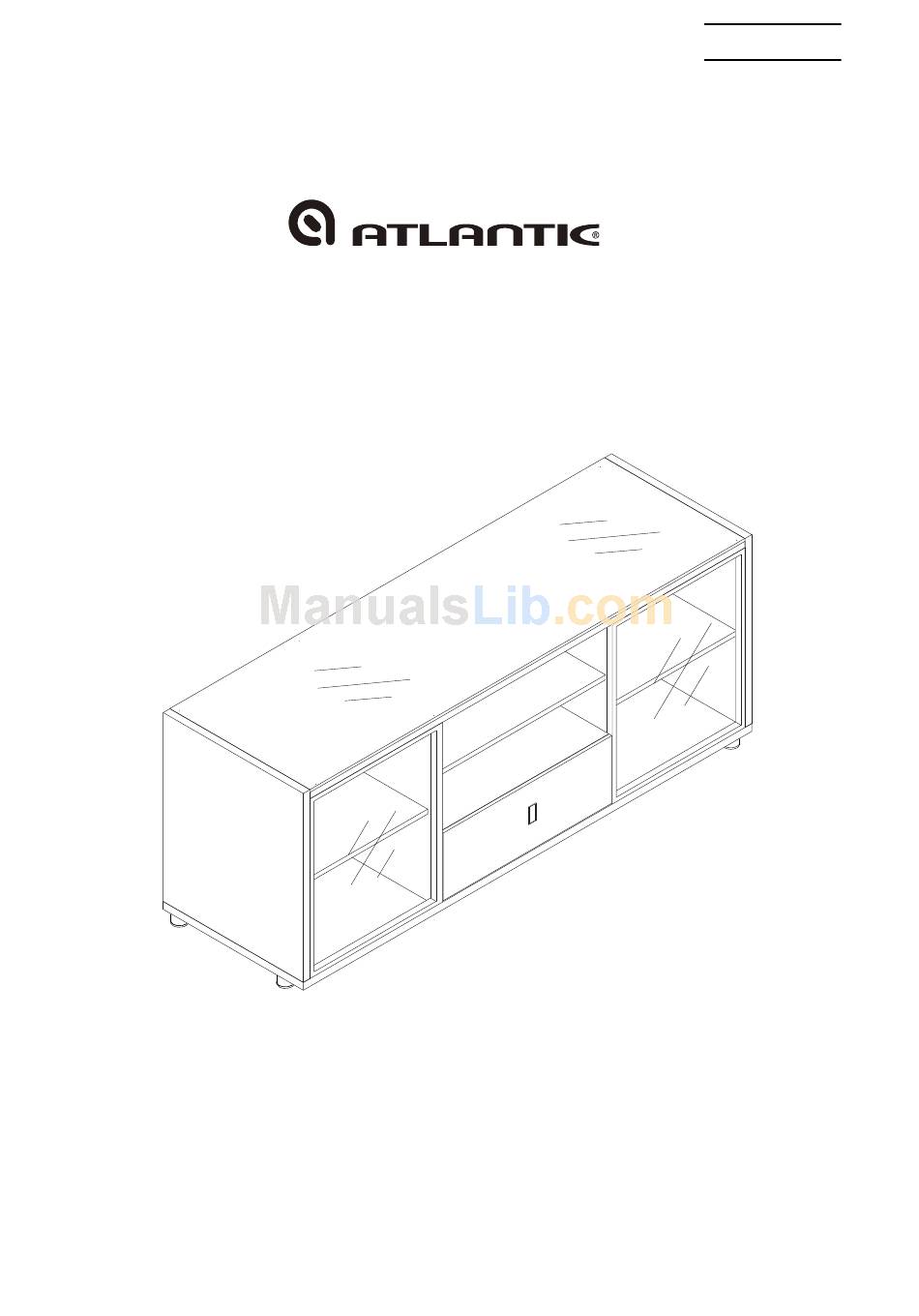

THIS INSTRUCTION BOOKLET CONTAINS
Lot Number
:
IMPORTANT SAFETY INFORMATION, PLEASE
Date:
READ AND KEEP FOR FUTURE REFERENCE.
Item # 36835515
Black Sea TV Cabinet
return to
Fits PLASMA or LCD TV's that measure 37 to 42 inches. If parts are missing, DO NOT
the store.To order missing / replacement parts or assembly assistance please
call 1-800-747-2660 or mail customer_relations@atlantic-inc.com.
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the 36835515 and is the answer not in the manual?

Questions and answers

Related Manuals for Atlantic 36835515

Summary of Contents for Atlantic 36835515

  • Page 1 Black Sea TV Cabinet return to Fits PLASMA or LCD TV’s that measure 37 to 42 inches. If parts are missing, DO NOT the store.To order missing / replacement parts or assembly assistance please call 1-800-747-2660 or mail customer_relations@atlantic-inc.com. - 1 -...

  • Page 2: Assembly Tips

    Assembly T ips: Become familiar with the instructions and all parts. Make sure that all parts are in the box and in good condition. Assemble the product on the open flat carton or a rug to protect the product and your floor.

  • Page 3: Part List

    Part List Item Components parts list Item Components parts list Tool needed (not included) Item Components parts list Item Components parts list Item Components parts list...

  • Page 4: Assembly Instruction

    Assembly Instruction 1. Attach board (B,C,D,E,F) to the front board (A) with cam screws (V1) and wooden dowels (V4). Turn the cam locks(on B&C) clockwise to secure.
  • Page 5 2. Attach back board (G) to the drawer with wooden dowels (V4).
  • Page 6 3. Attach back panel (G) to the drawer with screws (V14, V5).
  • Page 7 4. Attach Left & Right side board (H,I) to the middle boards (J,K) with screws (V2), cam lock(V3) and wooden dowels (V4),then turn cam lock(V3) clockwise to secure.
  • Page 8 5. Place the assembled center part onto the top board(O) first with screws(V2)and cam lock(V3) Attach main side board (M & L) to the top board (O) with screws (V2),cam lock(V3) and wooden dowels (V4). Turn the CAM lock(V3) clockwise to secure. Lock...
  • Page 9 6, Attach thin back, board (Q, P) to the TV cabinet body.
  • Page 10 x 16 7. Attach bottom board (N) to the TV cabinet body with screws (V15)and wooden dowel(V4). Attach feet (V7) to the bottom board (N) with screws (V13). Attach wood bar (V8) to the bottom board (N) with screws (V14). After the feet are assembled, turn the whole unit over and make it stand upright.
  • Page 11 V11 x 8 8. Place the hinge(V6) onto the aluminum frame of the door(R)with screws(V12) and then fix the door(R) onto the TV cabinet with screws(V11). - 11-...
  • Page 12 V17 x 8 V9 x 4 V10 x 8 9. Tear the protection skin off top panel and stick the anti-sliding mat (v17) onto the top panel as the drawing shows. Place glass (U) on the TV cabinet top.Place glass shelf(S) on the shelf pins(V9) at desired height.Place wood shelf(T) on the shelf pins(V10) at desired height.
  • Page 13 10. Place drawer in the TV cabinet and tear protective skin off the TV cabinet, now that you have completed assembly. - 13 -...
  • Page 14 Product Warranty: Atlantic Inc., warrants to the original purchaser that its products are free from defect in materials or workmanship. If after inspection, we find that the product was defective in materials or workmanship, we shall repair or replace the product at our discretion. This warranty does not cover accidental damage, misuse, improper care or alteration and excludes claims for incidental or consequential loss.
