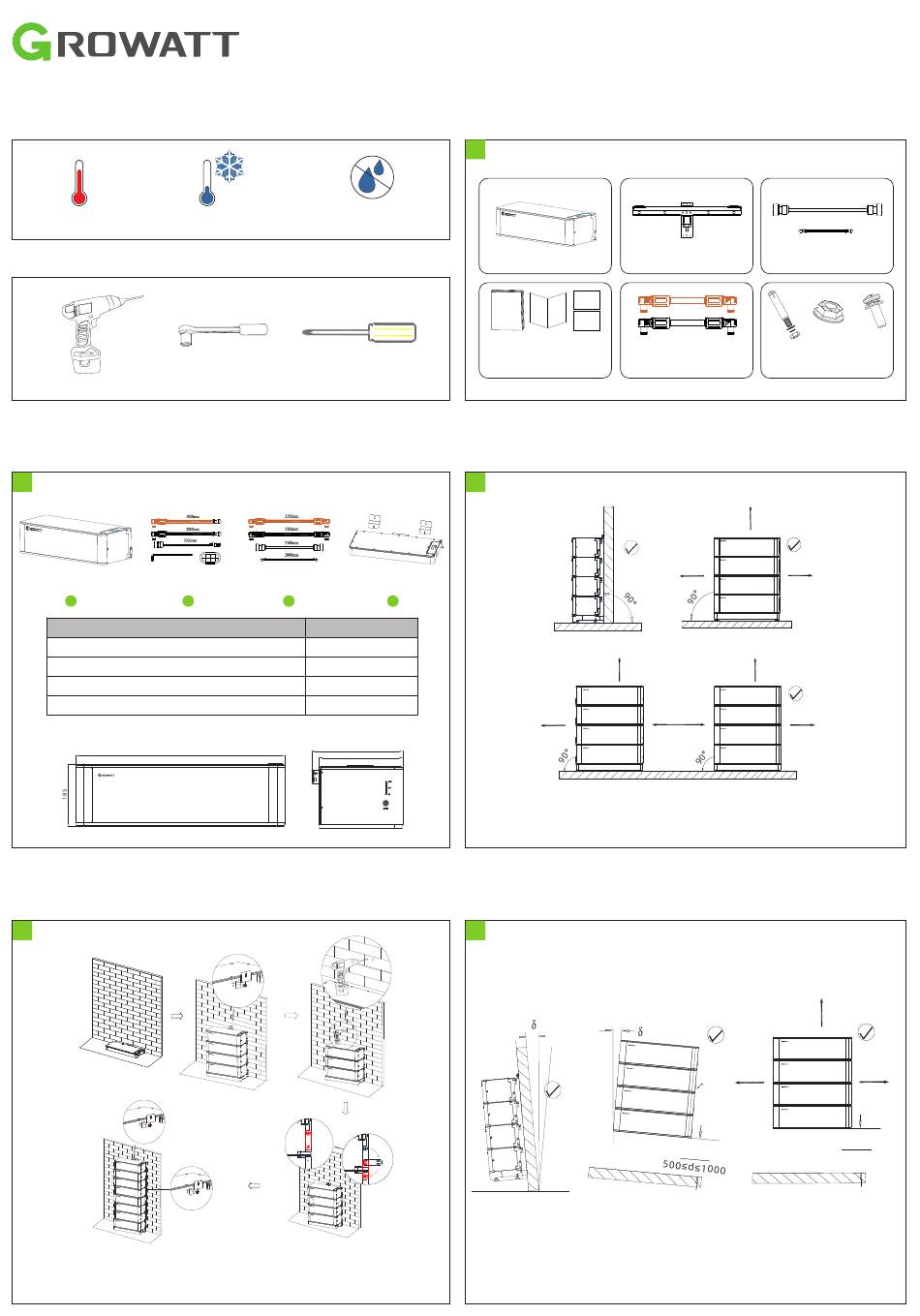

Growatt ARK 2.5L-A2 Quick Installation Manual

Growatt ARK 2.5L-A2 Quick Installation Manual

Hide thumbs Also See for ARK 2.5L-A2:

Advertisement

Quick Links

Installation environment
Max.+50℃
Min.-10℃
Installation tools
1- 2
Check accessories
ARK 2.5L-A2
ARK 2.5L-A2
Cable To PCS
A
Installation Method
Standard Wall-Mounted Installation
Standard floor installation
Wall-Mounted Battery system stacked in two line
Floor installation battery system stacked in two line
System size
650
2-2
Installation Procedure
Note: The safety part needs to be installed at the top battery, however, once the
number of the battery pack is higher than 7, one more safety part should be
installed in the middle battery which is shown the last step. Avoid drilling
holes in the water pipes and cables buried in the wall.
ARK 2.5L-A2
Quick Installation Manual
RH.+5%~+95%
ARK 2.5L-A2
ARK 2.5L-A2 Base
Parallel Cable
B
C
Compound Mode
A+B
A+B+D
A+B+C
A+B+C+D*2
283
260
1. Check
1-1
Check Packing List
ARK 2.5L-A2
Operation manual
Quick installation
manual
Ouick installation Manual X1
Operation Manual X1
Warranty Card X1
Certification X1
2. Floor installation with base
2-1
Installation Location Requirements
D
≥300mm
1. lf more than 4 batteries are used, base mounting is recommended.
2. For floor installation with base, the maximum stack number of the battery is ten.
But if the battery number is greater than six, we recommend stacking two stacks.
3. Wall-Mounted Installation Process
3-1
Installation Location Requirements
-5°≤
≤5°
Wall
Note: The number of wall-mount installations should not exceed four.Please make
sure that the weight capacity of wall should exceed 150kg.
Wall Hangers X1
Warranty Card
Certification
Positive parallel power line X1
Negative parallel power line X1
Wall
≥300mm
≥300mm
Ground
Ground
≥300mm
≥300mm
500≤d≤600mm
Ground
≤5°
≥300mm
Ground
Parallel communication line X1
Ground wire X1
M6 explosive screw X2
M6 flange nut X1
M4x10 Combination screw X2
≥300mm
≥300mm
≥300mm
≥300mm
500≤d≤1000
Ground
