5.0 Installation

5.1. Device Placement

When selecting the right place for device, please consider following:
Put the device on smooth, horizontal and stable place.

Leave enough space beyond the device for normal air circulation, min. 10 cm.

Leave enough space around the device, for easy access and maintenance.

Avoid locations subject to shocks and vibrations.

Avoid locations subject to frequent power fluctuations or power losses, it may affect shaker performance.

NOTE: There has to be easy access to the shaker control panel and main plug in case of emergency.

5.2. Attaching the Power Cord

First connect the main power cord to the shaker then connect the plug end of the cord to a grounded
wall socket. Avoid lines on which powerful electric motors, refrigerators and similar devices are
connected.
Be careful when you plug the cord to a grounded wall socket.

Do not touch the plug with wet hands.

Do not pull the plug by the cord.


5.3. Mounting Platform

Mount the accessory platform by firmly inserting the four platform mounting pins into the four rubber
grommet points on the shaker.

6.0 Operating Instructions

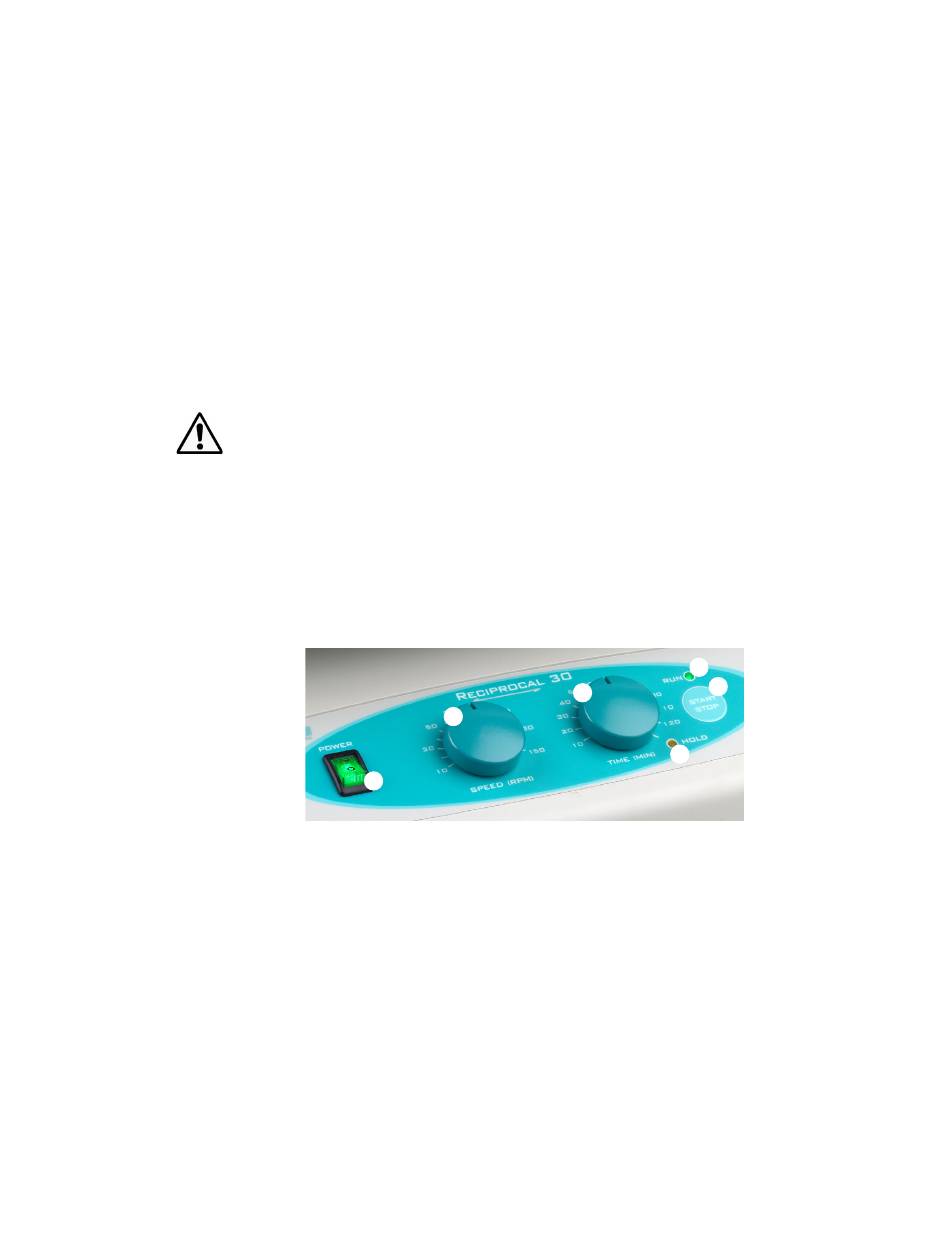

6.1. Control Panel

1
1. POWER switch – to turn the shaker ON (power switch illuminates) or OFF.
2. SPEED potentiometer – to set the shaker speed.
3. TIME potentiometer – to set the timed operation.
4. HOLD potentiometer – yellow light illuminates when the shaker is set to HOLD (continuous operation).
5. START/STOP button – to START or STOP the shaking operation.
6. RUN – green light illuminates when the shaker is running.
NOTE: The speed can be adjusted at any time during shaker operation. The time, however, can not be
changed while the shaker is in motion. To change the time press the STOP button first, allow the shaker
platform to come to a full stop and set the time value again. Restart the shaker.
3
2
4
5
6
