5.0 Installation

5.1 Unpacking
Before starting the installation, carefully examine the shaker for possible damage or missing parts.
Open the box and carefully remove the padding. Check that the shaker has not been visibly damaged during transportation. Keep

the packing material until you ensure that the shaker works properly.
Carefully lift the device out of the box.

Be sure that the following information is included on the serial label located on the back of the unit: serial number, catalog number,

electrical rating.
Check that the power cord plug has a pin configuration that matches a wall socket according to the local standard.

Should any kind of damage have occurred during transportation, contact the carrier immediately. The carrier is responsible for
shipping damage.
5.2 Selecting the Location
Put the shaker on a horizontal, leveled, and stable surface.

Leave enough space around the shaker for normal air circulation (4 in./10 cm minimum).

Leave enough space around the shaker for easy access and maintenance.

Avoid locations subject to shocks and vibrations.

Avoid locations subject to frequent power fluctuations or power losses, as this may affect performance.

Select a location that is dry and not subject to drafts or moving air from heating or air conditioning vents or air blown by other
equipment. Plug the unit into a properly grounded outlet.
5.3 Attaching the Power Cord
Connect the main power cord to the shaker, and then connect the plug end of the cord to a grounded wall socket. Avoid lines to which
powerful electric motors, refrigerators, and similar devices are connected.
Be careful when you plug the cord to a grounded wall socket. Do not touch the plug with wet hands. Do not pull the
plug by the cord.
5.4. Installing Platform
Mount the accessory platform by firmly inserting the 4 platform mounting pins into the 4 rubber grommet points on the shaker.

6.0 Operating Instructions

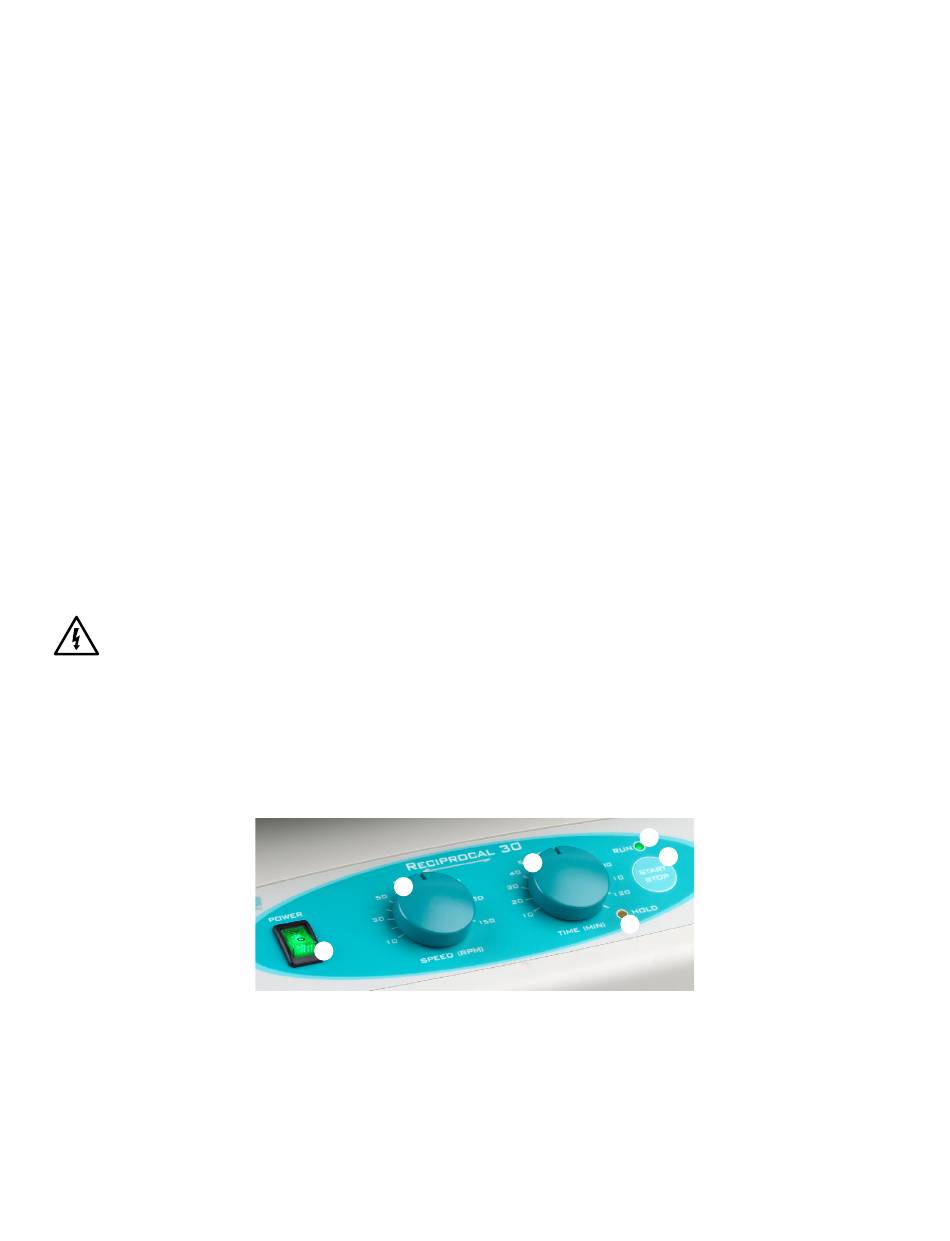

6.1. Control Panel
1. POWER switch: Turns the shaker ON (power switch illuminates) or OFF
2. SPEED potentiometer: Sets the shaker speed
3. TIME potentiometer: Sets the timed operation
4. HOLD potentiometer: Yellow light illuminates when the shaker is set to HOLD (continuous operation)
5. START/STOP button: Starts or stops the shaking operation
6. RUN: Green light illuminates when the shaker is running
NOTE: The speed can be adjusted at any time during shaker operation. The time, however, cannot be changed while the shaker is in motion. To
change the time, press the STOP button first, allow the shaker platform to come to a full stop, and set the time value again. Restart the shaker.
