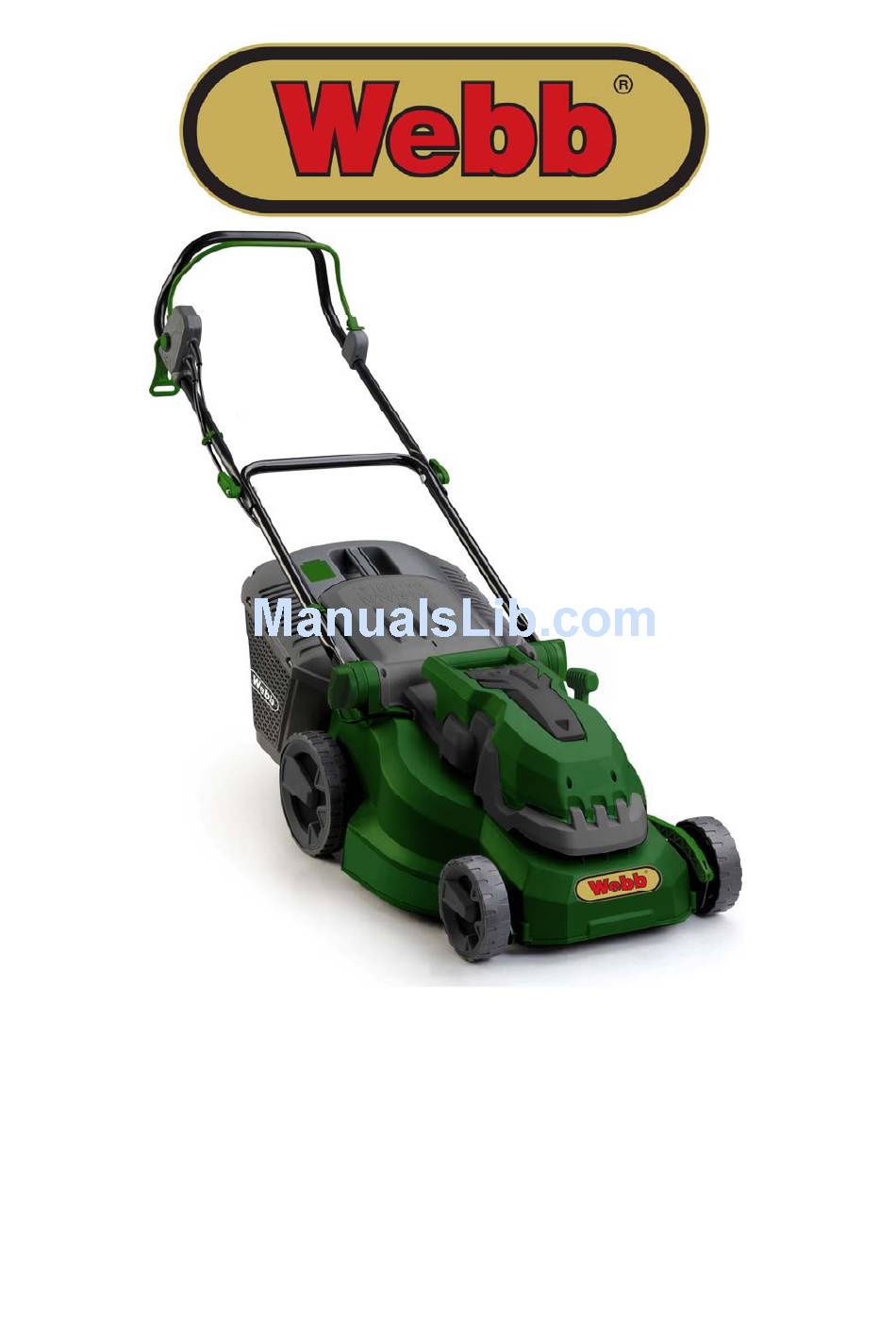

- Page 1 OPERATOR’S MANUAL AND PARTS LIST ELECTRIC LAWNMOWER - WEER38 Spares & Support: 01793 333212 www.webblawnmower.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 22/02/2013 v1...
-
Page 4: Package Content List
1400W ELECTRIC LAWNMOWER WEER38 WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions. 1 DESCRIPTION (FIG. 1) Handle Grassbag Brake lever... -
Page 5: General Safety Warnings
Always keep the electrical supply cable away from the blades - be aware of its position at all times. Never operate the machine in the rain or in damp or wet conditions. Moisture creates an electrical shock hazard. Class II - The machine is double insulated; an earthing wire is therefore not necessary. - Page 6 Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
-
Page 7: Additional Safety Instructions For Lawn Mowers
5 ADDITIONAL SAFETY INSTRUCTIONS FOR LAWN MOWERS WARNING: Failure to obey a safety warning can result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury. Save instruction manuals and review frequently to ensure safe operation and to instruct others who may use this tool. - Page 8 Do not tilt the machine when starting or switching on the motor, except if the machine has to be tilted for starting in long grass. In this case, do not tilt it more than absolutely necessary and tilt only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the machine to the ground.
-
Page 9: Operation
Upper handle Slide the cable restraint hook (5) onto the upper handle (7). Position the upper handle over the lower handle and align the holes. Push the securing bolts through the holes. Screw on the securing knobs and hand tighten. Hold the cable against the lower handle and pull gently upwards. - Page 10 To stop the mower simply, release the brake lever and the mower will stop. ATTENTION : After switching off, the cutting blade will go on turning for a few seconds, make sure the blade has come to a complete standstill. CAUTION: Do not rapidly switch off and on.
-
Page 11: Technical Data
8 TECHNICAL DATA 500090 Model 220~240 V / 50 Hz Power supply 1400 W Power consumption 3000 rpm No load speed 380mm Cutting width (mowing circle) : Cutting heights 20-70mm (6 Positions) 35 L Grass box capacity 9 NOISE Noise values measured according to relevant standard. (K=3) 81.6dB(A) Acoustic pressure level LpA Acoustic power level LwA... -
Page 12: Troubleshooting
Important: Wear safety gloves when handling the blade. At the end of the season, perform a general inspection of your lawnmower and remove any grass and dirt which may have accumulated. At the start of each season, check the condition of the blade, the connection cable and all electrical connections. - Page 13 12 ENVIRONMENT Should your machine need replacement after extended use, do not put it in the domestic waste but dispose of it in an environmentally safe way. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
-
Page 14: Parts Diagram And List
PARTS DIAGRAM AND LIST... - Page 15 Item No Part No Description Item No Part No Description WE110 1 Switch Box Assembly WE110 34 Self Tapping Screw 5*16 WE110 1 1 Switch Box Top Cover WE110 35 Front Wheel Trim WE110 1 2 Switch Button WE110 36 Front Wheel WE110 1 3 Switch Spring...
- Page 16 GUARANTEE This product is guaranteed against manufacturing defects for a period of 24 months. This does not cover the product where the fault is due to misuse, abuse, use in contravention of the instructions, or where the product has been the subject of unauthorised modifications or alterations.
- Page 17 We, Importer Handy Distribution SN3 4NS Declare that the product Designation: 1400w Electric Lawnmower Model: WEER38 Complies with the following directives: 2006/42/EC - Machinery Directive 2006/95/EC – Low Voltage Directive 2004/108/EC - Electromagnetic Compatibility Directive 2000/14/EC, Annex VI - Noise Emission in the Environment by Equipment for Use Outdoors Directive.
