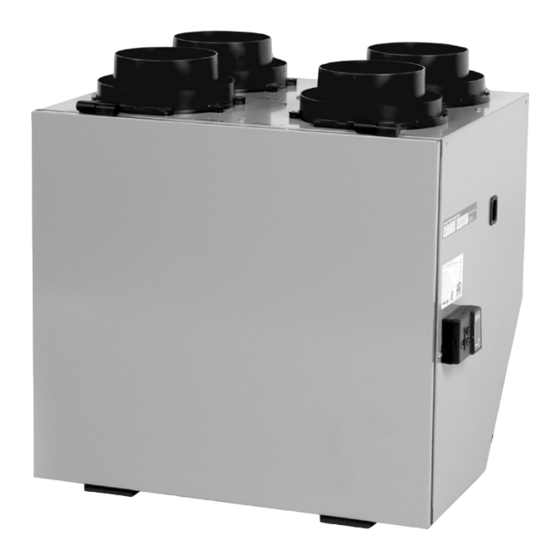

- Page 1 HR SERIES HEAT RECOVERY VENTILATOR (HRV) Home Owners Guide Models HR100V, HR160H & HR220H RESIDENTIAL USE ONLY HR100V HR160H & HR220H READ AND SAVE THIS GUIDE PP0924 09/2013...
- Page 2 ABOUT S&P S&P is the world's leading producer of air movement products. S&P manufactures and supplies fans, dampers, louvers and recovery ventilators (ERVs & HRVs). These products are used in various industries including residential, commercial, industrial and institutional buildings. At S&P we take pride in the fact that our customers receive only the very highest levels of customer service and care. Our internal and external technical and customer service teams are on-hand to provide professional and experienced application advice to enable our customers to apply our products to their particular ventilation and air movement applications.
- Page 3 VENTILATION SYSTEM A. Fresh air from outside B. Exhaust air to outside C. Exhaust air from home D. Fresh air to home HR100V HR160H & HR220H • Fresh Air from Outside Port (A): Inlet for fresh outdoor air. • Exhaust Air to Outside Port (B): Outlet for exhausting stale, humid & contaminated air to the outdoors after transferring its heat to the recovery core.
- Page 4 3. OPERATING THE DUOTROL SYSTEM Our DuotrolTM System is state of the art technology simplified for quick and easy operation. The Duotrol™ System serves two purposes: 1. Acts as a mode selector in run mode (OFF, CONT & INTER) • OFF: When the selector switch is in the OFF position the ventilation system will not come on even if there’s a request for ventilation from any remote controllers.
- Page 5 Dehumidistat to select the humidity level • Comes complete with Relative Humidity Sensor Dial. • Compatible with HR100V, HR160H and HR220H RELATIVE HUMIDITY SENSOR DIAL (OFF/60%/COMFORT ZONE/30%): • Overrides the ventilation system to high speed once the level of humidity is above the set point.
- Page 6 • Comes complete soft touch button and integrated LED indicator light. • Compatible with HR100V, HR160H and HR220H HRT-3 PUSH BUTTON TIMER (20/40/60 MINUTES HIGH SPEED EXCHANGE) • Press the button once the LED comes on then release, this activates the ventilation system to high speed for 20 minutes.
- Page 7 Once a year or as needed, clean the interior of the unit (walls and drain pan) with a mild and non abrasive soap. It is recommended to use products that are environmentally-friendly. Servicing HR100V Servicing HR160H or HR220H 1. Slide out the filters.
- Page 8 WARRANTY 7. WARRANTY S&P warrants the polypropylene heat recovery core against defects in material and workmanship for a lifetime from the date of original installation; and all other components to be free from defects in material and workmanship for five (5) years. Any units or parts which prove to be defective and are reported during the warranty period will be replaced at our option when returned to our factory, transportation prepaid.
