Summary of Contents for S&P HTB-2500

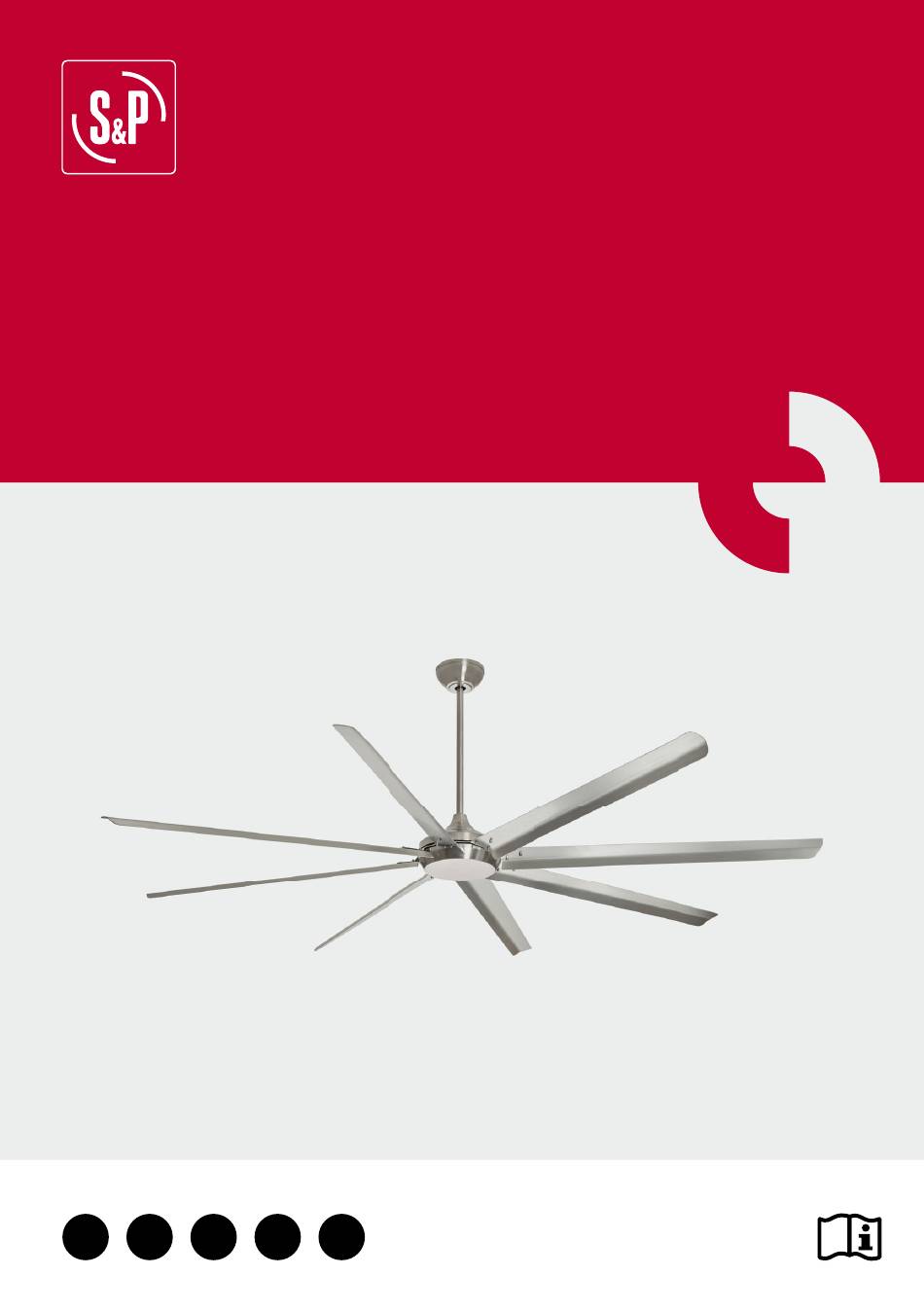

- Page 1 HTB-2500 HTB-3000...
-
Page 4: Receiving The Product
ENGLISH LARGE-DIAMETER CEILING FAN MODELS: HTB-2500 / HTB-3000 INSTALLATION AND INSTRUCTION MANUAL WARNING: Read all the instructions carefully before using to ensure proper installation and safe operation of the large-diameter ceiling fan. The manufacturer, agent/distributor and retailer where this product was purchased are in no way responsible for any damage or losses caused by the purchase and/or installation of this product. -
Page 5: Safety Warnings
3. SAFETY WARNINGS WARNING: SOLER & PALAU Sistemas de Ventilación S.L.U. (S&P) shall not be held liable for any damages to the machine and/or persons caused by failure to comply with the Safety Warnings in this manual. WARNING: It is very important to follow and respect all the safety warnings below. Failure to do so may lead to personal injury and/or damage to the machine. -
Page 6: Assembly And Installation
• The large-diameter HTB models are class I devices, so the grounding cable in the per- manent installation must be connected to the device. • Before connecting the device to the power grid, make sure the power is switched off and has the specifi... - Page 7 1. (Figure 2) Extract the safety clip (1) and lower pin (2) from the pole. Unscrew the upper screws (3-4) to remove the pin upper ball joint. This will make it easier to pass the cables through the inside of the pole. 2.
-
Page 8: Start-Up And Use
6. BLADE ASSEMBLY (Figure 7) WARNING: Assembling the blades requires at least two people. WARNING: If you are going to install more than one ceiling fan, make sure you don’t use the blades from one fan on another, EVEN IF THEY ARE THE SAME MODEL. They are weighed at the factory precisely to ensure the fan is properly balanced. -
Page 9: Maintenance
• Point the remote control towards the upper decorative cover to control the ceiling fan. • Press the button to switch the device on/off. The system uses radio frequency, so the remote should work up to 15 meters away (new batteries). •... -
Page 10: Technical Service
11. TECHNICAL SERVICE The extensive network of Offi cial S&P Service Centres ensures proper technical service. If any anomalies are detected in the device, please contact one of our Offi cial S&P Service Cen- tres, where it will be dealt with properly. If the device is handled by anyone other than the Offi...
