O W N E R ' S M A N U A L

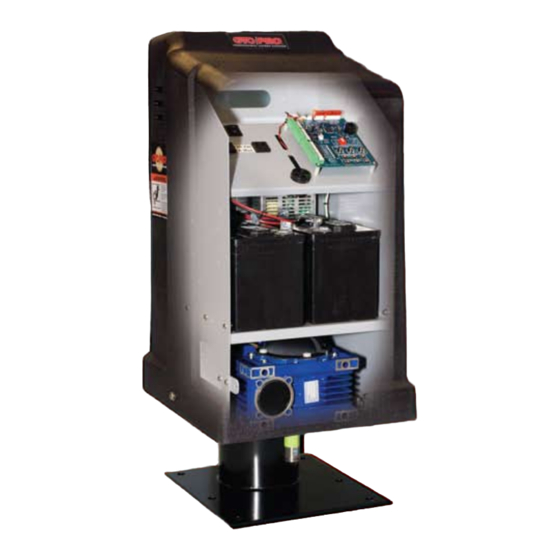

GP-SW100
Commercial Duty Swing Gate Operator
With Inherent UPS Battery Back-up System
TWO 12VDC, U1, 230A BATTERIES ARE REQUIRED BUT NOT INCLUDED.
DO NOT Install This Operator Without Safety Edges and Photo Beams!
APPROPRIATE ENTRY/EXIT DEVICES WILL BE REQUIRED - SEE YOUR DEALER.
This product meets and exceeds the requirements of UL 325 gate operator safety standards.
US
For more information on GTO/PRO's full line of automatic gate openers and access controls visit our website at www.gtopro.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GTO GP-SW100
Summary of Contents for GTO GP-SW100
- Page 1 APPROPRIATE ENTRY/EXIT DEVICES WILL BE REQUIRED - SEE YOUR DEALER. This product meets and exceeds the requirements of UL 325 gate operator safety standards. For more information on GTO/PRO’s full line of automatic gate openers and access controls visit our website at www.gtopro.com...
- Page 2 • This gate operator may produce a high level of force. Stay clear of the unit while it is operating and exercise caution at all times. the gp-sW100 automatic gate operators are intended for use with vehicular swing gates. the operators can be used in class i, ii, iii, and iv applications. vehicular gate operator class categories residential vehicular gate operator–class i: A vehicular gate operator (or system) intended for use...
-
Page 3: Table Of Contents
Table of Contents Gate Operator Class Categories ...Inside Cover Metric Conversion Chart ...Inside Cover Safety Instructions for the GP-SW100 Swing Gate Operators ...1 Important Safety Instructions for the System Designer...1 Important Safety Instructions for the Installer ...2 Important Safety Instructions Specific to Secondary Means of Protection Against Entrapment ...3 Important Safety Instructions for the Consumer/End User ...4 Required Safety Precautions for Gates ...5 Warning Labels ...6 Technical Specifications ...7 Parts Identification ...8 Installing the Gate Operator ...9 Preparation of the Gate ...9 Operator Installation Overview ...9 Using the Mounting Template ... 10 Mounting Template (not to scale) ... -
Page 4: Safety Instructions For The Gp-Sw100 Swing Gate Operators
Because gto automatic gate operators are only part of the total gate operating system, it is the responsibility of the designer, installer, and purchaser to ensure the total system is safe for its intended use. Bypassing safety devices or neglecting to use safety devices with the gate operator is Not acceptable. -
Page 5: Important Safety Instructions For The Installer
Important Safety Instructions ImPOrtant Safety InStrUCtIOnS For the Installer WarNiNg–to reduce the risk of injury or death: i. Before installation reaD aND FolloW all iNstructioNs. 2. Verify this operator is proper for the type and size of gate, and its frequency of use. Make sure that the gate has been properly installed and swing freely in both directions. Repair or replace all worn or damaged gate hardware prior to installation. A freely moving gate will require less force to operate and will enhance the performance of the operator and safety devices used with the system. -
Page 6: Important Safety Instructions Specific To Secondary Means Of Protection Against Entrapment
Warning signs (see page 6) shall be placed adjacent to the controls. C. No other activation device shall be connected. The GP-SW100 operators are designed to stop and reverse for 2 seconds when the gate comes in contact with an obstruction or when an object activates the non-contact sensors. Additionally, these operators are equipped with an audio entrapment alarm which will function if the unit obstructs twice while opening or closing. -
Page 7: Important Safety Instructions For The Consumer/End User
It is your responsibility to make sure that the installer posted warning signs on both sides of your gate. If any of these signs or warning decals become damaged, illegible or missing, replace them immediately. Contact your installer or GTO for replacements. 9. Verify that electric safety edge sensors or photoelectric sensors have been installed (see page 5). These safety devices should be tested monthly. -
Page 8: Required Safety Precautions For Gates
GTO’s internal obstruction settings, even when properly adjusted, may not be sensitive enough to prevent bodily injury. For this reason, safety devices such as safety edges and photo beams MUST be installed. Furthermore, a walk-through gate must be installed if pedestrian traffic is expected near the gate. We recommend the GTO Bulldog Pedestrian Gate Lock (available as an accessory) for controlled access. -
Page 9: Warning Labels
2. Disconnect opener arm from gate brackets. 3. Pull opener open. Disconnect operator ONLY when the power switch is OFF and the gate is NOT moving. GTO, Inc. Tallahassee, Florida USA Product identi cation and manual operation instruction label (1) installed on cover. -
Page 10: Technical Specifications
Absolute minimum depth 30 in (76.2 cm) below ground level. Operational Temperature: • In colder climates (ambient temperatures less than 10 degrees) GTO recommends the use of a thermostatically controlled heating source (ceramic heating strips, etc.) on the batteries and gearbox assembly. Styles, types, and power requirements of heating devices will vary by climate and region. -
Page 11: Parts Identification
27 in (69 cm) 33 in (84 cm) BASE 18 in (46 cm) NOTE: GTO receiver (RB709U), batteries (12vdc, U1, 230A minimum) not included. Must order separately. Gate Bracket Reducer /Operator Arm HARDWARE BAG - R4027 ½" – 2¾" Bolt (2) 17 in (42 cm) 23¾... -
Page 12: Installing The Gate Operator
Installing the Gate Operator this unit must only be installed by an experienced technician. preparation of the gate Before installing the GTO/PRO swing gate operator, make sure: • the gate is properly installed. • the gate is plumb, level, and moves freely. • the gate does not bind or drag on the ground. overview of a single gate operator installation The diagram below is an example of a single swing gate installation with required safety features. -
Page 13: Using The Mounting Template
Using the Mounting Template The mounting template (see insert) is designed to simplify mounting the operator. It provides the installer with the proper locations for running power and accessory wiring conduits. The template is also marked with the correct distance between the operator mounting holes and shows the installer how to position the operator for the correct clearance between the housing and the gate. -
Page 14: Mounting Template (Not To Scale)
Mounting Template (NOT TO SCALE) -
Page 15: Removing The Operator Housing
Removing the Operator Housing Before you can gain access to the operator frame and its mounting holes, the housing will have to be removed from the operator. 1. Remove the (2) 3/8” allen bolts and (2) m8 washers from the operator housing (this hardware is located on each side of the housing). Lift the housing off the operator and set it aside. Mounting the Operator 1. Lift the operator and align its mounting holes over the 3/8” diameter concrete mounting anchors. -
Page 16: Connecting Power To The Operator
Connecting Power to the Operator 1. Turn the breaker power switch off before connecting AC power. Have a licensed electrician run 115 Vac wiring into the Field Wiring Connection Compartment. The 115 Vac line will power the gate operator system. The circuit must be protected with a 15 A main disconnect breaker (not provided). NOTE: Power and wiring connections MUST be performed by a licensed electrician in accordance with NEC (National Electric Code) and local codes. -
Page 17: Connecting The Gate Arm Assembly
Gate Arm Connection Overview Center point of gate hinge to center of gate bracket pin (approximately) 50” Closed Gate NOTE: All work on operator requires disconnecting AC power and batteries ! Right Mounted Arm Center point of gate hinge 5°-10° Opened Gate IMPORTANT: Be sure the operator housing will not be hit by a fully open gate and that... -
Page 18: Connecting Gate Arm To The Gate
Connecting the Gate Arm to the Gate 1. install the key into the output shaft. (Fig. 1) 2. Fit the end of the reducer arm onto the output shaft as shown and tighten the bolts. (Fig. 2) Turn the power on. set Dip switch 1 to designate the operator arm as left or right (Fig. -
Page 19: Control Board Description
<<< STOP CUT TO USE 3 BUTTON TEST SWITCHES STATION CLOSE GTO Inc. Tallahassee, FL SX4000 Logic Board Rev. E leD indicator - To Show ‘Running’ Relay is on leD indicator - To Show ‘Lock’ Relay is on leD indicators - To Show Dual Link Communication test switches - To Control Gate Operation limit adjustment control switches left and right stall Force adjustment... -
Page 20: Setting The Limits
RUN 2 OPEN CLOSE STOP GTO Inc. Tallahassee, FL SX4000 Logic Board Rev. E button on the board and be prepared to press the set liMit is on. At this time, release the button on the board and be prepared to press the set liMit is on. -
Page 21: Stall Force And Auto-Close Adjustments
Stall Force and Auto-Close Adjustments stall Force adjustment: IMPORTANT: For safety reasons, the at the factory. The obstruction sensitivity is independently adjustable for each direction of travel. Upon sensing an obstruction, the gate will stop and reverse direction for approximately 2 seconds. 1. Turning the potentiometer clockwise (toward the MAX position) increases the amount of force the operator applies to an obstruction. -
Page 22: Dip Switch Settings
The second operator is detected by the master. • If the above conditions are not met, the board will default to single mode operation. If DIP #3 is OFF (Master) EXIT • OFF: Master mode operation in dual gate installation if slave GTO LOOP DETECTORS ALARM setting is detected from the other board. • ON: Slave mode operation in dual gate installation if master setting is detected from the other board. Control board is non- functional if master operator is not detected. + ACC. PWR. -
Page 23: Input Connections
Circuit common (reference for all accessory inputs) • Three (3) terminals to provide extra common connection point. terminal. LOCK N.C. LOCK LOCK COM LOCK N.O. RUNNIN RUN 1 RUN 2 CLOSED CLOSED 1 CLOSED 2 CYCLE SAFETY SHADOW LOOP OPEN EDGE CLOSE EDGE OPEN CLOSE STOP GTO Inc SX4000 L... -
Page 24: Accessory Terminal Connections
12v power supply can be used for loop detectors, receivers, photo beams, keypads and other accessories. V – LOOP LOOP GTO Loop Detector LOOP Siren-Activated Entry Device GTO Universal Receiver Refer to Universal Receiver manual for additional connections Edge Sensor NOTE: Connections are for typical applications. -
Page 25: Output Connections
Output Connections Note: • Maximum rating for all relay outputs are 24Vac/dc, 1 Amp. • All relay outputs are dry contact (no voltage) switching. • All outputs have corresponding LED indicator for diagnostic purposes. The corresponding LED indicator will be lit when its relay is activated. closeD 1 closeD 2: At closed limit relay output. • These two (2) terminals are shorted when gate is at the closed limit. ruN 1 2: Gate moving relay output. • These two (2) terminals are shorted whenever the gate is moving/running. locK coM locK N.o. -
Page 26: Accessory Power Supply
12Vdc @ 300 mA (.3A) maximum power supply for additional accessories. • If you lose power to your accessories, the accessories are protected by a poly-fuse. Disconnect accessories and allow poly-fuse to cool down for 2 minutes before reconnecting. 12Vdc @ 300 mA Power Supply EXIT SHADOW GTO LOOP DETECTORS ALARM +12Vdc + ACC. PWR. 12VDC - 300ma DUAL DUAL LINK LINK LINK COM... -
Page 27: Prison Mode Operation And Wiring A 3-Button Station
EDGE CUT TO USE CUT TO USE 3 BUTTON 3 BUTTON CLOSE STATION STATION EDGE GTO Inc. Tallahassee, FL SX4000 Logic Board Rev. E OPEN CLOSE STOP CUT TO USE 3 BUTTON STATION Wiring a 3-button station NOTE: The W1 Jumper must be cut in order to use a 3-button station. -
Page 28: Reinstalling The Operator Housing
Reinstalling the Operator Housing Check to make sure the safety edges, photoelectric beams, warning signs, and pedestrian gate (if necessary) are installed (see pages 5-6) before fastening the housing to the operator. lower the operator housing into position over the operator. The installation is complete. Test the operator, accessories, and safety devices for correct function. Read and fill out the iNstallatioN checKlist on the back cover of this manual. -
Page 29: Installing A Dual System
Installing a Dual Gate Operator System IMPORTANT: With a dual gate system certain control board settings and connections are required on the MASTER unit only and some are required on both the MASTER and the SLAVE unit. The list below gives an overview. •... -
Page 30: Setting Dual Gate Sequence
Setting Dual Gate Sequence GP-SW100 operators come from the factory with the #2 DIP switches set to OFF. Dip switches must be changed to accommodate dual gate operation. The information below shows the proper settings for a dual gate application. <<< >>> SIMUL DELAY SLAVE MASTER SECURE SAFE STALL FORCE ADJUST <<< >>> Master DIP Switch Settings IMPORTANT: The #2 Switch Settings are set on the MASTER Operator only. -
Page 32: Maintenance
Maintenance WARNING: ALWAYS TURN OPERATOR OFF AND DISCONNECT AC POWER BEFORE ADJUSTING OR SERVICING IT. Maintenance Schedule: • Test the operator, accessories, and safety devices monthly. • Service the gate operator, accessories, and safety devices regularly. Maintenance Checklist • Test the safety edges to make sure the gate responds. • Check the obstruction settings (both open and close modes) see page 18. • Check for wear on all moving parts, and tighten bolts as necessary. • Check the gearbox for any sign of oil leakage. If the gearbox is leaking, call the GTO Service Department for assistance. • Check hinges on the gate and lubricate if needed. • Check for loose or corroded wires. • Make sure the warning signs (see page 5) are installed. -
Page 33: Troubleshooting Guide
TroubleShooting Guide WARNING: ALWAYS TURN OPERATOR OFF AND DISCONNECT GP-SW100 Audible Feedback S Y M P T O M D I A G N O S I S One beep every 5 seconds There is no AC power present. when the gate is in motion. - Page 34 GP-SW100 Visual Feedback S Y M P T O M D I A G N O S I S cycle leD oN brightly Cycle terminal shorted to Com Status Light flashes safety leD oN Safety terminal shorted to Com brightly Status Light...
- Page 35 S Y M P T O M D I A G N O S I S close edge leD oN Close Edge terminal shorted to brightly Status Light flashes open leD oN brightly Open terminal shorted to Com Status Light flashes close leD oN brightly Close terminal shorted to Com Status Light flashes stop leD oN brightly...
-
Page 36: Warranty And Repair Service
Please retain these records. After the warranty period, GTO or one of its authorized service centers will make any necessary repairs for a nominal fee. Call GTO at (850) 575-0176 for more information. -
Page 37: Installation Checklist
____ Safety instructions were reviewed with the customer. ____ The iMportaNt saFetY iNstructioNs manual was given to the customer. ____ Customer was asked to fill out customer support card and mail it to GTO, Inc. ____ Customer was asked to retain all receipts (receipts provide proof of warranty). ____ Customer was asked to retain iMportaNt saFetY iNstructioNs, etc. for future reference.
