- Page 1 Optical Fiber Instrument/OTDR TB-6XX User's Guide...
-
Page 2: Precautions For Use

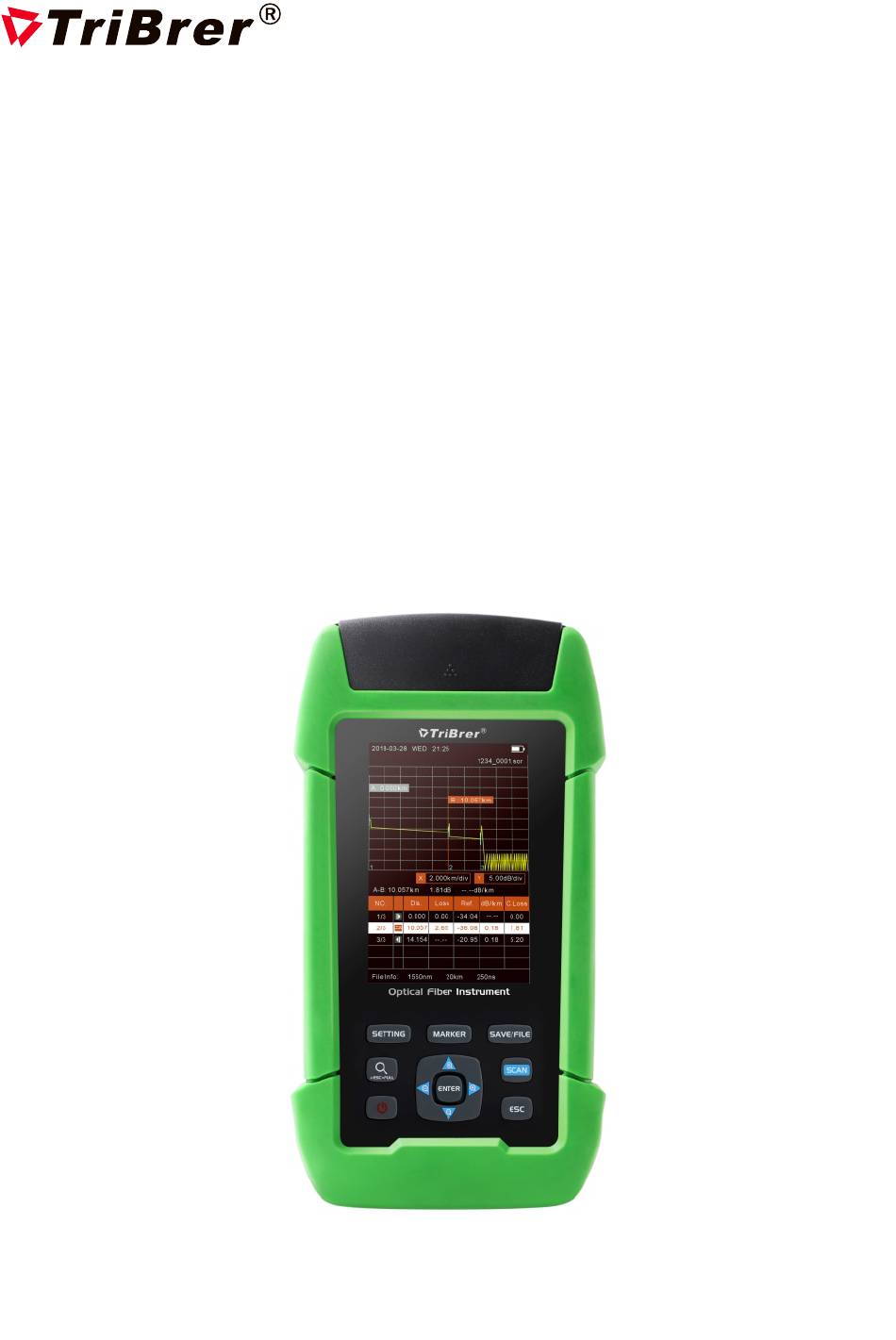

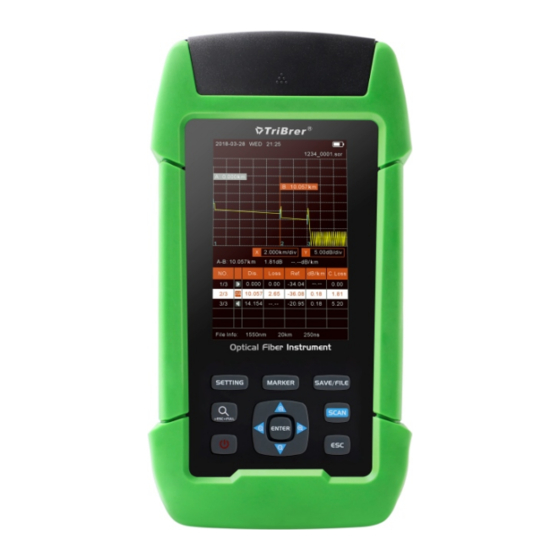

WARNING WARNING Any undefined change or modification of this manual will deprive you of the right to operate the equipment. To reduce the risk of fire or electric shock, do not expose the equipment to rain or humidity. To prevent electric shock, please do not open the shell, and it must be repaired by qualified personnel. - Page 3 Host 2 3 4 OTDR TF(Micro SD) card slot Charge indicator Reset key USB interface 3.2 inch LCD Function buttons...
- Page 4 Buttons SET TING MARKER SAVE/FILE SCAN +ESC=FULL ENTER Setting:In OTDR and iOLA interface, press to set up. Zoom control:Operate with direction and ESC key for waveform. Power:Long press to turn on, or choose to turn off. Direction:Select up, down, left, and right. Marker:Switch cursor in OTDR interface.
- Page 5 Main Menu Enter the main menu after booting. There are up to five modules, select by the direction buttons, and then press the " " button to enter the corresponding ENTER functional. Title Bar Date and time Bluetooth(optional) TF card 2018-03-28 WED 21:25 Battery(charging) Highlight when the function module is selected...
- Page 6 OTDR Select Mini OTDR module in the main menu,and press to enter the ENTER OTDR interface. Mini OTDR 2018-03-28 WED 21:25 File name 1234_0001.sor A 0.000km Waveform region B 10.057km Scale The distance 5.00dB/div 2.000km/div and attenuation A-B: 10.057km 1.81dB --.--dB/km Dis.
- Page 7 OTDR Waveform Zoom in/out The current waveform can be scaled after the measurement or the files is opened. Vertical magnification Horizontal reduction +ESC=FULL +ESC=FULL Horizontal magnification Vertical reduction +ESC=FULL +ESC=FULL Full-screen display +ESC=FULL Vertical scaling 2018-03-28 WED 21:25 1234_0001.sor A 0.000km B 10.057km A 0.000km B 10.057km...
- Page 8 OTDR Measure Press the " SCAN " button to run real-time measurement. If the Real time analyse function is activated, press again to run average measurement,the progress bar is displayed at the bottom.Press the " " button in OTDR SET TING Interface,Scan type can be switched from "Real time"...
-
Page 9: Event List
OTDR Event List The event list shows up to 5 events, which can be viewed by scrolling up and down. 2018-03-28 WED 21:25 1234_0001.sor A 0.000km B 10.057km Five event types: Optic fiber start Reflection event Attenuation event 2.000km/div 5.00dB/div A-B: 10.057km 1.81dB --.--dB/km... -
Page 10: Measure Settings
OTDR Measure Settings Press the " " button to pop up the setting box, and the switch setting will ENTER switch directly. Multi-digit setting frame, after positioning the cursor with the left and right buttons, select up and down. 2018-03-28 WED 21:25 2018-03-28 WED 21:25 Measure Settings Measure Settings... - Page 11 OTDR Save After finishing measurement, press the " " button to save the file and SAVE/FILE the keyboard will pop up. If the Auto Name function is turned on, the file name is automatically generated when saving. 2018-03-28 WED 21:25 1234_0001.sor A 0.000km B 10.057km...
- Page 12 OTDR Files When there is no measurement, press the " SAVE/FILE " button to enter the file list. Press the " " button to open the folder or file, and press the " " button to pop ENTER up the operation item. The waveform thumbnail is displayed at the bottom. 2018-03-28 WED 21:25 2018-03-28 WED 21:25 2018-03-28 WED 21:25...
- Page 13 iOLA(optional) Select iOLA module in the main menu,and press to enter the iOLA ENTER interface,then press to run measurement,the progress bar is displayed SCAN in the middle .The measurement end interface is shown as follows. iOLA 2018-03-28 WED 21:25 2018-03-28 WED 21:25 1310nm Pass or not Total loss...
- Page 14 iOLA Measure Settings(optional) Press " " in the iOLA interface to enter the iOLA parameter setting SET TING interface,and press the " " button to pop up the setting box,Multi-digit setting ENTER frame, after positioning the cursor with the left and right buttons, select up and down. 2018-03-28 WED 21:25 2018-03-28 WED 21:25 iOLA Settings...
- Page 15 iOLA Save(optional) After finishing measurement, press the " " button to save the file and SAVE/FILE the keyboard will pop up. If the Auto Name function is turned on, the file name is auto matically generated when saving. 2018-03-28 WED 21:25 2018-03-28 WED 21:25 1310nm Pass or not...
- Page 16 iOLA Files(optional) When there is no measurement, press the " " button to enter the file list. SAVE/FILE Press the " " button to open the folder or file, and press the " " button to pop ENTER up the operation item. 2018-03-28 WED 21:25 2018-03-28 WED 21:25 2018-03-28 WED 21:25...
- Page 17 OPM / VFL Select OPM/VFL module in the main menu,and press to enter the ENTER OPM/VFL interface. Note:when the wavelength recognition function is on and the carrier wavelength is displayed,the button cannot successfully switch the wavelength (return after switching for 2 seconds) OPM/VFL 2018-03-28 WED 21:25 Press the...
- Page 18 Select System module in the main menu,and press to enter the ENTER System interface.When the Change modulation is selected as 1kHz+Blink or 2kHz+Blink ,if the light source is turnded on,the light source flag will flicker. TB600 is a single wavelength,and Switching wavelength on the interface will be gray. 2018-03-28 WED 21:25 2018-03-28 WED 21:25 Wavelength:1310nm...
- Page 19 System Select System module in the main menu,and press to enter the ENTER System interface. Auto Power Off: Set time of automatic off or cancel this System Function. Auto Name: Name automatically when file is saving, can cancel this function. Brightness: Set brightness of LCD,settings range from 10 to 100.
