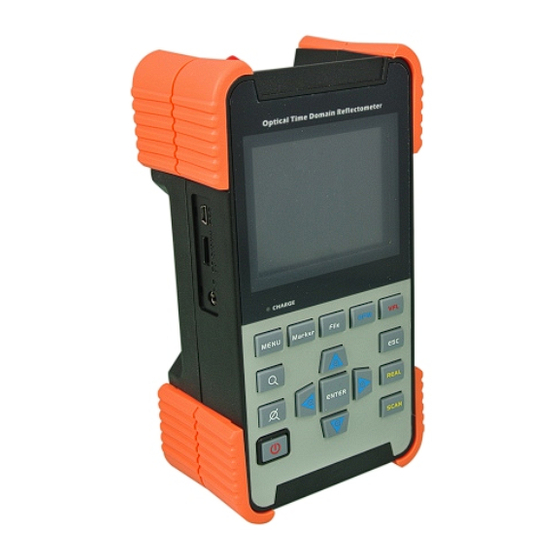

TriBrer OTDR AOR-50 User Manual

Optical time domain reflectometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Optical Time Domain Reflectometer
USER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OTDR AOR-50 and is the answer not in the manual?

Questions and answers

Related Manuals for TriBrer OTDR AOR-50

Summary of Contents for TriBrer OTDR AOR-50

  • Page 1 Optical Time Domain Reflectometer USER'S GUIDE...
  • Page 3 WARNING WARNING You are cautioned that changes or modifications not espressly approved in this document could void yout authority to operate this equipment. VISIBLE LASER RADIATION VISIBLE LASER RADIATION INVISIBLE LASER RADIATION INVISIBLE LASER RADIATION AVOD EYE OR SKIN EXPOSURE AVOD EYE OR SKIN EXPOSURE AVOD EYE OR SKIN EXPOSURE AVOD EYE OR SKIN EXPOSURE...
  • Page 4 Standard Lithium battery Power adapter Host(with TF card) Carrying bag USB cable...
  • Page 5 Description USB interface TF(micro SD) card slot Power adapter socket Charge indicator Menu button Cursor select button File operation button OPM fast enter button VFL control button Zoom control button Full screen button Power button Cancel button Real-time measurement button Average measurement button Up button Right button...
  • Page 6 On/off Button is used to turn on/off the device. Keep pressing it for 2 seconds Optical Time Domain Reflectometer Optical Time Domain Reflectometer to turn on device. Short press it again to turn off the device. 2012-01-01 21:25 Press button to SCAN start measuring.

  • Page 7: Measurement Interface

    Measurement Interface 2012-01-01 21:25 Date and time Power 2012-01-01 21:25 40.00 There are 10x10 grids in waveform region. 174622_0001.sor 174622_0001.sor 36.00 A:0.000Km File name 32.00 Horizontal grids mean distance, vertical grids B:0.000Km 28.00 24.00 mean dB value. As shown in figure, 20.00 Waveform region 16.00...

  • Page 8: Real-Time And Average Measurement

    Real-time and average measurement Real-time measurement can quickly judge basic faults of optical fiber. Press Optical Time Domain Reflectometer Optical Time Domain Reflectometer button to start real-time measuring. During measuring, you can change REAL range, zoom in or zoom out . Press button again or button to REAL...

  • Page 9: Event List

    Event list After measurement or open a waveform in memory, there is Dis. Loss Ref. dB/Km C.Loss 0.000 0.00 -28.00 --.-- 0.00 event list on the bottom of waveform interface. Press Event list on main interface ENTER button to show the whole event list. Six types of events as followed: Event List Dis.

  • Page 10: Real-Time Measurement Tips

    Real-time measurement tips The device supports user to change measurement range during real-time Optical Time Domain Reflectometer Optical Time Domain Reflectometer measurement. Start Real-time measuring function and press Up or Down button to increase or decrease the range. And it also supports to change the cursor position and zoom in/out waveform in realtime, which means you can zoom in partial waveform while measuring to judge the network fault.
  • Page 11 Cusor selection and waveform zoom in/out This device has two cursors, A and B. 2012-01-01 21:25 40.00 36.00 Default distance is 0m, activated cursor A:0.000Km Optical Time Domain Reflectometer Optical Time Domain Reflectometer 32.00 B:0.583Km 28.00 turned to bright red. Press 24.00 Marker 20.00...
  • Page 12 Menu There are four pages of menu File Measure Settings System Settings About Open... Format SD Card... System Settings File Measure Settings About which used to configure parameters. System Settings Optical Time Domain Reflectometer Optical Time Domain Reflectometer 1550 Wavelength Scan Mode Manual Under waveform interface, press...

  • Page 13: Menu-File Menu

    Menu-File menu Measure Settings System Settings File About File Measure Settings System Settings About Open... Format SD Card... 20140615 2014-06-15 20140617 2014-06-17 20140618 2014-06-18 20140619 2014-06-19 20140622 2014-06-22 Warnning Press key MENU to switch to the menu tag. Enter File menu, there are two options, Are you sure to format the SD card? "open"...
  • Page 14 Menu-File menu Select "open" option, there are folders. The folder name is the date of the file saved, which is generated automatically by system. Files measured in the same day will be stored in the same folder. Folder can only be delete, but not rename.
  • Page 15 Menu-File menu Select one folder to display all files inside. Press Measure settings System settings About File Up or Down button to select one file and press button to display it in main interface. The 133210_0001.sor 2014-06-18 ENTER 133210_0002.sor 2014-06-18 file information at the bottom is the file's main 133210_0003.sor 2014-06-18...
  • Page 16 Menu-File menu When finish measuring an optic fiber, press Save File Name: button to enter storage interface. File 140950 Default filename is hour/minute/second of first time Caps back Save storage. Press Up/Down/Left/Right button to select Rename alphabets, digits and symbols on soft keyboard. You File Name: can input 23 alphabets at most.

  • Page 17: Menu-Measure Settings

    Menu-Measure settings Measure settings menu is used to set relative measurement data, which File Measure Settings System Settings About the judgment of events list is based on. Wrong setting might leads to wrong or Wavelength 1550 missing events. Scan Mode Manual Wavelength---wavelength of laser .

  • Page 18: Menu-System Settings

    Menu-System settings System settings menu is used to set the device's basic functions. File Measure Settings System Settings About Auto Power Off--- set time of automatic off or cancel this function. Auto Power Off 10min Auto Name Auto Name---name automatically when file is saving, can cancel this Optical Dectector function.
  • Page 19 Menu- About This menu is version details about device's configuration of File Measure Settings System Settings About hardware and software. CPU number is used to generate upgrading Firmware Version: TEN1A20V35_MAIN_V1.2 TEN1A20V35_ANALOG_V0.3 code, which should inform distributor or factory before software TEN1A20V35_TFT_V1.1 upgrading.
  • Page 20 OPM function Press button on device with OPM function to enter Optical Power Meter OPM measurement interface. Press button to start ENTER Power +00.00 measuring. Press button to change the wavelength. The 000.00 meter's six calibration wavelengths are: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm.
  • Page 21 This device has VFL function, the output power is about 1nW. 2012-01-01 21:25 40.00 Press button to control red laser on-flashing-off. When 36.00 A:0.000Km 32.00 B:0.000Km Laser is on, the prompt icon will occur at upper right corner. 28.00 24.00 20.00 16.00 12.00...

  • Page 22: Tf Card And Usb Communication

    TF card and USB communication All measured waveforms are stored in TF card. Using mini USB cable can store data to PC. PC will show a new disk icon, data inside. According to filename, user can store or recall files. 2012-01-01 21:25 40.00...

  • Page 23: User Upgrading

    User upgrading When device needs upgrading, user does not need to send it Measure Settings System Settings About File Firmware Version: TEN1A20V35_MAIN_V1.2 back to factory. Prepare materials before upgrading as followed: TEN1A20V35_ANALOG_V0.3 TEN1A20V35_TFT_V1.1 1. CPU ID Firmware Version: SEN1A20V35_MAIN_V1.2.0 Optical Time Domain Reflectometer Optical Time Domain Reflectometer 2.
  • Page 24 Charging This device has lithium batteries inside, and can only use the 2012-01-01 21:25 40.00 power adapter from factory to charge it. Insert the adapter to device, 36.00 A:0.000Km 32.00 B:0.000Km and finish charging in 8-10 hours. Red charge indicator means 28.00 24.00 charging, while green means finish.

  • Page 25: Detail Parameters

    Detail parameters Dynamic range Type S: 22/24dB, Type A: 26/28dB, Type B: 30dB/32dB, Type C: 34dB/36dB Optic fiber type SM optical fiber Wavelength 1310nm 20nm,1550nm 20nm Optic fiber connector FC/PC (SC/PC Optional) 3.5 inch colour LCD Test range TypeS:80Km TypeA:100Km Type B:120Km Type C:140Km 10ns~10us...
  • Page 28 P/N40331 Rev.1023...
