  • Page 1 USER'S GUIDE OPTICAL POWER METER English...

  • Page 2: Precautions For Use

    WARNING WARNING You are cautioned that changes or modifications not espressly approved in this document could void yout authority to operate this equipment. To reduce the risk of fire or electric shock,do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet.
  • Page 3 Standard Optical Multi Meter >2s PERM MENU SELECT AUTOTEST SAVE ENTER Host USER'S GUIDE OPTICAL POWER METER English Manual...
  • Page 4 Description Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER 1- Optical Power Meter connector 2- Visual Fault Locator connector( optional) 3- Color LCD 4- REF key/Up key 5- Visual Fault Locator key Select key/Right key 7- Menu key 8- USB charging port 9- Power key 10- AutoTest key/Left key...

  • Page 5: Installing The Batteries

    Installing the batteries 1.Press and push up 2.Open the lid 3.Installing the batteries 4.Push down and press...

  • Page 6: Power On/Off, Auto Power Off

    Power on/off, auto power off Auto Power 17:57 1550nm AUTO -57.02 1.72 nW ---- Tone Freq Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER >2s PERM Press key to turn on the device. Press it again for 2 seconds to shut down the device. Device has power saving function.
  • Page 7 OPM- Measurement 17:57 1550nm AUTO -57.02 1.72 nW ---- Tone Freq Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER After turning on the device, it shows the measurement interface of optical power meter. In the middle of screen, shows the measuring power value. Press key can select the wavelength.
  • Page 8 OPM- REF set 17:57 1550nm AUTO 7.02 1.72 nW ---- Tone Freq REF Value -50.0 dBm Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER At the main measurement interface, short press key, it will show you the reference value you stored before, and the unit will turn to dB.
  • Page 9 OPM- Data reading Data 1550nm 17:57 ---- Tone Freq 1550nm AUTO REF Value -50.0 dBm 7.02 (*---020 NO.0019 1.72 nW ---- Tone Freq REF Value -50.0 dBm Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER At the main measurement interface, short press key , it can read the stored data.
  • Page 10 OPM- Auto Test 17:57 1310nm 1490nm 17:57 1550nm 1550nm AUTO 7.02 1625nm 1.72 nW ---- Tone Freq REF Value -50.0 dBm Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER At the main measurement interface, short press key , it can enter to auto test mode for AUTOTEST single wavelength.
  • Page 11 OPM- Data storage 17:57 1550nm AUTO 7.02 Save Data 1.72 nW Name -------- 17:57 Remain 980Files 1550nm AUTO ---- Tone Freq 7.02 REF Value -50.0 dBm 1.72 nW ---- Tone Freq REF Value -50.0 dBm Optical Multi Meter >2s PERM MENU AUTOTEST SELECT...

  • Page 12: Setting Menu

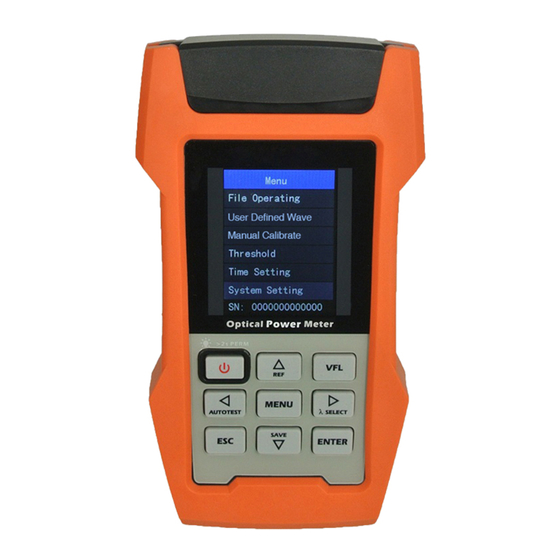

    Setting menu Menu File Operating User Defined Wave Manual Calibrate Threshold Time Setting System Setting SN:1290100012020 Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER Short press key, device will enter to MENU setting menu. Setting menu includes File Operating, Optional Wave, Hand calibrate, Threshold, Time Setting and System Setting.
  • Page 13 Setting menu- File Operating File Operating Single wave Multiple wave Menu File Operating User Defined Wave open delete Manual Calibrate Threshold Time Setting System Setting SN:1290100012020 Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER Move the cursor to File Operating and press key to enter.
  • Page 14 Setting menu- User Defined Wave User Defined Wave Menu File Operating User Defined Wave Manual Calibrate Factory Reset Threshold Time Setting System Setting SN:1290100012020 Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER Move the cursor to User Defined Wave and press key to enter.
  • Page 15 Setting menu- Manual Calibrate Manual Calibrate 850nm +0.00dBm 1300nm +0.00dBm 1310nm +0.00dBm 1490nm +0.00dBm Menu 1550nm +0.00dBm File Operating 1625nm +0.00dBm User Defined Wave Factory Reset Manual Calibrate Threshold Time Setting System Setting SN:1290100012020 Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE...
  • Page 16 Setting menu- Threshold Threshold Menu File Operating User Defined Wave Manual Calibrate Threshold Time Setting System Setting SN:1290100012020 Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER Move the cursor to Threshold and press ENTER keyto enter. You can set threshold for six wavelengths, include 850/1300/1310/1490/1550/1625nm.
  • Page 17 Setting menu- Time Setting Time Setting Year 2016 Month Hour Menu Minute File Operating Second User Defined Wave Factory Reset Manual Calibrate Threshold Time Setting System Setting SN:1290100012020 Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER Move the cursor to Time Setting and press key to enter.
  • Page 18 Setting menu- System Setting System Setting Tone Detec Wave Detec Sound Auto-named Menu Backlight 30 sec File Operating Auto Off 10 min User Defined Wave Factory Reset Manual Calibrate Threshold Time Setting System Setting SN:1290100012020 Optical Multi Meter >2s PERM MENU AUTOTEST SELECT...
  • Page 19 Setting menu- System Setting System Setting Tone Detec Wave Detec Sound Auto-named Menu Backlight 30 sec File Operating Auto Off 10 min Optional Wave Factory Reset Hand Calibrate Threshold Time Setting System Setting SN:1290100012020 Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE...

  • Page 20: Visual Fault Locator

    Visual Fault Locator 17:57 1550nm AUTO -57.02 1.72 nW ---- Tone Freq Optical Multi Meter >2s PERM >2s PERM MENU AUTOTEST SELECT SAVE ENTER The device builds in a VFL module. In the main measurement interface or auto test interface, press key to shift the conditions: ON->...

  • Page 21: Battery Energy Detect

    Battery energy detect 17:57 1550nm AUTO -57.02 1.72 nW ---- Tone Freq Optical Multi Meter >2s PERM MENU AUTOTEST SELECT SAVE ENTER Battery energy detect has five levels: remain 80%---100% remain 60%---80% remain 40%---60% remain 20%---40% remain less than 20% if the energy is too low, the beep will be on and the device will auto power off.

  • Page 22: Battery Charge

    Battery charge First you must use the rechargeable batteries. When the energy is less than 20%, you should charge the batteries. Long time low energy, the life of the batteries will be short. The device is charged throw an USB cable. For the batteries of 1300mAh, do not charge for more than 10 hours.
  • Page 23 Detailed Wave response 700~1700nm range Calibrate 850nm,1300nm,1310nm,1490nm,1550nm,1625nm wavelength Measurement T:-70dB~+10dB(850nm@-60dB~+10dB ) range C:-50dB~+26dB(850nm@-40dB~+26dB ) 0.01dB(>60dBm), 0.1dB(<60dBm) Resolution Accuracy 0.2dB Linearity Detector type InGaAs (optional) (optional) Output 650nm 20nm wavelength Output power 1mW or 10mW Glint Others Others Battery supply AA*3 Battery lifetime >50H Chargeable...
