Summary of Contents for TriBrer AOP100T
- Page 1 USER'S GUIDE Optical Power Meter English English...
- Page 2 WARNING WARNING You are cautioned that changes or modifications not espressly approved in this document could void yout authority to operate this equipment. To reduce the risk of fire or electric shock,do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet.
- Page 3 Standard PERM 1KHz Save GLINT Optical Power Meter >2s PERM Save Unit Host USER'S GUIDE Handheld measuring instrument Optical power meter English English Optical laser source English English Optical mulit meter English English FC/SC Adapter Manual Optional Chargeing...

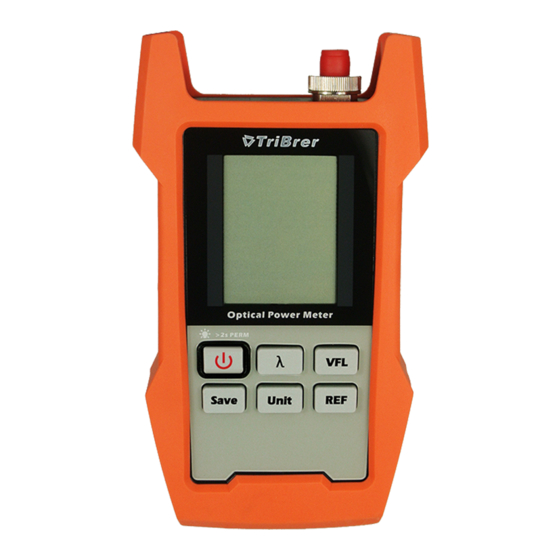

- Page 4 Description PERM 1KHz Save GLINT Optical Power Meter >2s PERM Save Unit 1-VFL connector 2-OPM connector 3-LCD 4-OPM wavelength shift key 5-VFL on/off key 6-Reference set/check key 7-Unit shift key 8-USB Power key Backlight key 10-Data Save/Recall key...
-
Page 5: Set Batteries
Set batteries 1.Press and push down 2.Open the lid 3.Place the batteries 4.Place the batteries... -
Page 6: Power On/Off, Auto Power Off
Power on/off, auto power off PERM PERM 1KHz Save GLINT Optical Power Meter >2s PERM Save Unit Press the Power key to turn on the device with auto power off. After 10 minutes no key pressed,it will auto power off. Press Power key for 2 seconds when turn on the device, the auto power off will be cancelled,and the LCD will show... - Page 7 Backlight PERM 1KHz Save GLINT Optical Power Meter >2s PERM >2s PERM Save Unit When the device power on, press the power key to turn on or turn off the backlight.
-
Page 8: Wavelength Select
Wavelength select PERM 1KHz Save GLINT Optical Power Meter >2s PERM Save Unit When testing, you must select the right wavelength. Press the key for shifting the wavelength from: 850nm,1300nm,1310nm,1490nm,1550nm,1625nm... -
Page 9: Unit Select
Unit select PERM 1KHz Save GLINT Optical Power Meter >2s PERM Save Unit Unit Press the key for shifting the unit from:dBm, Unit mW/uW, dB. mW/uW: 1mW=1000uW, 1uW=1000nW dBm: (dBm)=10*log(mW) dB: (dB)=dBm-REF... - Page 10 Reference PERM 1KHz Save GLINT Optical Power Meter >2s PERM Save Unit Press key to check the reference value you set last time. And if keep pressing for 2 seconds, you can store the current dBm as a new reference value. Then it automatically shift to dB.
-
Page 11: Data Storage
Data Storage Save PERM 1KHz Save GLINT Optical Power Meter >2s PERM Save Unit Save When in testing interface, user can press SAVE to the History interface . And press the SAVE key for 2 seconds to save current value... -
Page 12: Visual Fault Locator (Optional)
Visual Fault Locator (optional) PERM 1KHz GLINT Save GLINT Optical Power Meter >2s PERM Save Unit The device can build in a optional VFL module, press the VFL key to shift the conditions: on-> glint->off... -
Page 13: Battery Energy Detect
Battery energy detect PERM 1KHz Save GLINT Optical Power Meter >2s PERM Save Unit Remain80%---100% Remain40%---80% Remain20%---40% Remain less than20% If the energy is too low, the beep will be on and device will auto power off. -
Page 14: Battery Charge
Battery charge First you must use the rechargeable batteries. When the energy is less than 20%, you should charge the batteries. Long time low energy, the life of the batteries will be short. When charging, the battery indication on LCD will flash. - Page 15 Detailed Measuring range -60~+18dBm -50~+26dBm -70~+10dBm Calibrated 850nm,1300nm,1310nm,1490nm,1550nm,1625nm wavelengths +6~-60dBm(0.01dB) +16~-50dBm(0.01dB) +26~-40dBm(0.01dB) Resolution -60~-70dBm(0.1dB) -50~-60dBm(0.1dB) -40~-50dBm(0.1dB) Accuracy 0.2dB Linearity PD Type InGaAs FC(or SC) & 2.5mm UPP Connector Data Storage VFL part Wavelength 650nm Output power 1mW or 10mW Connector 2.5mm UPP Auto power off Power supply...
