- Page 1 WATER BAIN-MARIE User Guide DBM-311-S-W 220V 50/60Hz DBM-411-S-W 220V 50/60Hz DBM-511-S-W 220V 50/60Hz AS OF DECEMBER 19, 2016...
-
Page 2: Table Of Contents
Drop-In Elegance INDEX ENGLISH SPECIFICATION CHART/ TABLA DE ESPECIFICACIONES ...................3 MACHINE INTRODUCTION ............................3 Introduction to machine & models ......................3 Important safety information ........................3 INSTALLATION ................................4 General information ..........................4 Transport, handling, unpacking, location ....................4 Intended use and restrictions ........................5 Manufacturer’s identification label description ..................5 Installation and assembly ........................6 CONNECTIONS. -
Page 3: Specification Chart/ Tabla De Especificaciones

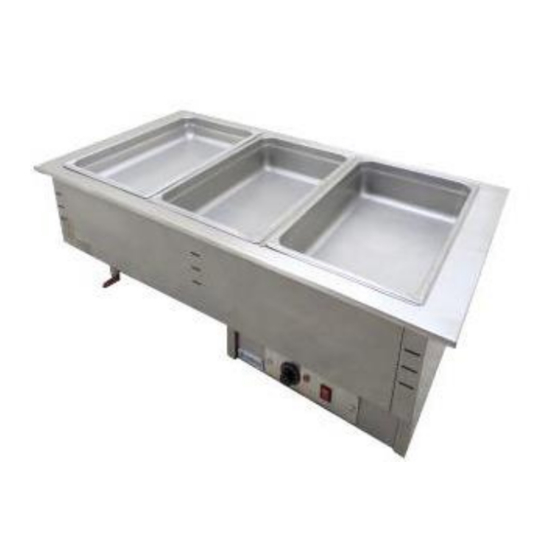

MACHINE INTRODUCTION Introduction to machine & models Edenox Water Bain-Marie bring the perfect combination of quality materials and modern design. Polished stainless steel and elegant design work together under a eficently refigeration system. These self contained units keep a constant airflow, maintaining all the flavor and texture of your fresh dishes. -
Page 4: Installation
Drop-In Elegance INSTALLATION 2.1 General information 2.2 Transport, handling, unpacking, location. 2.3 Intended use and restrictions. 2.4 Manufacturer’s identification label description. 2.5 Installation and assembly. 2.6 Connections (electric, gas, water) General information You can find in you equipment the following symbols, or stickers to identify some type of warnings or useful information about you. -
Page 5: Intended Use And Restrictions
Drop-In Elegance Intended use and restrictions Featuring the GN containers, the water bain-marie is used to keep and display hot meals that have been prepared beforehand, allowing them to be served later. Before using the water bain-marie, its electrical system needs to be checked for efficiency and reliability. After work, switch off the device by setting the control on the panel to 0 (Figure 1, ‘C’), and then disconnect the power cable of the water bain-marie. -
Page 6: Installation And Assembly
Drop-In Elegance Installation and assembly The water bain-marie should installed in the following order: Remove the protective film from all metal surfaces; the bain-marie must be installed in a well ventilated room, under a ventilation hood, if possible; it can be located on a free-standing base or as part of a row consisting of other kitchen devices as well;... -
Page 7: Control Panel Description
Drop-In Elegance The following must always be observed: Do not connect the device to the mains via a socket that is NOT provided with an earthing pin; Do not connect the device to an electrical system that has not been checked for fire safety; ... -
Page 8: 4.2.1 Draining The Unit
Drop-In Elegance If the device is not going to be used for a long time, cover its surfaces, particularly the inner surfaces of the bain-marie chamber, with a thin coat of Vaseline or a preservative that may come into contact with food. -
Page 9: Electric Diagram / Diagrama Electrico
Drop-In Elegance ELECTRIC DIAGRAM / DIAGRAMA ELECTRICO DBM-S-W... - Page 10 PARQUE INDUSTRIAL TRES NACIONES SAN LUÍS POTOSÍ, S.L.P. MÉXICO TELÉFONO PLANTA S.L.P.: + 52 (444) 137 0500 EXT.538 WWW.EDENOX.ES MULTI-SOLUTION MANUFACTURER OF FOODSERVICE EQUIPMENT...
