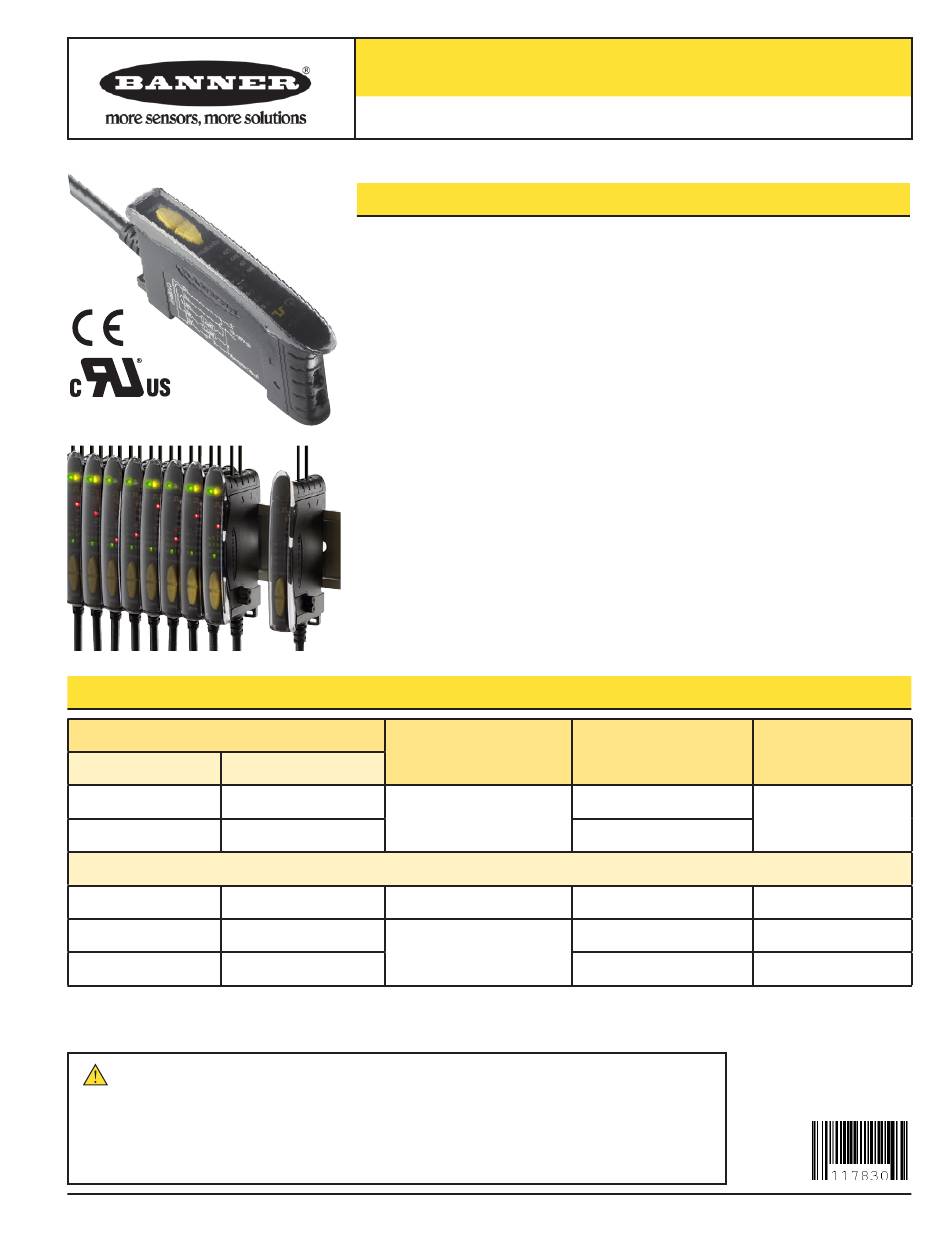

Standard Model
Stack of Models with Bussable Power Feature
Model
Red Beam
D10BFP
D10BFPG
D10BFPQ
D10BFPGQ
D10B5FP
D10B2PFP
D10B2NFP
* 9 m (30') cables are available by adding suffix "W/30" to the model number of any cabled sensor (e.g., D10BFP W/30).
A model with a QD connector requires a mating cordset (see page 12).
NOTE: See page 10 for performance curves.
WARNING . . .
Not To Be Used for Personnel Protection
Never use these products as sensing devices for personnel protection. Doing so could lead to serious injury or death.
These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety applications. A
sensor failure or malfunction can cause either an energized or de-energized sensor output condition. Consult your current Banner
Safety Products catalog for safety products which meet OSHA, ANSI and IEC standards for personnel protection.
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
D10 Expert
Advanced sensor for use with plastic fiber optics
• Easy-to-read 8-segment light bar indicator for teach and signal strength readout, plus
indicators for continuous readout of operating status (user configuration)
• Easy-to-set automatic Expert-style configuration options include Static and Dynamic
TEACH, and Window SET, plus manual adjustment for fine tuning
• Smart gain-control algorithm to maximize performance in low-contrast applications
• Fast 500-microsecond sensing response with improved crosstalk avoidance routine
(for two sensors) in Normal mode
• Selectable high-speed (HS) mode option for 200-microsecond response
• Extreme configuration flexibility via push buttons or a remote input wire
• Easy selection of Light/Dark Operate (LO/DO), 30 ms pulse stretcher (OFF-delay),
and response speed, via push buttons or a remote input wire
• Visible red (660 nm) or visible green (525 nm) sensing beam, depending on model
• Sleek, ultra-slim 10 mm housing, mounts to standard 35 mm DIN rail
• Models with bussable power provide simplified wiring of up to 16 sensors and feature
improved temperature compensation for side-by-side mounting
†
U.S. Patent(s) issued or pending
Description
Green Beam
Standard sensor
Models with Bussable Power
—
—
—
– with Discrete Output and Bargraph Display
™
Features
Models
2 m (6.5') Cable
6-pin Pico-style QD
Main unit
2 m (6.5') Cable
2 m (6.5') Cable
Sub-unit
2 m (6.5') Cable
Cable*
Outputs
Bipolar NPN/PNP
Bipolar NPN/PNP
Single PNP
Single NPN
†
Advertisement
Table of Contents
Related Manuals for Banner D10 Expert
Summary of Contents for Banner D10 Expert
- Page 1 These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety applications. A sensor failure or malfunction can cause either an energized or de-energized sensor output condition. Consult your current Banner Safety Products catalog for safety products which meet OSHA, ANSI and IEC standards for personnel protection.
-
Page 2: Sensor Configuration
D10 Expert™ Discrete Output with Bargraph Display Overview For emitter and receiver port locations, see page 10. The D10 Expert is an easy-to-use, DIN-rail-mountable fiber optic sensor. It provides high- performance sensing in low-contrast applications. Configuration options include SETUP Green Yellow... - Page 3 D10 Expert™ Discrete Output with Bargraph Display Two-Point Static TEACH (Threshold) 2nd Taught 1st Taught Condition Condition Sensor positions • Establishes a single switching threshold threshold midway • Threshold position is adjustable using “+” and “-” buttons (Manual Adjust) between taught conditions...
- Page 4 D10 Expert™ Discrete Output with Bargraph Display Output OFF Output ON Darkest Position Most Light (no signal) adjusted by (saturated Manual Adjust signal) Dynamic TEACH and Adaptive Thresholds Darkest Taught Lightest Taught Condition Condition Sensor positions •...
- Page 5 Sensor positions threshold between taught conditions D10 Expert™ Discrete Output with Bargraph Display Output OFF Output ON Darkest Position Most Light (no signal) adjusted by (saturated Manual Adjust signal) Single-Point Window SET Sensing window size adjusted by Manual Adjust • Sets a single ON condition that extends 12.5% above and below the taught condition Sensor positions •...
- Page 6 ≈10% from the presented condition Output OFF Output ON Output OFF D10 Expert™ Discrete Output with Bargraph Display Darkest Condition Most Light (no signal) Presented (saturated signal) Single-Point Light SET Threshold position adjusted by Manual Adjust • Sets a threshold 6.25% below the taught condition.
- Page 7 6.25% below the presented condition Output OFF Output ON D10 Expert™ Discrete Output with Bargraph Display Darkest Condition Most Light (no signal) Presented (saturated signal) Single-Point Dark SET Threshold position adjusted by Manual Adjust • Sets a threshold 6.25% above the taught condition.
-
Page 8: Setup Mode
D10 Expert™ Discrete Output with Bargraph Display SETUP Mode SETUP mode is used to change sensor output response for: SETUP Status • Light or Dark operate Indicators • 30-millisecond pulse stretcher (OFF-delay), if required. • 200 µs high-speed response Press... -
Page 9: Specifications
D10 Expert™ Discrete Output with Bargraph Display Specifications Standard Sensors Models with Bussable Power 660 nm visible red or 525 nm visible green, 660 nm visible red Sensing Beam depending on model 10 to 30V dc (10% max. ripple) @ less than 45 12 to 30V dc (10% max. -
Page 10: Performance Curves
D10 Expert™ Discrete Output with Bargraph Display Performance Curves Red Beam Models Opposed Mode Diffuse Mode 10000 Performance based on 90% reflectance white test card 1000 1000 1000 1000 1000 D10BFP Opposed Mode PBT66U PBT26U PIT66U fibers PIT26U PIT66U PIT46U fibers... - Page 11 D10 Expert™ Discrete Output with Bargraph Display Dimensions 10.5 ± 0.2 mm (typ.) (0.41") 10.5 ± 0.2 mm (typ.) (0.41") 7.6 mm 35.9 mm 0.30" (1.41") 7.6 mm 35.9 mm 0.30" 9.8 mm (1.41") Mounting Bracket (0.39") (included with some models) 61.3 mm...
- Page 12 (0.36") WARRANTY: Banner Engineering Corp. warrants its products to be free from defects for one year. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture found to be defective at the time it is returned to the factory during the warranty period.
