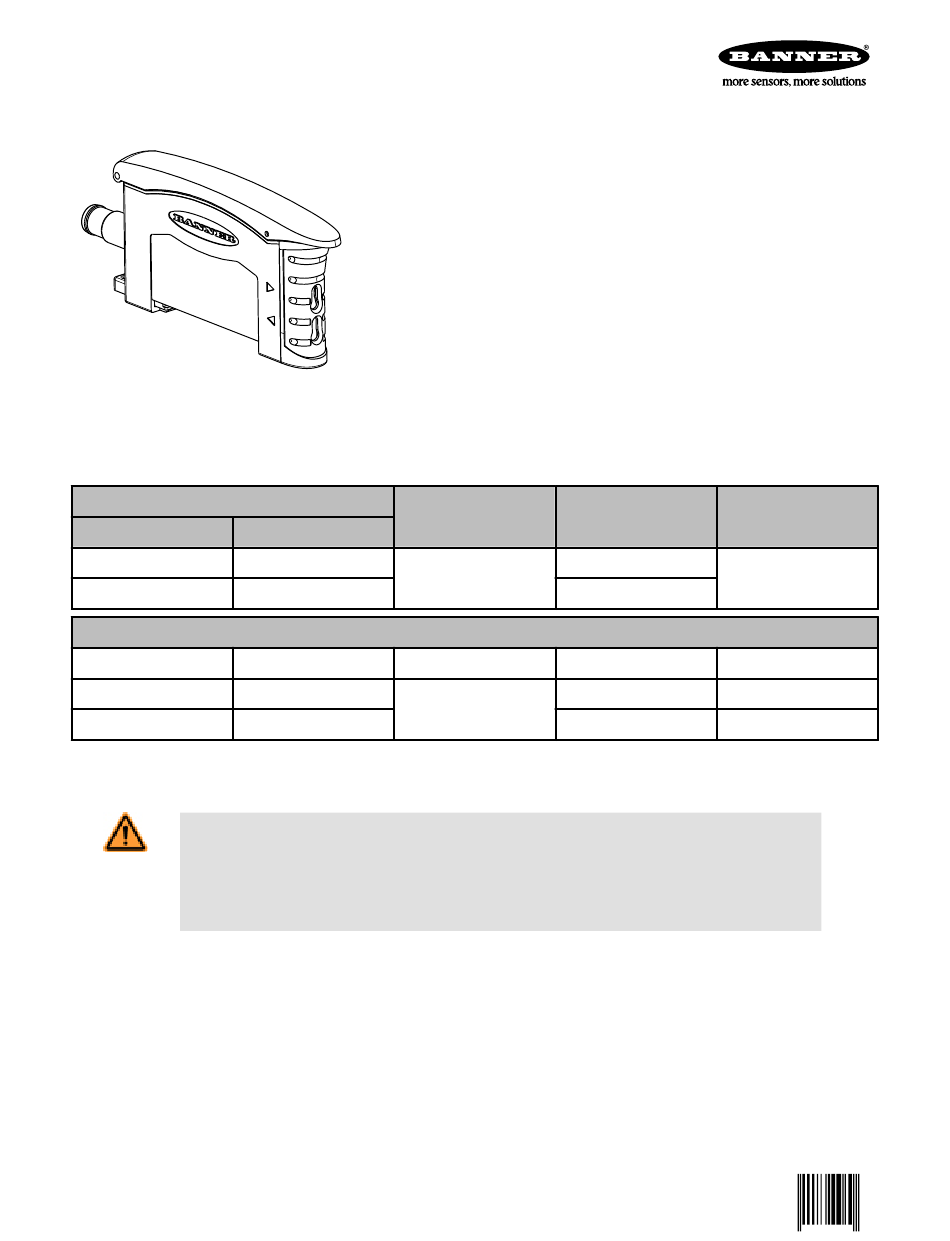

Banner D10 Expert Series Manual

D10 Expert Series with Bar Graph Display and Discrete Output
Advanced sensor with dual displays for use with plastic fiber optics
Models
Model
Red Beam Green Beam
D10BFP D10BFPG
D10BFPQ D10BFPGQ
Models with Bussable Power
D10B5FP
-
D10B2PFP
-
D10B2NFP -
Standard 2 m (6.5 ft) cable models are listed. To order the 9 m (30 ft) cable model, add suffix "W/30" to the cabled model number. For
example, D10xFP W/30. Models with a QD connector require a mating cable. See Accessories.
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to serious
injury or death. This device does not include the self-checking redundant circuitry necessary to allow its
use in personnel safety applications. A sensor failure or malfunction can cause either an energized or de-
energized sensor output condition.
Overview
The D10 Expert is an easy-to-use, DIN-rail-mountable fiber optic sensor. It provides high-performance sensing in low-contrast applica-
tions. Configuration options include Setup mode plus Static and Dynamic TEACH, and Window Set options, in addition to manual fine
adjustment, remote programming, and security push button lockout.
P/N 117830 Rev. F
• Easy-to-read 8-segment light bar indicator for teach and signal strength readout, plus
indicators for continuous readout of operating status (user configuration)
• Easy-to-set automatic Expert-style configuration options include Static and Dynamic
TEACH, and Window SET, plus manual adjustment for fine tuning
• Smart gain-control algorithm to maximize performance in low-contrast applications
• Fast 500-microsecond sensing response with improved crosstalk avoidance routine
(for two sensors) in Normal mode
• Selectable high-speed (HS) mode option for 200-ms response
• Extreme configuration flexibility via push buttons or a remote input wire
• Easy selection of Light/Dark Operate (LO/DO), 30 ms pulse stretcher (OFF-delay), and
response speed, via push buttons or a remote input wire
• Models available with visible red (680 nm) or visible green (525 nm) sensing beam
• Sleek, ultra-slim 10 mm housing, mounts to a standard 35 mm DIN rail
• Models with bussable power provide simplified wiring of up to 16 sensors and feature
improved temperature compensation for side-by-side mounting
Description
Standard sensor
Main unit
Sub-unit
5/15/2013
Cable* Outputs
2 m (6.5 ft) Cable
Bipolar NPN/PNP
6-pin Pico-style QD
2 m (6.5 ft) Cable Bipolar NPN/PNP
2 m (6.5 ft) Cable Single PNP
2 m (6.5 ft) Cable Single NPN
