- Page 1 Operating instructions H1250/... Basezone Control unit...
- Page 3 Foreword Thank you for choosing a HASCO hot runner product. These operating instructions are intended for everyone who works with HASCO hot runner technology and explain how to safely handle HASCO hot runner products. These operating instructions must be read carefully by personnel whenever a product is brought into operation for the first time.
-
Page 4: Table Of Contents
Pin diagram Button and display functions Displays 6.1 Alarm displays 6.2 Function displays Function buttons Controller start-up 8.1 Switching on / Soft Start 8.2. Manual mode Programming 9.1 Factory settings 10. Menu items 11. Safety information 4 HASCO hot runner... -
Page 5: Introduction

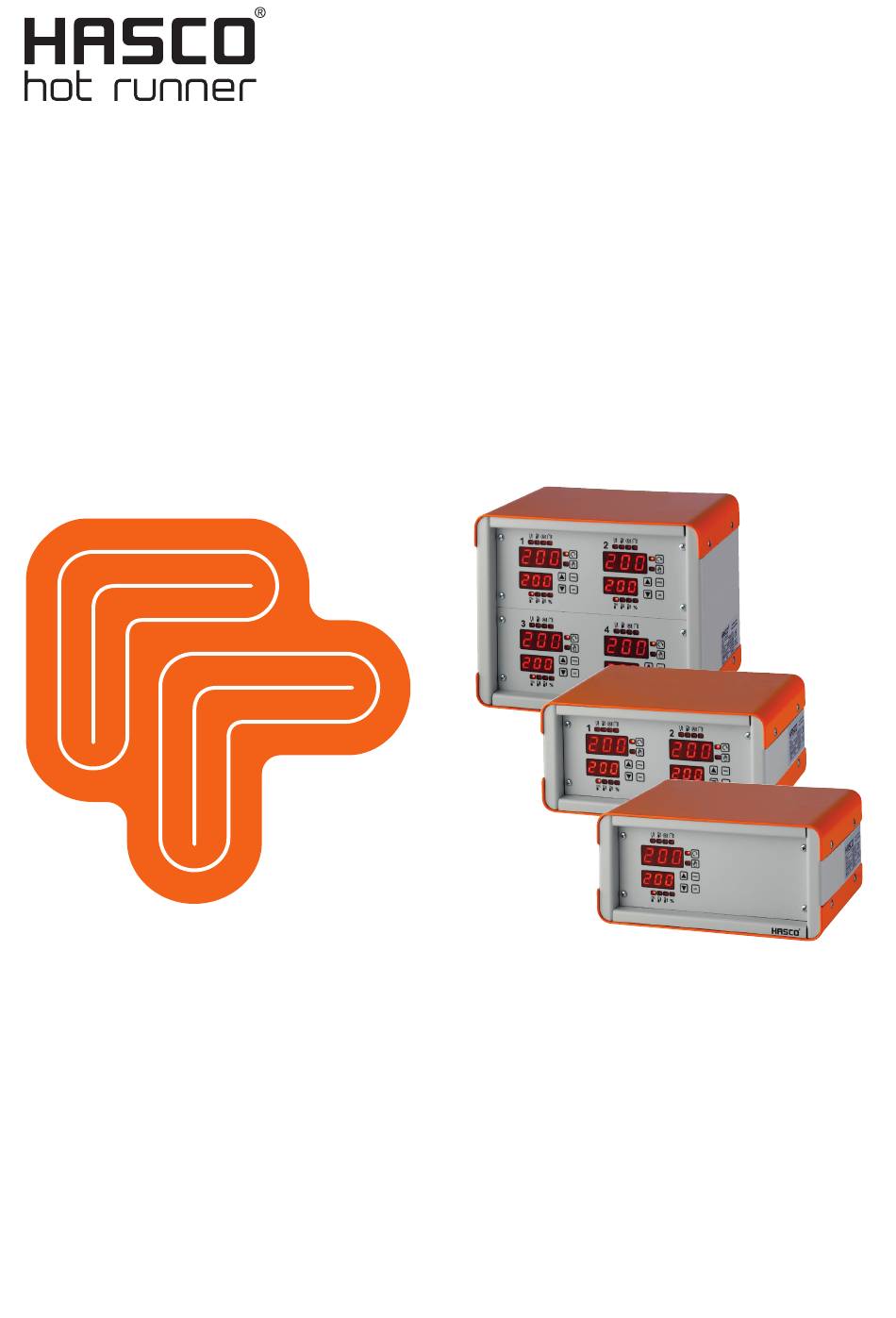

Instruction manual H1250 1. Introduction The HASCO H 1250 control unit offers precision control and practically orientated operation. 2. Special Features - 1 to 2 control zones - Optimum control performance - Programmable soft start - Power display in amps and % output... -
Page 6: Electrical Connection
If all the control zones in the H 1250 /. . . are used, it is essential to observe the following: Maximum power consumption H1250/1x16 …. 3600 Watt H1250/2x16 …. 7200 Watt H1250/4x16 …. 14400 Watt 4.1 Pin diagram H 1250/1/16 H 1250/2/16 H 1250/4x16 6 HASCO hot runner... -
Page 7: Button And Display Functions
Set point display Set point temperature in °C Power output in amps and heating output in % - see switch over buttons for automatic control and PRG. Parameter values Operating mode Manual mode Reduced temperature Boost function HASCO hot runner 7... -
Page 8: Alarm Displays
Excess current Lights up if the set maximum current is exceeded. Heating circuit interrupted Lights up in the event of a defective FF16A fuse on the module, or with a heating failure or cable fracture. 8 HASCO hot runner... -
Page 9: Function Displays
If the control unit is switched off and on again with the main power switch, Previous set point is reactivated. Heating output button can be used to display the current heating output in % in the set point value display. HASCO hot runner 9... -
Page 10: Function Buttons
(factory setting) up to 120°C max. SOF appears in the set point value display. The "Temperature deviation" alarm display will light up. After the soft start has been completed, the pre-set set point value will be displayed. The control unit now heats up the tool uniformly. 10 HASCO hot runner... -
Page 11: Manual Mode
To return all the parameters to the factory setting, the "PRG" button must be briefly pressed at the same time as the operating voltage is switched on with the mains power switch. "RES" appears in the display. HASCO hot runner 11... -
Page 12: Menu Items
Soft start ON = 1 / OFF = 0 0 -1 No soft start as of actual temperature 100°C 50 – 100°C Max. setpoint value 500°C 30 – 500°C Automatic switch to manual mode 0 -1 0 = deactivated 12 HASCO hot runner... -
Page 13: Safety Information
Before changing the fuse, the unit must be disconnected from the mains power. Only experienced users should operate this equipment. 02.21 / JS © by HASCO Hasenclever GmbH + Co KG, Postfach 1720, D-58467 Lüdenscheid, T +49 2351 957-0, F +49 2351 957-237, info@hasco.com, www.hasco.com Subject to technical modifications... - Page 14 Built to Run. www.hasco.com...
