TP-590RXR Quick Start Guide
This guide helps you install and use your TP-590RXR for the first time.
Go to
Scan for full manual
upgrades are available.
Step 1: Check what's in the box
TP-590RXR HDMI Line Receiver
1 Power supply (12V DC)

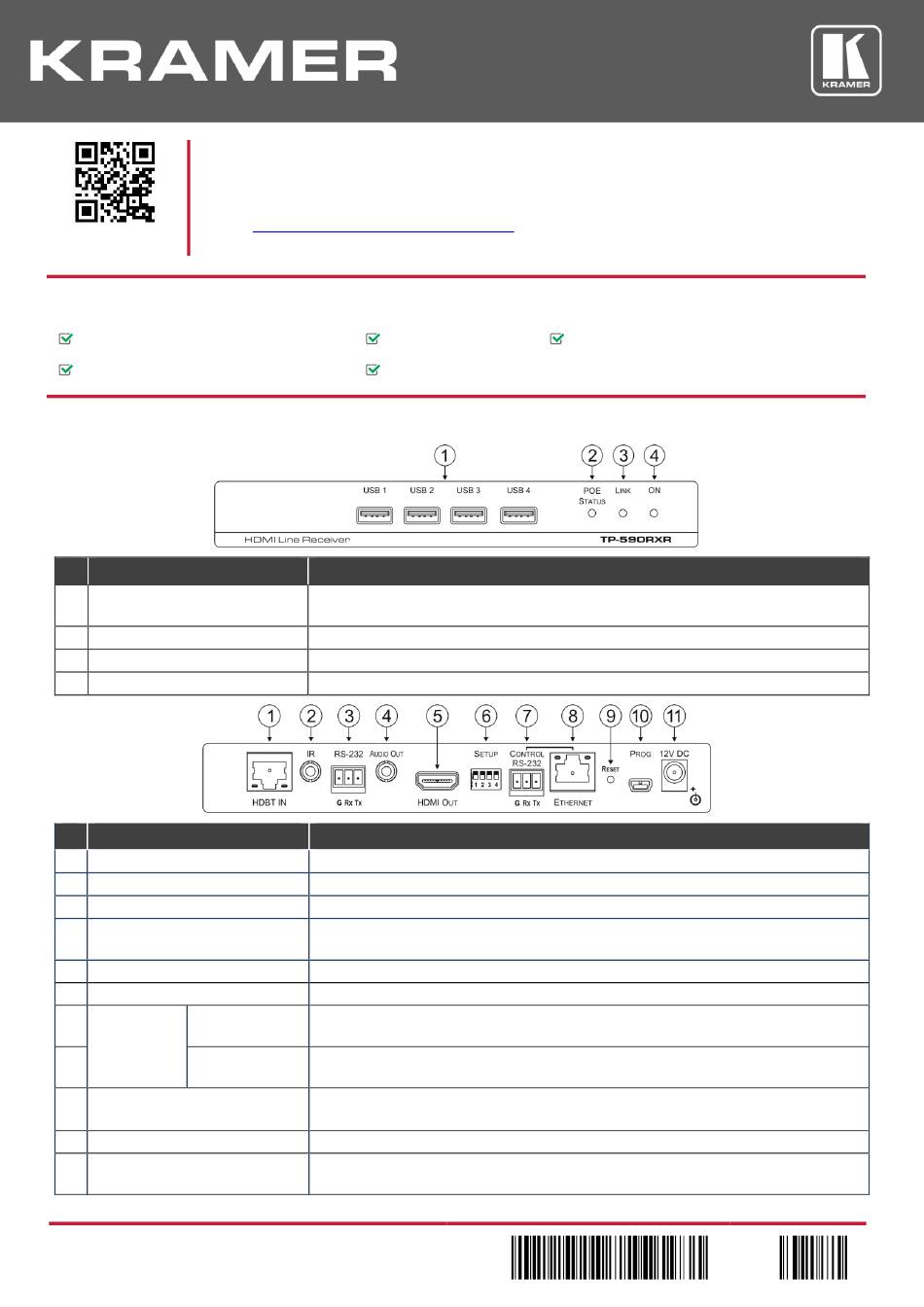

Step 2: Get to know your TP-590RXR
# Feature
USB 1 – 4 Connectors
1
2 POE STATUS LED
3 LINK LED
4 ON LED
# Feature
1 HDBT IN RJ-45 Connector
2 IR 3.5mm Mini Jack Connector
3 RS-232 3-pin Terminal Block
4 AUDIO OUT 3.5mm Mini Jack
Connector
5 HDMI OUT Connector
6 SETUP 4-way DIP-switch
7 RS-232 3-pin
Terminal Block
CONTROL
8 ETHERNET
RJ-45 Connector
9 RESET Switch
10 PROG Mini USB Connector
11 12V DC Power Connector
TP-590RXR Quick Start (P/N: 2900-300860QS REV 2)
www.kramerav.com/downloads/TP-590RXR
4 Rubber feet
1 Quick start guide
Function
Connect to the USB peripheral devices, (for example, USB camera, computer mouse, or
keyboard).
Lights green when power is received over the TP connection.
Lights green when the HDBT link is valid.
Lights green when the device receives power.
Function
Connect to the HDBT OUT RJ-45 connector on the HDBT transmitter.
Connect to an external infrared transmitter or sensor.
Connect to an RS-232 device to be controlled, for example, a projector.
Connect to the stereo, analog audio acceptor.
Connect to the HDMI acceptor.
Set the device behavior (see Step 4).
Connect to the serial controller for this device.
Connect to the Ethernet controller to control this device or to a LAN to pass network traffic.
Press and hold for 5 seconds to reset the device to factory default settings.
Press and immediately release to power-cycle the device (Reset).
Connect to a PC to perform firmware upgrades.
Connect to the supplier power adapter if power is not supplied from a PoE device via the TP
cable.
to download the latest user manual and check if firmware
1 Bracket set
P/N:
2 9 0 0 - 3 0 0 8 6 0 QS
Rev:
2
