Summary of Contents for Rocktron MicroHUSH

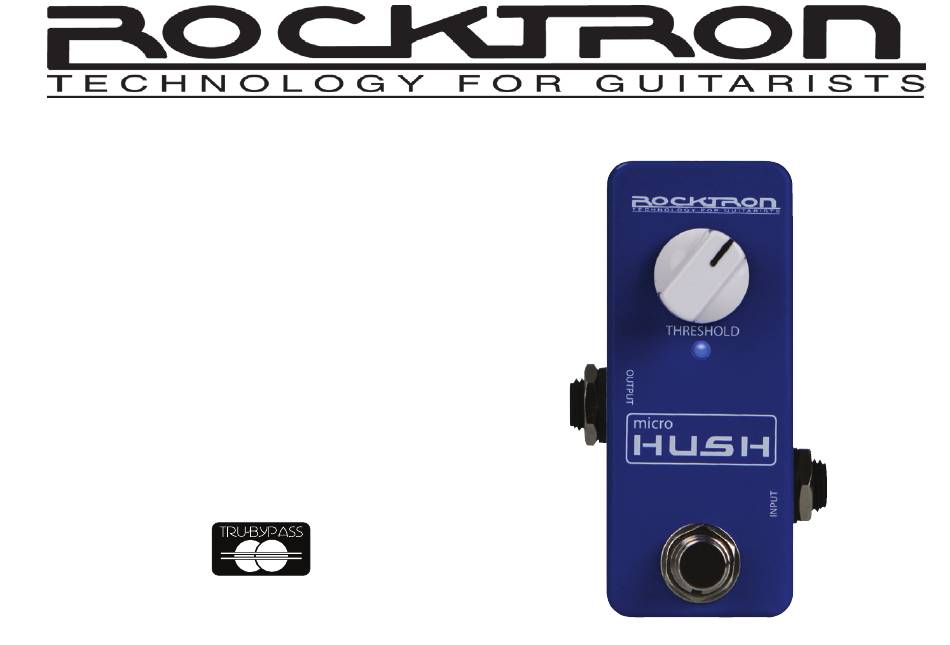

- Page 1 MicroHUSH Instruction Manual...
- Page 2 To insure against this possibility, always use good shielded cables for all audio input and output connections. This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website (www.rocktron.com).
- Page 3 The MicroHUSH will not alter your sustain or chop the end of your notes. Simply use the Threshold knob to smooth out your signal while saying goodbye to noise forever! The MicroHUSH does not eliminate 60 cycle ground loop hum.
- Page 4 Make sure you pay attention to the proper setup by placing the MicroHUSH AFTER your noisy stomp boxes or in your amp’s effects loop. The MicroHUSH is NOT designed to take the input directly from your guitar WITHOUT some processing hap- pening between the guitar and the noise reduction.
- Page 5 Descriptions...
- Page 6 Attack is measured in time. Threshold is measured in dB or by the voltage/level of the signal. 9VDC Power Jack - The MicroHUSH requires 9VDC power to operate (not included/sold separately). This 2.1mm power jack (Negative Tip/Positive Barrel) provides 9VDC power to the pedal.
-
Page 7: Typical Connection
Typical Connection... - Page 8 Setting the THRESHOLD controls just above the level of the noise causes the MicroHUSH to begin to decrease the output level so that the noise is never heard. This pedal incorporates the latest advancements in HUSH noise reduction technology. The MicroHUSH’s discrete threshold control circuit utilizes a voltage-controlled amplifier (VCA) as a...
- Page 9 HUSH Information The Variable Integrated Release (V.I.R.) technology contained in each HUSH circuit automatically adjusts the release rate of the expander based on the dynamic decay rate of the incoming signal. If the input signal stops suddenly, downward expansion will occur rapidly (similar to a gate). If the input signal decays slowly, expansion will occur slowly without disrupting the dynamic decay of the input signal.
-
Page 10: Specifications
1kΩ Current Consumption 15mA Power Requirements 9V DC Power Supply Rocktron DC OnTap Universal Power Supply (sold separately) is recommended. 2.1mm Jack Nega- tive Tip/Positive Barrel Dimensions 92mm Long x 54mm Wide (jack end to jack end) x 48mm Tall (from bottom to top of switch) 3 5/8”... - Page 11 How to power the MicroHUSH: The MicroHUSH requires a 9V DC power supply for operation (not included). We recommend any of these: Rocktron DC OnTap 110V USA Plug - Model: 006-2017 Rocktron DC OnTap 220V Euro Plug - Model: 006-2018...
- Page 12 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49037 www.rocktron.com info@rocktron.com tel: 1-269-968-3351 Copyright © 2014 GHS Corporation rev. 12-18-13 All Rights Reserved. 2014.1...
