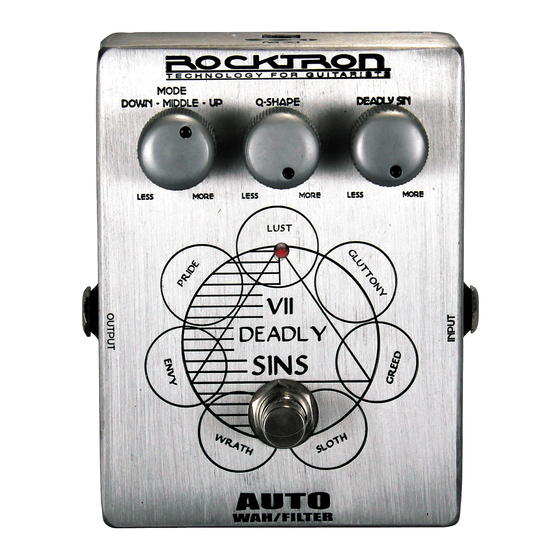

VII Deadly Sins
Instruction Manual
This pedal is:
May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047,
4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617.
Other patents pending. Foreign patents pending.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VII Deadly Sins and is the answer not in the manual?

Questions and answers

Related Manuals for Rocktron VII Deadly Sins

Summary of Contents for Rocktron VII Deadly Sins

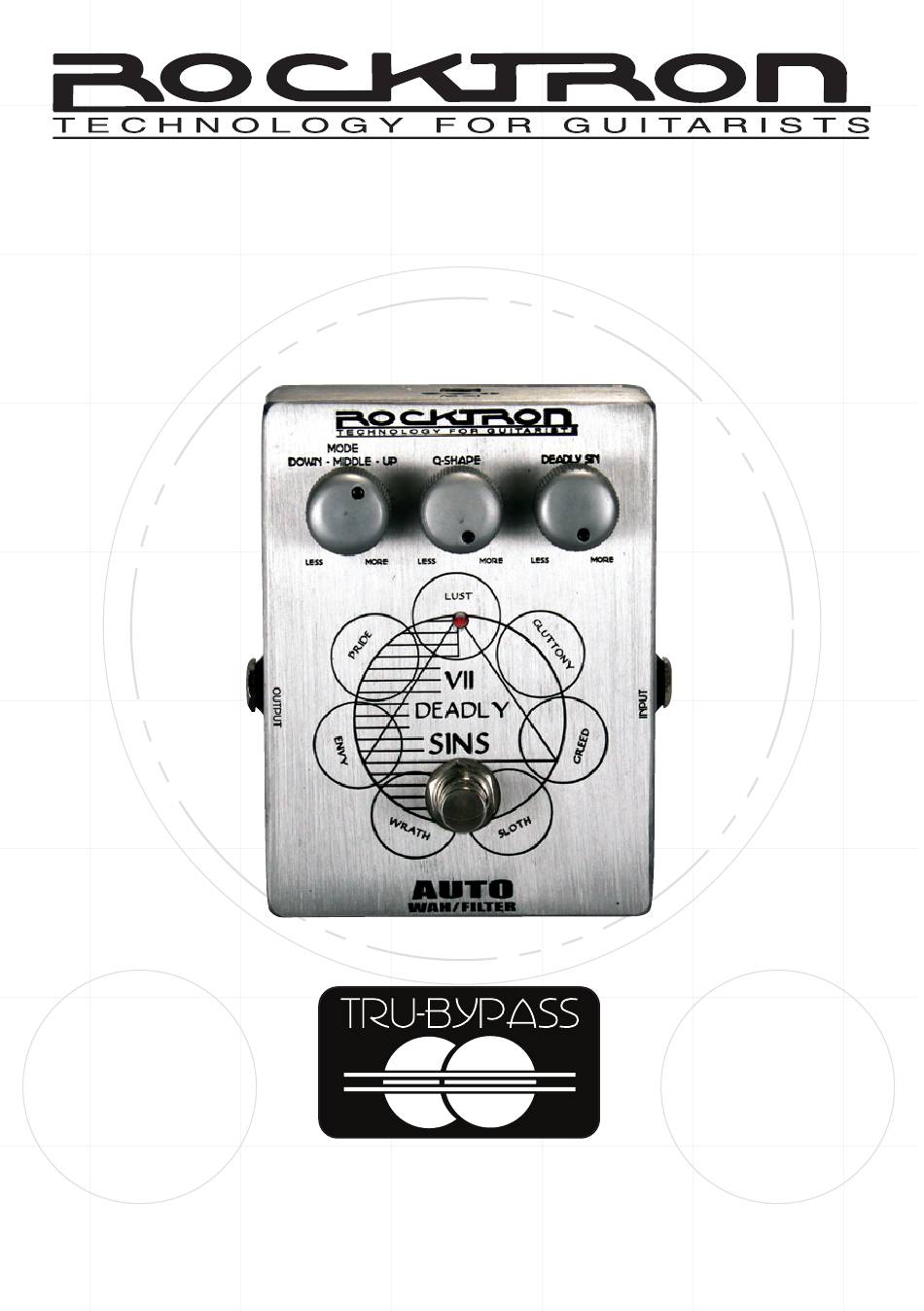

  • Page 1 VII Deadly Sins Instruction Manual This pedal is: May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
  • Page 2 This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website - www. rocktron.com). Read all instructions contained in this manual.
  • Page 3 Precautions Refer all service to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
  • Page 4 This is a TRUE BYPASS pedal: when you turn it off…it is out of your signal path! Control knobs for the VII Deadly Sins Auto Wah include MODE which controls the A.D.S.R. (Attack, Decay, Sustain, Release) response curve applied to the wah filter.
  • Page 5 The VII Deadly Sins is sure to inspire your next composition and your stage performances. Wah effects are at the heart of so many great songs and solos, and Rocktron’s stomp box will be no exception.
  • Page 6 Descriptions...
  • Page 7 Q-SHAPE Control -The control determines the width of the wah filter boost. 9VDC Input - This input jack provides 9VDC power to the pedal from the Rocktron DC OnTap 9V power supply (sold seperately). DEADLY SIN Control - This control determines the threshold point at which the wah will activate.
  • Page 8 Descriptions continued..INPUT Jack - Using a standard 1/4” guitar cable, plug your guitar into this jack. OUTPUT Jack - Using a standard 1/4” guitar cable you can plug in another pedal from this jack or plug directly into your amplifier.

  • Page 9: Typical Connection

    Typical Connection...

  • Page 10: Specifications

    Maximum Output 8dBu Imput Impedance 1MΩ Output Impedance Current Consumption 15mA Power Requirements 9V Alkaline Battery or Rocktron DC OnTap Univeral Power Supply (sold seperately). Nega- tive tip. Dimensions 95mm x 122mm x 56mm 3.75” x 4.75” x 2.25” Weight 410g...

  • Page 11: How To Change The Battery

    Place the back cover on the pedal and re- insert the screws. Save yourself tons of money in batteries by using the Rocktron DC OnTap Universal Power Supply to power this pedal (sold seperately). The Rock- tron DC OnTap provides a constant flow of power to the pedal, unlike a battery that will degrade over time.
  • Page 12 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49037 www.rocktron.com info@rocktron.com tel: 1-269-968-3351 rev. 7-27-09 2009.1...
