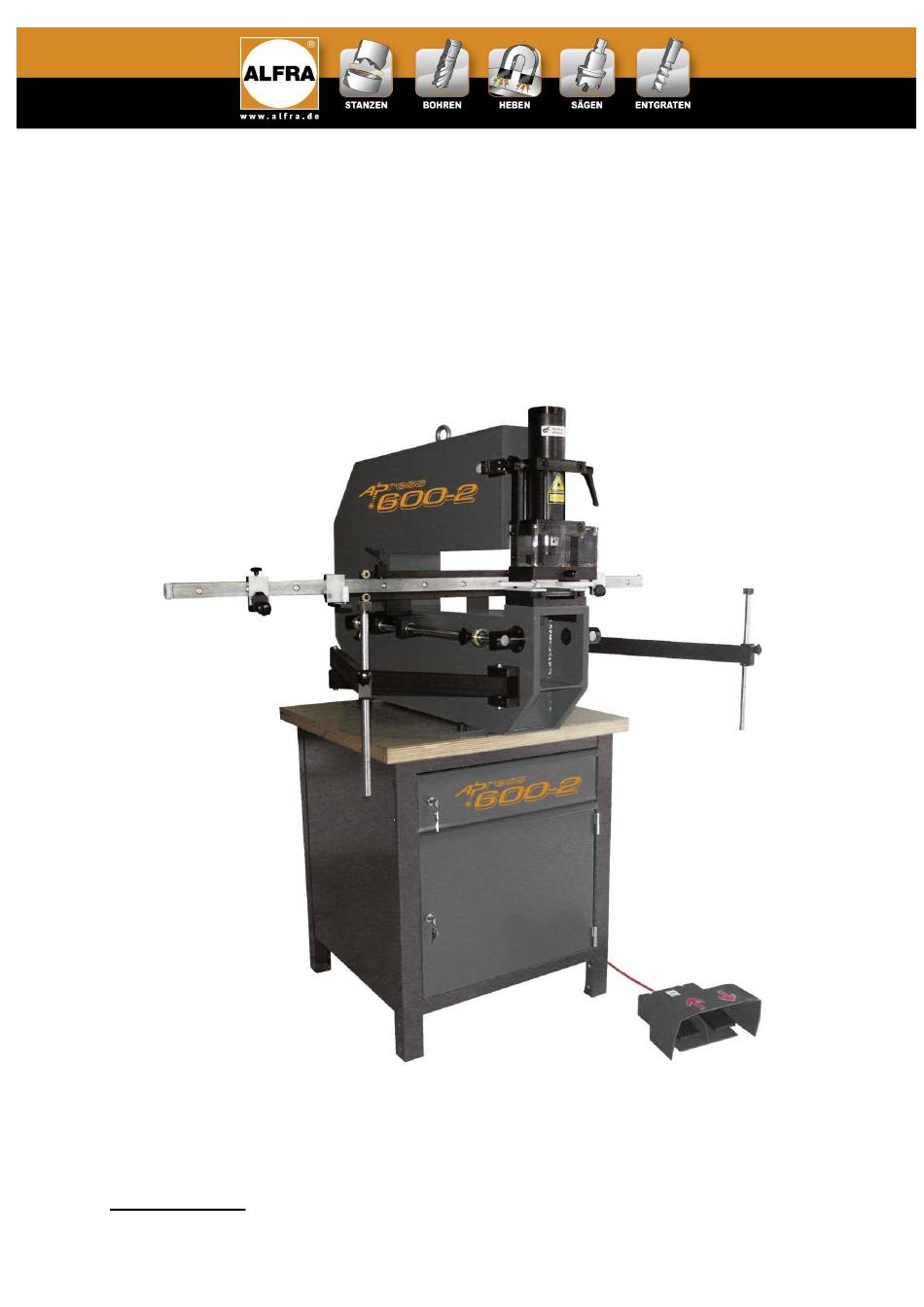

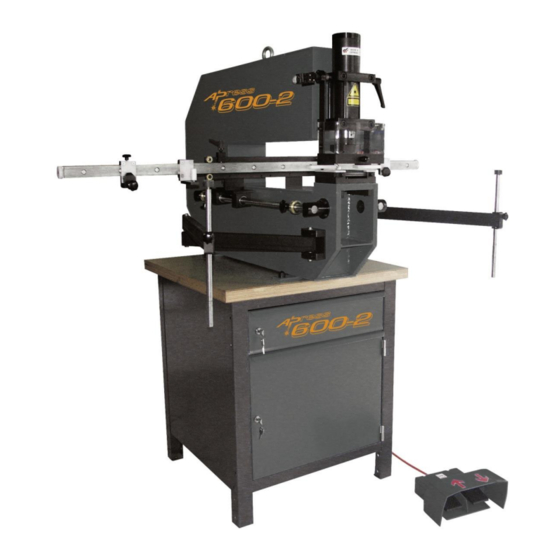

- Page 1 06/2018 OPERATING INSTRUCTIONS ALFRA PRESS AP 600-2 Stationary Punching Machine Prod. No. 03090 Illustration includes special equipment 1. Intended use Seite | 1...
- Page 2 The press is used for punching sheet metal. Punching without pre-drilling. Perfect for switch cabinet and switchgear construction. Hydraulic punch unit for fast punching of round, square, rectangular or special shapes in metal sheets and control cabinet doors up to 2200 x 1000 mm and up to 30 mm bending height. Punching up to the edge area is possible.
- Page 3 Die bed holder tool replacement also with inserted door Stable piston rod with tool anti-twist device Laser pointer for optical display of tool centre Stable press body in robust, deformation-resistant welded construction. Double-acting hydraulic cylinder, force and form-fit flanged to the machine body. Torsion-resistant arranged piston rod made of hardened and tempered stainless steel Ø...
- Page 4 Scope of delivery: Stationary punch ALFRA PRESS 600-2, Part no. 03090, with hydraulic cylinder, cabinet base, length and depth stop movable in X and Y direction, cylinder piston with anti-rotation device for use of all punch holders, double-acting hydraulic unit and safety foot switch.
- Page 5 Lock the workpiece by closing the clamping lever. Swing down the hold-down device and clamp in vertical position The foot switch must be operated and held for punching. The cylinder piston stops as soon as the foot switch is released. Do not use blunt or damaged tools.
- Page 6 EC Directive 2006/42/EC. If changes are made on machines that are not approved by us, this declaration loses its validity. ALFRA PRESS – Stationary Punching Machine AP 600-2 The accordance with further, also for this product applying directives / regulations, will be declared: •...
