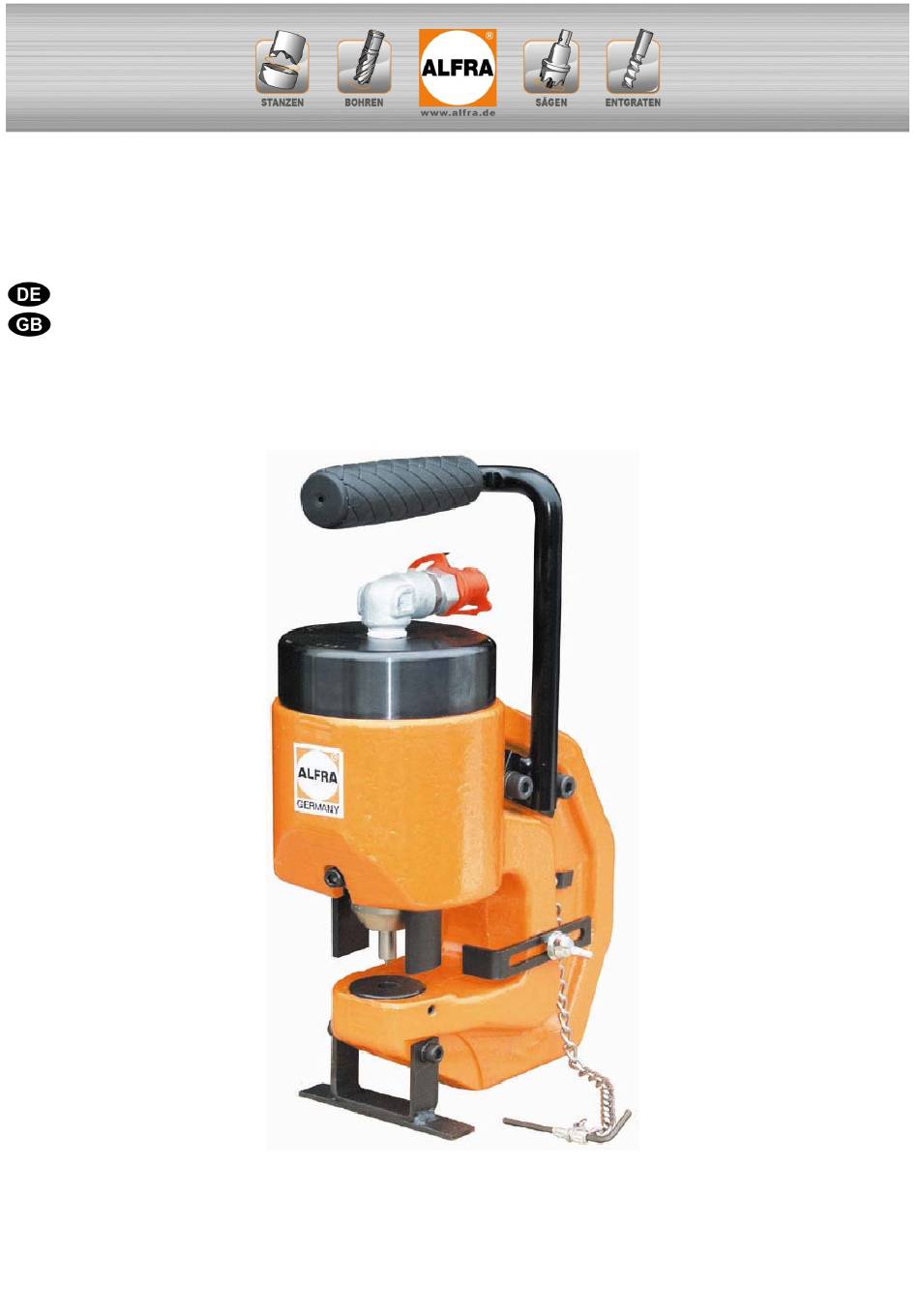

- Page 1 Bedienungsanleitung / Operation Manual AP - 65 Hydraulik-Lochstanze Hydraulic Hole Punch Artikel Nr. 03260 / Article No. 03260...
- Page 2 Wear safety goggles and ear protection when working with the hydraulic hole punch. Wear protective gloves when working with the hydraulic hole punch. Specified conditions of use The hydraulic hole puncher AP-65 is destined for punching round holes in steel, aluminum and copper.
- Page 3 Technical Data Piston stroke: 18 mm Punching force: 270 kN Outreach: 65 mm Operating pressure: max. 700 bar Punching range: punch ∅ 5,5 mm - ∅ 21 mm Weight: 16 kg Dimension: 220 x 110 x 335 mm Description 1 : Hold down 2 : Die 3 : Connection - quick coupling 4 : Punch...
- Page 4 Functional description The AP-65 hydraulic punch is a mobile work tool for punching round holes in wrought material. By the integrated hydraulic cylinder the necessary punch forces will be provided - at a maximum pressure of 700 bar - with which the wrought material can be worked on.
- Page 5 Punch 1. Loosen the set screw. 2. Insert the punch. 3. Tighten the set screw firmly. Punching Start and stop the punching process with the hand switch of the respective hydraulic pump or use the foot pump. Tools for copper, aluminum and steel up to S233 max.
