hepco & becker 6303544 00 01 Quick Start Manual

C-bow holder

Advertisement

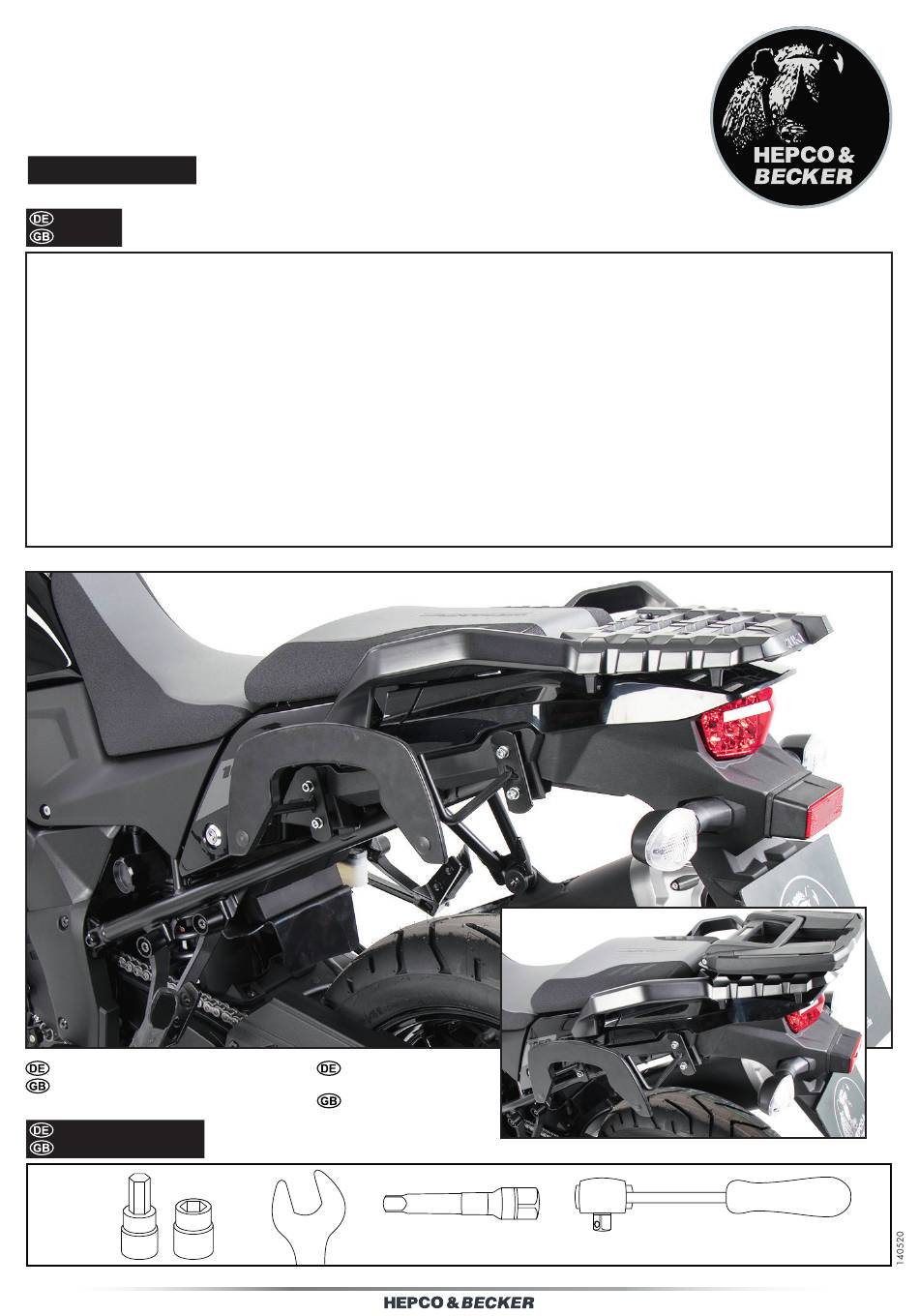

C-Bow Taschenhalter / C-Bow holder
SUZUKI V-Strom 1050
2020-
Artikel Nr.: / Item-no.:
3544
630
00 01
INHALT
CONTENT
2x 700007063 C-Bow schwarz
1x 700010928 Halter vorne links
1x 700010929 Halter vorne rechts
1x 700010930 Halter hinten links
1x 700010931 Halter hinten rechts
1x 700010932 Schraubensatz:
2x Zylinderschraube M6x50
6x Zylinderschraube M6x45
8x Sechskantschraube M6x16
8x Karosseriescheibe Ø6,4xØ18
8x U-Scheibe Ø6,4
8x Stahldistanz Ø15xØ6,2x23,
abgesetzt, verzinkt
Baubreite 49 cm
Width: 49 cm
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
Kombinierbar mit
Alu-/Easyrack
Can be combined with
Alu-/Easyrack
Set
Verlängerung/extension
2x 700007063 C-Bow black
1x 700010928 Holder front left
1x 700010929 Holder front right
1x 700010930 Holder rear left
1x 700010931 Holder rear right
1x 700010932 Screw kit:
2x Allen screw M6x50
6x Allen screw M6x45
8x Hexagon bolt M6x16
8x Body washer Ø6,4xØ18
8x Washer Ø6,4
8x Steel spacer Ø15xØ6,2x23
stepped, galvanised
Ratsche/Ratchet
1
