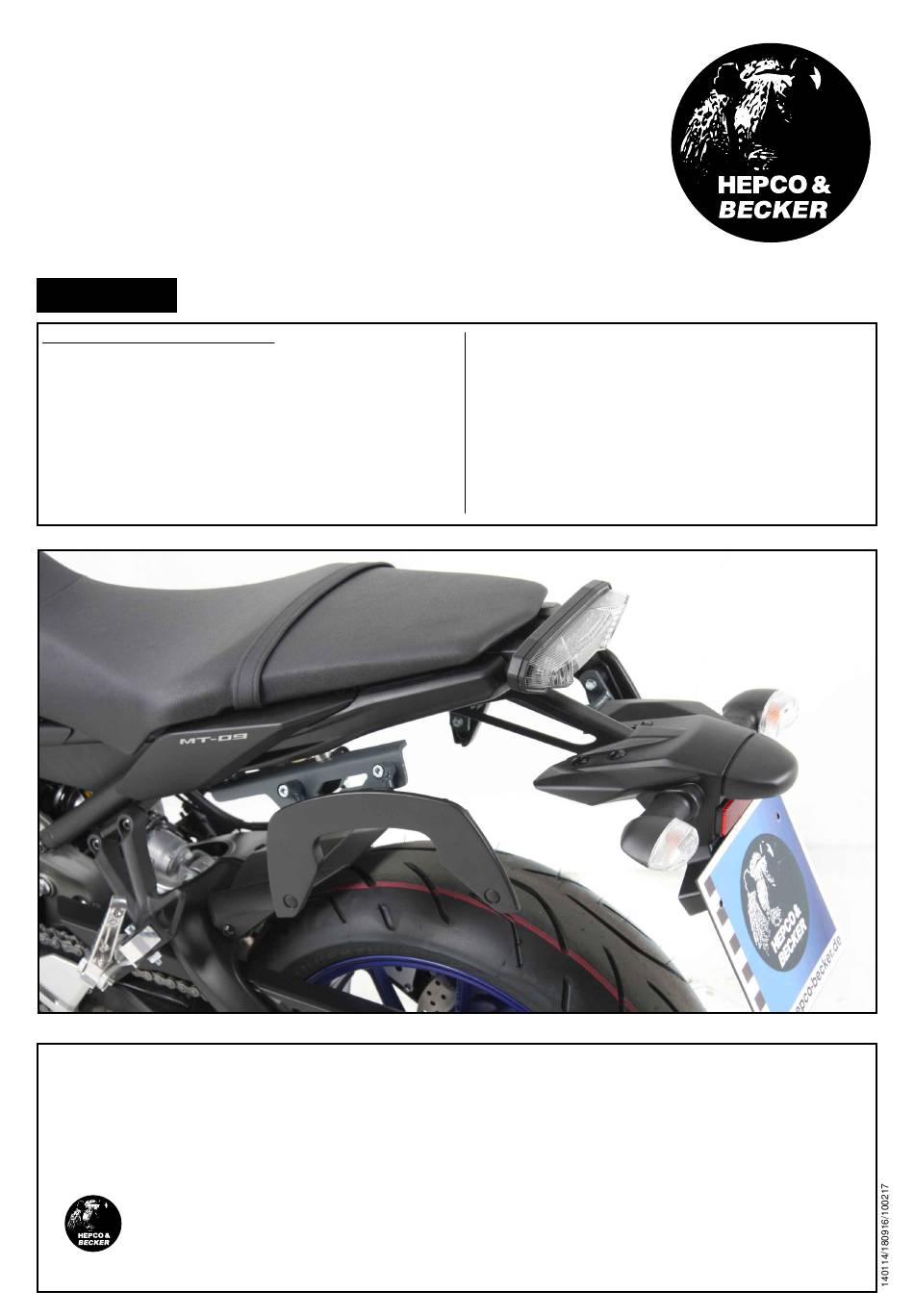

C-Bow Taschenhalter YAMAHA MT - 09 Baujahr 2013-2016 Artikel Nr.: 6304536 00 05 anthrazit Montage Vorbereitung: Sitzbank abnehmen und Seitenverkleidungen demontieren. Die Seitenverkleidungen sind an den Unterseiten jeweils an 2 Stellen mit einem großen X im Kunststoff markiert. An diesen vier gekennzeichneten Punkten muss die Verkleidung aufgebohrt werden. Zuerst mit einem kleinen Bohrer vorbohren z.B.
Page 3
C-Bow Taschenhalter YAMAHA MT - 09 Baujahr 2013-2016 Artikel Nr.: 6304536 00 05 anthrazit Montage Montage der C-Bow links + rechts: Dazu die Sechskantschrauben M6x16 und die U-Scheiben Ø6,4 verwenden. Alle Teile korrekt ausrichten und die Verschraubungen festziehen. Der C-Bowhalter kann auch in Verbindung mit der Originalbrücke...
C-Bow Soft bag holder YAMAHA MT - 09 date of manufacture 2013-2016 Item-no.: 6304536 00 05 anthracite Assembling instructions The kit includes the following parts: Quant item no. description Quant item no. description 700007063 C-Bow black 150.915 hexagon bolt M6x16...
Page 5
C-Bow Soft bag holder YAMAHA MT - 09 date of manufacture 2013-2016 Item-no.: 6304536 00 05 anthracite Assembling instructions Preparing: Remove the seat and remove side panels. The side panels are marked on the lower sides in 2 places with a large X in the plastic. At these four points marked the panel must be drilled.
Page 6
C-Bow Soft bag holder YAMAHA MT - 09 date of manufacture 2013-2016 Item-no.: 6304536 00 05 anthracite Assembling instructions Fastening of the C-Bow: with hexagon bolts M6 x 16 and washers ø6,4. After mounting all parts, the screws should be tightened to the torque specified.
