Installation

4024_en_E
3.1

Mounting

Depending upon the configuration ordered, there are several ways to mount the BL2 ...100.
Use the appropriate section below to mount the BL2 ...100.
NOTE:
Install the BL2 ...100 with adequate clearance around the heat sink to provide sufficient air
flow such that ambient temperatures do not exceed the operating limits. Install cooling
fan(s) in the enclosure, if necessary.
Connectors and switches must be accessible. A wall panel thickness of 1.9 mm (14 ga.)
is required for correct mounting of a BL2 PPC ...100 to maintain IP66 protection.
When installing the BL2 ...100 in a cabinet, follow these general rules:
Verify clearances within the cabinet. Typically, leave at least 5 cm (2 in.) on each side
with 13 cm (5 in.) on the connector side.
Drill all holes and make all cuts before beginning installation. Be sure to protect already
installed components from shavings during this procedure.
Supporting panels must be at least 14 gauge to provide proper support.
Make sure that there is adequate space around the heat sink to provide sufficient
cooling.
NOTE:
Exceeding the system temperature limits can result in performance degradation of any or
all components. It is therefore important that the ambient temperature of the installation
environment is kept within the system temperature limits of your BL2 ...100.
3.1.1

Wall mount (BL2 BPC ...100)

194
185

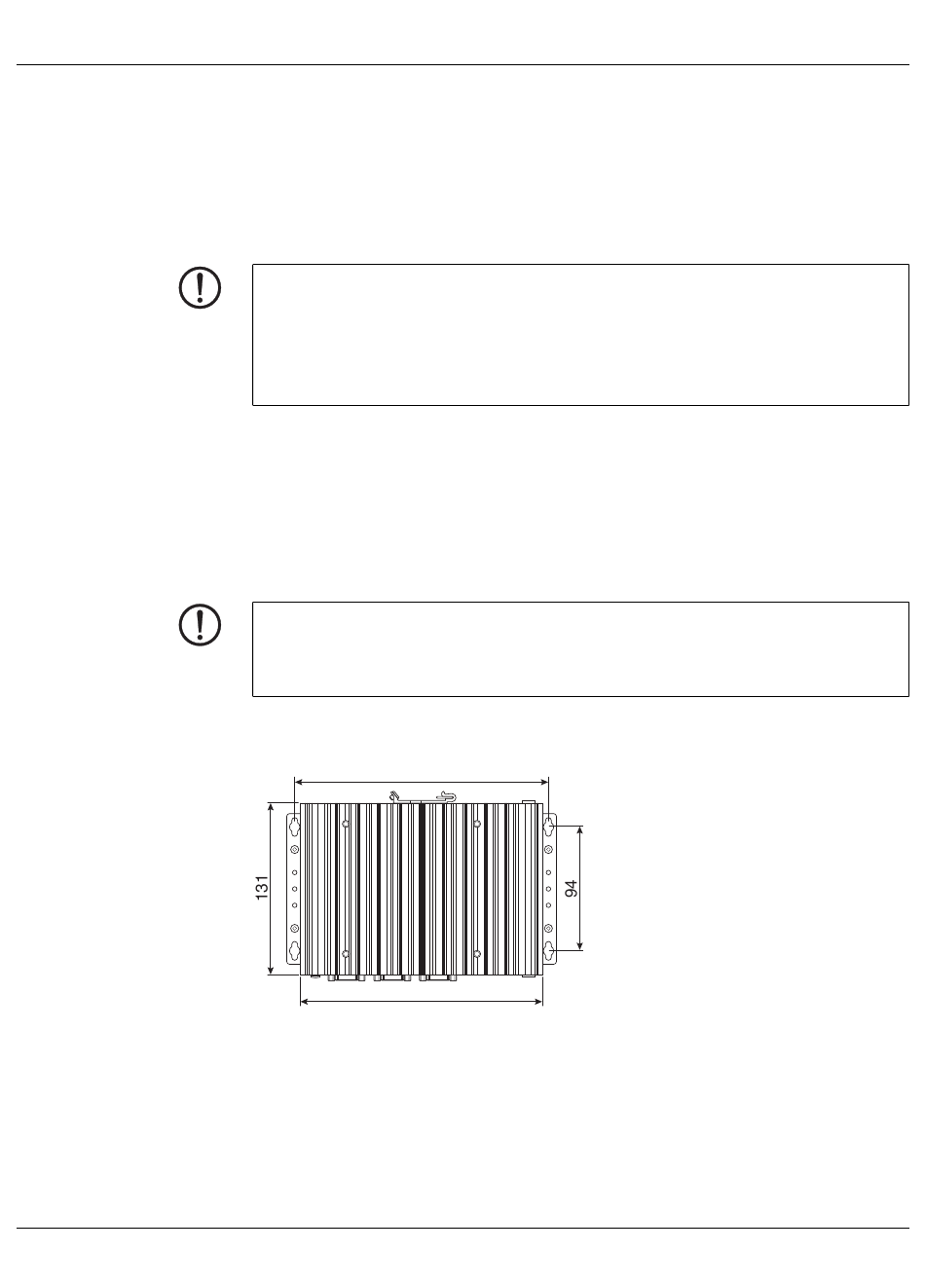

Figure 3-1
Mounting dimensions (BL2 BPC 1100, BL2 BPC 2100)
Installation
7/36
