4024_en_E
3.1.2
DIN rail mount
NOTE:
Only the BL2 BPC 1100 and BL2 BPC 2100 has the option of DIN rail mounting.
A A
A A

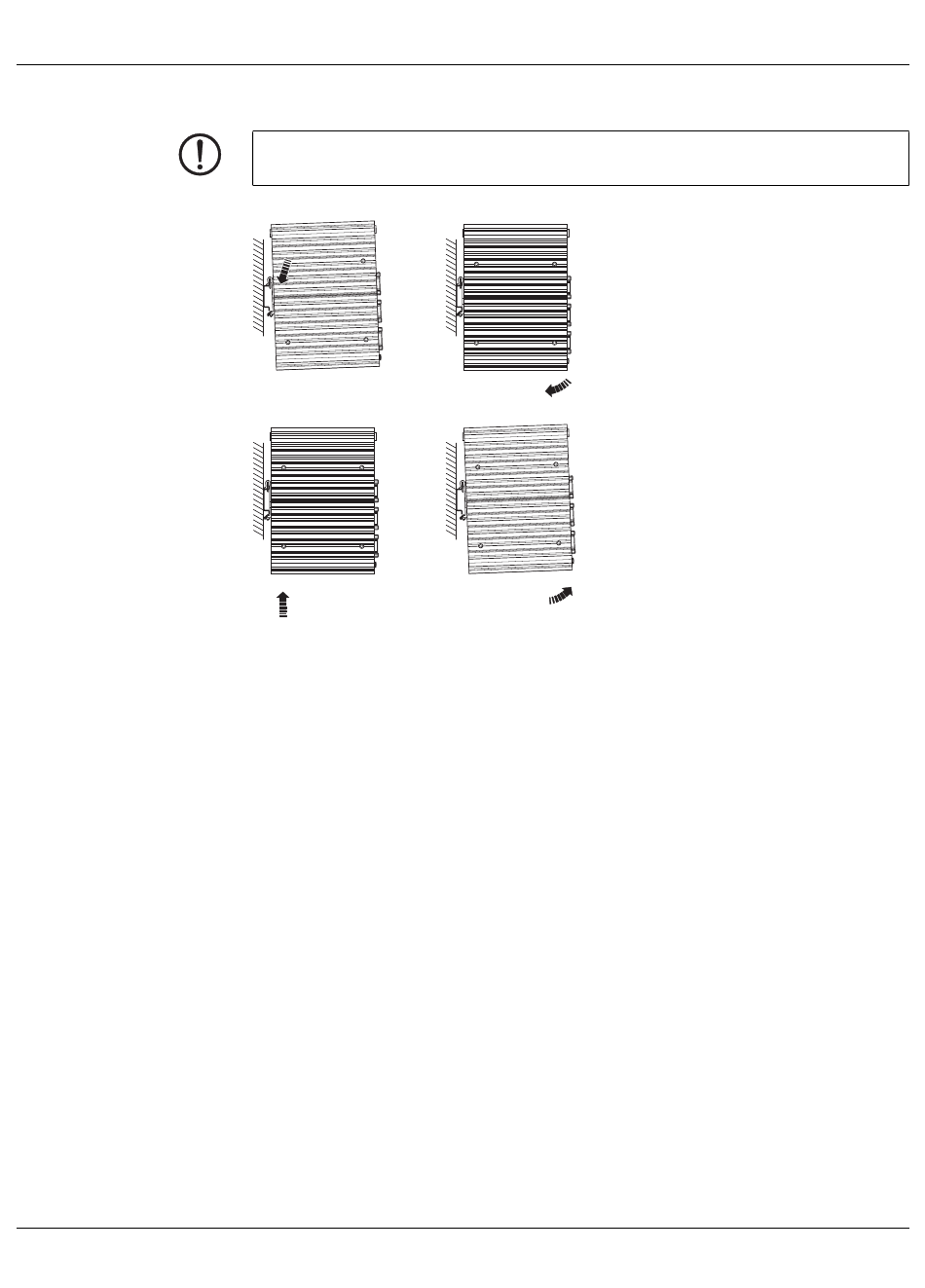

Figure 3-3
DIN rail mounting
1.
Angle the BL2 BPC ...100 so the top edge of the mounting plate hangs on the top edge
of the DIN rail.
2.
Rotate the BL2 BPC ...100 down (A) against the lower edge of the DIN rail. Press in (B)
until the latch snaps closed.
3.
Secure the device on the rail with clamps.
4.
If necessary to remove, raise the device straight up (A) and rotate the device away from
the rail (B).
Mounting
B
Removal
B
Installation
9/36
PHOENIX CONTACT
