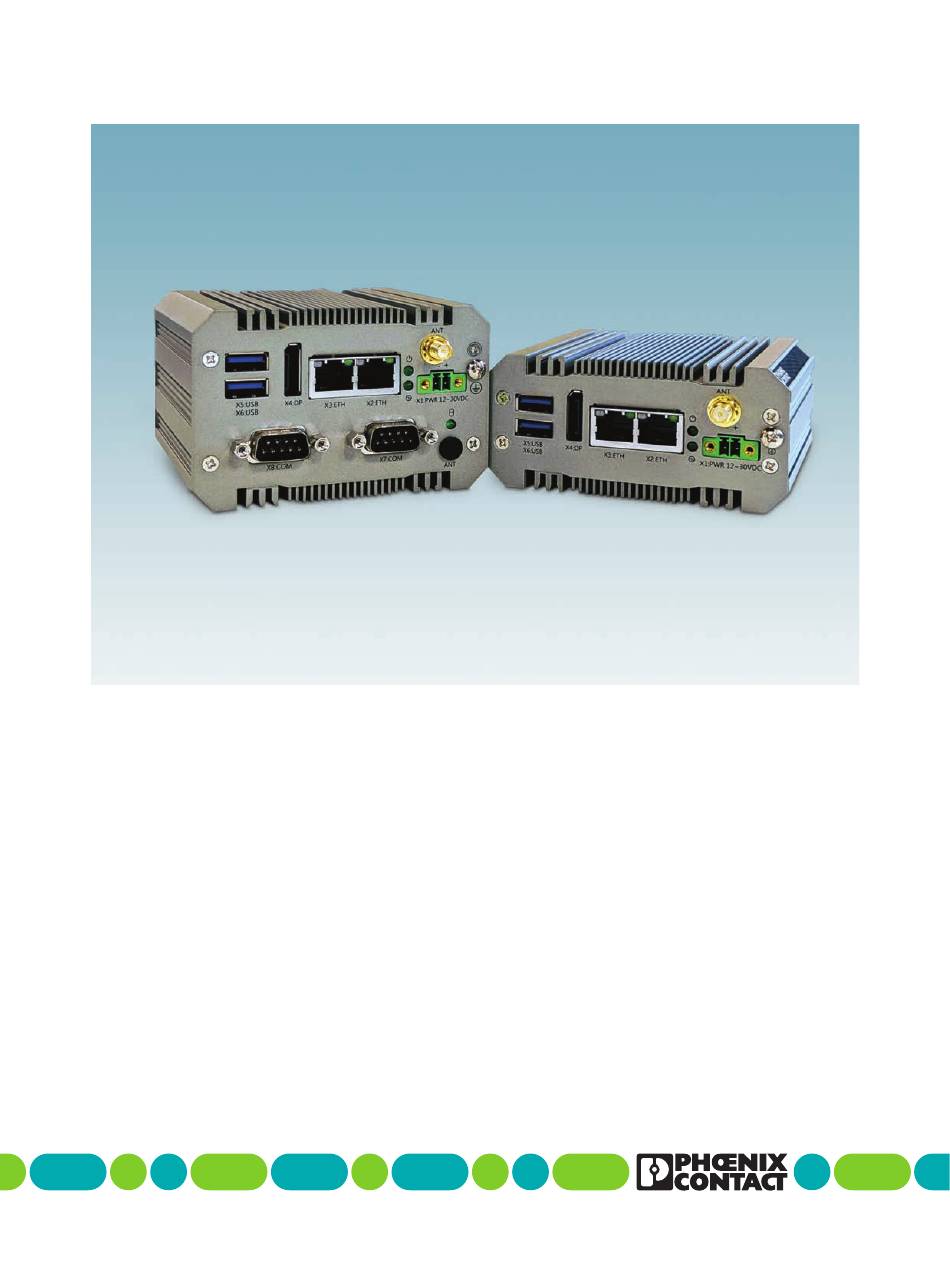

  • Page 1 Basicline 2 compact box PC User manual UM EN BL2 BPC 1501...
  • Page 2 1158244 BL2 BPC 1501E-128-W10-T 1158243 BL2 BPC 1501E-W-128-W10-T 1158231 BL2 BPC 1541S-4/64-W10 1272688 BL2 BPC 1541E-8/128-W10 1272687 BL2 BPC 1541S-4/64 1272827 BL2 BPC 1541E-8/0 1272829 Phoenix Contact GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany phoenixcontact.com...

  • Page 3: Table Of Contents

    Real-time clock battery ..................23 5.2.1 Battery replacement ................23 UEFI ........................26 5.3.1 Configurable D SUB-9 connector ............26 Technical appendix........................29 Technical data ....................29 Appendixes..........................33 List of figures ...................... 33 List of tables ....................... 35 1/38 PHOENIX CONTACT 4038_en_J...
  • Page 4 BL2 BPC 15… 2/38 PHOENIX CONTACT 4038_en_J...

  • Page 5: For Your Safety

    The use of products described in this manual is oriented exclusively to electrically skilled persons or persons instructed by them. The users must be familiar with the relevant safety concepts of automation technology as well as applicable standards and other regulations. 3/38 PHOENIX CONTACT 4038_en_J...

  • Page 6: Field Of Application Of The Product

    Changes or modifications to hardware and software of the device are not permitted. Incorrect operation or modifications to the device can endanger your safety or damage the device. Do not repair the device yourself. If the device is defective, please contact Phoenix Contact. 4/38 PHOENIX CONTACT...

  • Page 7: Security In The Network

    (VPN) for remote maintenance access, firewalls, etc., for protection against unau- thorized network access. – On first request, you shall release Phoenix Contact and the companies associated with Phoenix Contact GmbH & Co. KG, Flachsmarkstrasse 8, 32825 Blomberg, Germany in accordance with §§ 15 ff AktG (German Stock Corporation Act), here- inafter collectively referred to as “Phoenix Contact”, from all third-party claims...
  • Page 8 BL2 BPC 15… 6/38 PHOENIX CONTACT 4038_en_J...

  • Page 9: Overview And Ordering Data

    1.10/2.40 GHz, fanless, 32 GB eMMC data storage, 2x COM ports, IP30 ® ® Industrial box PC, Intel Celeron processor N3350 BL2 BPC 1501E-W 1141843 1.10/2.40 GHz, fanless, 32 GB eMMC data storage, 2x COM ports, IP30, WLAN 7/38 PHOENIX CONTACT 4038_en_J...
  • Page 10 2019 LTSC operating system, Trusted Platform Mod- ule (TPM) ® ® Industrial box PC, Intel Atom processor E3940 BL2 BPC 1541S-4/64-W10 1272688 1.60/2.80 GHz, fanless, 4 GB RAM, 64 GB eMMC data stor- age, IP30, Windows 10 Enterprise 2019 LTSC operating system 8/38 PHOENIX CONTACT 4038_en_J...
  • Page 11 BL2 BPC 1500 128GB M.2 1147737 spreader, bracket, and thermal pads are included SSD KIT Visit phoenixcontact.net/products for available accessories Replacement parts Description Type Order No. Pcs./Pkt. Connector, printed circuit board connector MC 1,5/ 2-STF-3,5 1847055 9/38 PHOENIX CONTACT 4038_en_J...

  • Page 12: Dimensions

    BL2 BPC 15… Dimensions Figure 2-1 BL2 BPC 15…S… dimensions 45.9 Figure 2-2 BL2 BPC 15…E… dimensions 10/38 PHOENIX CONTACT 4038_en_J...

  • Page 13: Installation

    Place the wall brackets on the back of the PC. Figure 3-1 Wall bracket installation (BL2 BPC 15…S… shown) Attach the two brackets to the BL2 BPC 15… using the included M3x5 screws. Torque the screws to 0.5 Nm. 11/38 PHOENIX CONTACT 4038_en_J...
  • Page 14 Improper torque may damage the threads in the aluminum housing. Figure 3-3 DIN rail mounting bracket Angle the BL2 BPC 15… to the top edge of the mounting plate hangs on the top edge of the DIN rail (A). 12/38 PHOENIX CONTACT 4038_en_J...
  • Page 15 Secure the device on the rail with rail clamps. If necessary to remove, push down on the top of the unit and then tilt out. Figure 3-5 Removal from a DIN rail 13/38 PHOENIX CONTACT 4038_en_J...

  • Page 16: Interfaces

    Serial (COM): Two D-SUB 9 serial ports (BL2 BPC 15…E… only) are for serial commu- nication. X7: COM may be configured as either RS-422, 4-wire RS-485, or 5-wire RS- 232 (see “Serial communication (BL2 BPC 15…E… only)” on page 16). 14/38 PHOENIX CONTACT 4038_en_J...

  • Page 17: Power Connection

    The operational voltage is 12 … 30 V DC as shown on the product at the power con- nector X1. However, the products only meet CE approval when operated at 24 V DC ±20% as shown on the product label. 15/38 PHOENIX CONTACT 4038_en_J...

  • Page 18: Antenna Installation

    The physical layer is set using the UEFI setup accessed during the boot sequence (see “Configurable D SUB-9 connector” on page 26). The X8 COM port operates on the RS-232 layer only. 16/38 PHOENIX CONTACT 4038_en_J...
  • Page 19 – TXD- TXD- TXD+ TXD+ RXD+ RXD+ – RXD- RXD- – – – – – – – Wake on ring Wake on ring Wake on ring This is a limited, 5-wire implementation of the RS-232 standard. 17/38 PHOENIX CONTACT 4038_en_J...
  • Page 20 BL2 BPC 15… 18/38 PHOENIX CONTACT 4038_en_J...

  • Page 21: Operation

    Indicates data storage activity 15…E… only) green Table 4-2 Ethernet port LED indicators Status Description Activity Link No link Solid orange Linked Flashing orange Active data transfer Speed 10 Mbps connection Orange 100 Mbps connection Green 1000 Mbps connection 19/38 PHOENIX CONTACT 4038_en_J...
  • Page 22 BL2 BPC 15… 20/38 PHOENIX CONTACT 4038_en_J...

  • Page 23: Maintenance

    Interface panel showing mounting screws : U S : U S : E T : E T — : P W R : 1 2 - 3 Remove the two screws (1) in the interface panel. 21/38 PHOENIX CONTACT 4038_en_J...
  • Page 24 Remove the four screws (1) on the top panel (opposite end from the interface panel) and remove the panel (2). With the top panel off, the heat sink (3) can be removed to access the circuit board and drive bay. Figure 5-3 Drive installation 22/38 PHOENIX CONTACT 4038_en_J...

  • Page 25: Real-Time Clock Battery

    Remove the two upper screws (1) securing the back panel (2) to the upper heat sink (3). It is not necessary to remove the two lower screws. Remove the two lower screws (4) securing the interface panel to the lower heat sink (5). 23/38 PHOENIX CONTACT 4038_en_J...
  • Page 26 Slide the upper and lower heat sink-and-plate assemblies away from each other. Note that the circuit boards will come along with the upper heat sink. Friction may make separating the two heat sink assemblies difficult. Grasp firmly or carefully use a screwdriver to slide the two assemblies apart. 24/38 PHOENIX CONTACT 4038_en_J...
  • Page 27 15. Secure the heat sink assemblies together using the screws previously removed. Torque screws to 0.5 Nm. 16. Reinstall the BL2 BPC 15… and attach previously removed connectors. 17. Apply power to the unit and note the UEFI status. 25/38 PHOENIX CONTACT 4038_en_J...

  • Page 28: Uefi

    Configurable D SUB-9 connector During the power-up process, press the <F2> or <Delete> key until the UEFI interface appears. Navigate to the “Configuration/Super IO Configuration/Transceiver Mode” menu and follow the prompts. Figure 5-6 “Configuration/Super IO Configuration/Transceiver Mode” selection 26/38 PHOENIX CONTACT 4038_en_J...
  • Page 29 Maintenance Figure 5-7 “Line Termination” settings Make sure to adjust the RS-422/485 line driver settings accordingly. When finished, save the changes and reboot the system. 27/38 PHOENIX CONTACT 4038_en_J...
  • Page 30 BL2 BPC 15… 28/38 PHOENIX CONTACT 4038_en_J...

  • Page 31: A Technical Appendix

    Power, maximum @ 24 V Typical 12.7 W Maximum 16.8 W ® Windows 10, 32 GB M.2 drive, 4 GB RAM, loopback plugs in RS-232 and LAN ports, USB ports fully loaded, running Burn-in tests at 100% 29/38 PHOENIX CONTACT 4038_en_J...
  • Page 32 This is a limited implementation of the EIA-232 standard. RS-485 requires a four-wire installation unless software controls data flow management. Mechanical tests Shock test according to IEC 60068-2-27 15g with 11 ms impulse, 18 shocks total Vibration resistance according to EN 60068-2-6 30/38 PHOENIX CONTACT 4038_en_J...
  • Page 33 EN 61000-6-2 Approvals CE compliant FCC (CFR Title 47 Part 15 Subpart B: 2018 Class A) EN 55022, EN 55024 EN 300 328 V2.2.2; EN 301 893 V2.1.1; EN 301 4899-1 V2.1.1; EN 301 489-17 V3.1.1 31/38 PHOENIX CONTACT 4038_en_J...
  • Page 34 BL2 BPC 15… 32/38 PHOENIX CONTACT 4038_en_J...

  • Page 35: Appendixes

    Drive installation ................. 22 Figure 5-4: Separating the heat sink assemblies ..........24 Figure 5-5: Accessing the battery ................ 25 Figure 5-6: “Configuration/Super IO Configuration/Transceiver Mode” selection . 26 Figure 5-7: “Line Termination” settings ..............27 33/38 PHOENIX CONTACT 4038_en_J...
  • Page 36 BL2 BPC 15… 34/38 PHOENIX CONTACT 4038_en_J...

  • Page 37: List Of Tables

    List of tables List of tables Section 3 Table 3-1: D-SUB 9 pinout..................17 Section 4 Table 4-1: Device LED indicators ................. 19 Table 4-2: Ethernet port LED indicators..............19 35/38 PHOENIX CONTACT 4038_en_J...
  • Page 38 BL2 BPC 15… 36/38 PHOENIX CONTACT 4038_en_J...
  • Page 39 The receipt of technical documentation (in particular user documentation) does not constitute any further duty on the part of Phoenix Contact to furnish information on modifications to products and/or technical documentation. You are responsible to verify the suitability and intended use of the products in your specific application, in particular with regard to observing the applicable standards and regulations.
  • Page 40 Middletown, PA 17057 Should you have any suggestions or recommendations for improvement of the contents and layout of our manuals, please send your comments to: tecdoc@phoenixcontact.com 38/38 PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany phoenixcontact.com...
