Installation

4031_en_C
NOTE:
Exceeding the system temperature limits can result in performance degradation of any or
all components.
Install the BL2 PPC 1201-4/... with adequate clearance around the heat sink and provide
a minimum of 0.5 m/s air flow so that ambient air temperatures do not exceed the
operation limits. Insert cooling fan(s) in the enclosure, if necessary.
Connectors and switches must be accessible.
When installing the BL2 PPC 1201-4/... in a enclosure, follow these general rules:
– Verify clearances within the cabinet. Typically, leave at least 5 cm (2 in.) on each side
with 13 cm (5 in.) on the connector side.
– Drill all holes and make all cuts before beginning installation. Be sure to protect already
installed components from shavings during this procedure.
– Supporting panels must be at least 1.9 mm (14 ga.) to provide proper support.
– Make sure that there is adequate space around the heat sink to provide sufficient
cooling.
3.1

Mounting

1. Cut a hole in the enclosure according to the dimensions for the selected display.
X

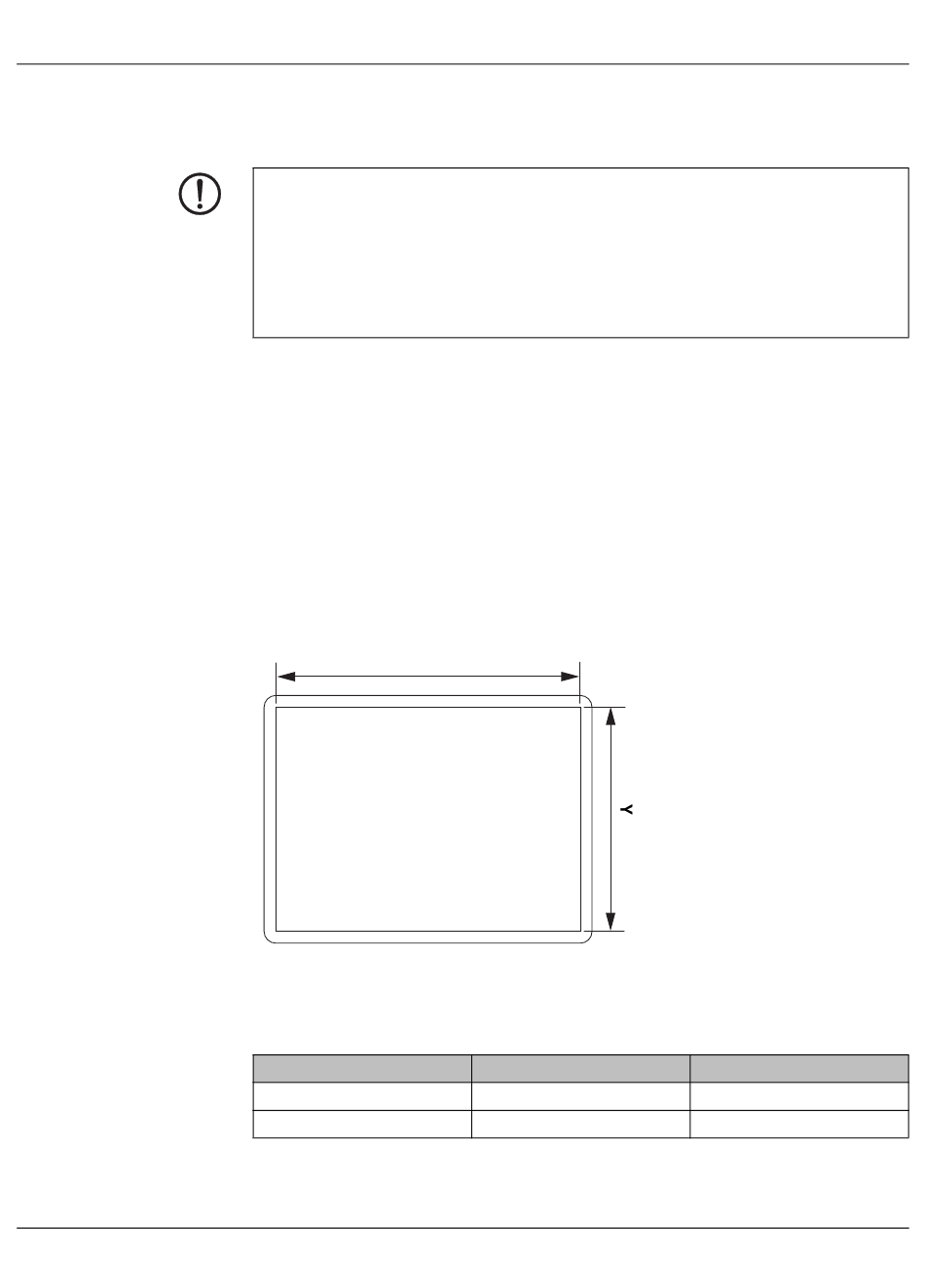

Figure 3-1 Panel cutout dimensions
Table 3-1 Display cutout dimensions
Display size
7 in.
10 in.
X (mm)
186
229
Installation
Y (mm)
124
155
