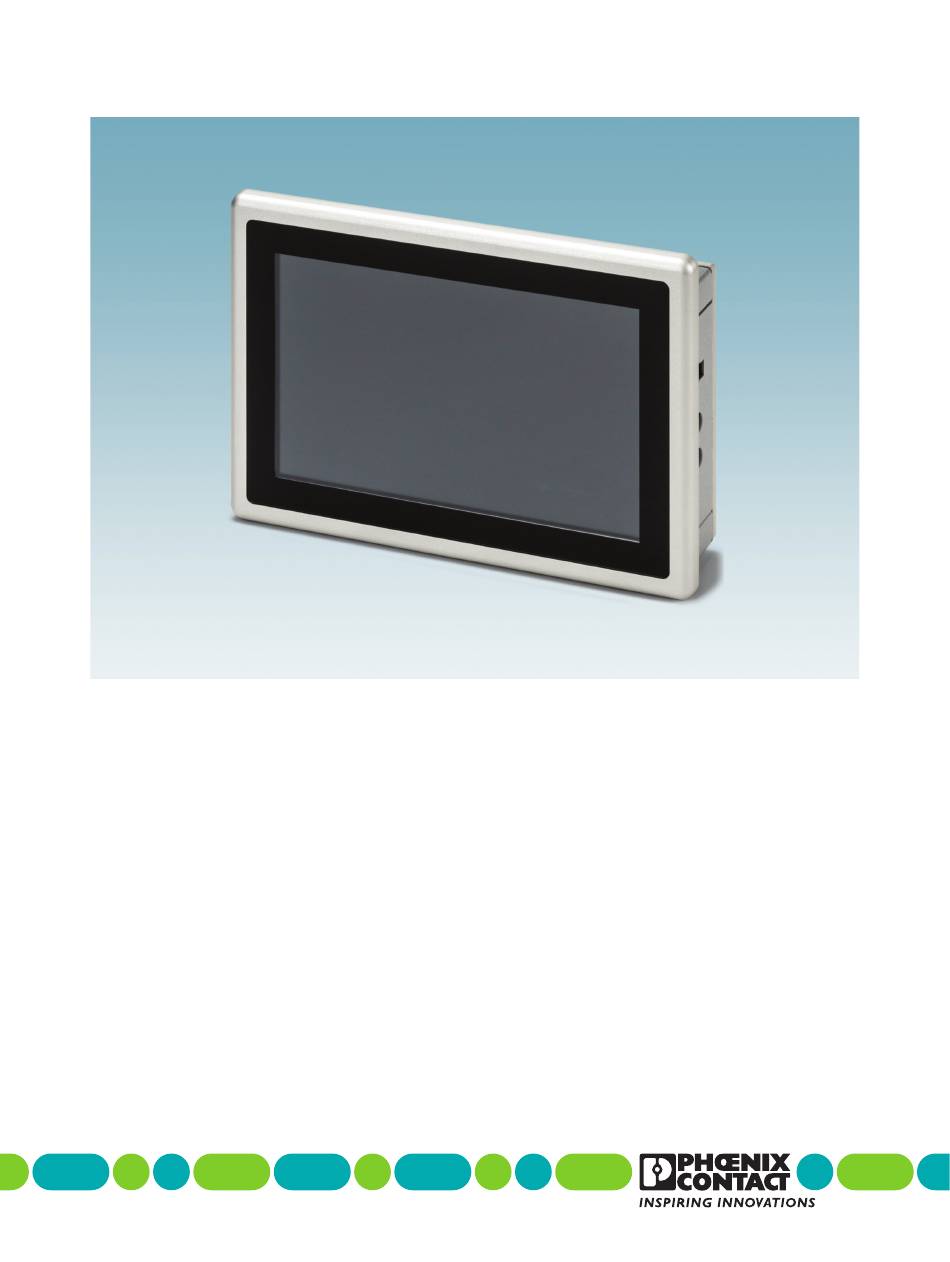

  • Page 1 Basicline 2 PPC 1200 industrial PC User manual UM EN BL2 PPC 1200...
  • Page 2 UM EN BL2 PPC 1200, Revision C 2021-02-10 This user manual is valid for: Designation Order No. BL2 PPC7 1201-4/64-W10 1274012 BL2 PPC10 1201-4/128-W10 1274014 PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany phoenixcontact.com...

  • Page 3: Table Of Contents

    Installation ..........................9 Mounting ....................... 9 Interfaces......................11 3.2.1 Power connection ................12 3.2.2 Serial communication ................13 Antenna ....................... 14 Technical appendix........................15 Technical data ....................15 Appendixes..........................19 List of figures ...................... 19 List of tables ....................... 21 3/24 PHOENIX CONTACT 4031_en_C...
  • Page 4 BL2 PPC 1201-4/… 4/24 PHOENIX CONTACT 4031_en_C...

  • Page 5: For Your Safety

    They are tested to ITE levels. The products are built according to the latest safety requirements. However, dangerous situations or damage to the products or other property can arise from misuse of this device. 5/24 PHOENIX CONTACT 4031_en_C...

  • Page 6: Product Changes

    Changes or modifications to hardware and software of the device are not permitted. Incorrect operation or modifications to the device can endanger your safety or damage the device. Do not repair the device yourself. If the device is defective, please contact Phoenix Contact. 6/24 PHOENIX CONTACT...

  • Page 7: Overview And Ordering Data

    128 GB mSATA SSD, and Windows 10 IoT Enterprise LTSC 2019 Accessories Description Type Order No. Pcs./Pkt. Visit phoenixcontact.net/products for available accessories Replacement parts Description Type Order No. Pcs./Pkt. Connector, printed circuit board connector MC 1,5/ 2-STF-3,81 1827703 7/24 PHOENIX CONTACT 4031_en_C...
  • Page 8 BL2 PPC 1201-4/… 8/24 PHOENIX CONTACT 4031_en_C...

  • Page 9: Installation

    Mounting Cut a hole in the enclosure according to the dimensions for the selected display. Figure 3-1 Panel cutout dimensions Table 3-1 Display cutout dimensions Display size X (mm) Y (mm) 7 in. 10 in. 9/24 PHOENIX CONTACT 4031_en_C...
  • Page 10 From the rear of the enclosure, place a clamp in each slot (3) and slide away from the enclosure panel. Using an alternating pattern, turn each screw clockwise until the BL2 PPC 1201-4/… is secured in the enclosure panel. Torque each clamp screw to 0.88 Nm. 10/24 PHOENIX CONTACT 4031_en_C...

  • Page 11: Interfaces

    RS-232, IIRC. Two ports are configurable as either RS-232, RS-422, or RS-485. – USB (USB): USB devices connect using Type A connectors. Two ports are USB 2.0 and one is USB 3.0. USB 3.0 ports utilize a blue connector. USB 2.0 ports are black. 11/24 PHOENIX CONTACT 4031_en_C...

  • Page 12: Power Connection

    This device is protection class I item of equipment. UEFI is set to boot on power, allowing the system to boot as soon as the power plug is installed. This can be changed in the UEFI. 12/24 PHOENIX CONTACT 4031_en_C...

  • Page 13: Serial Communication

    The function of the pins in the D-SUB 9 connector varies with the different configuration settings. Table 3-4 D-SUB 9 pinout D-SUB 9 pin RS-232 RS-422 RS-485 TXD- TXD-/RXD- TXD+ TXD+/RXD+ RXD+ – RXD- – – – – – – – Ring indicator – – 13/24 PHOENIX CONTACT 4031_en_C...

  • Page 14: Antenna

    NOTE: Do not allow metal chips to fall within the enclosure when creating the hole for mounting the antenna. Installation of the miniPCI card for wireless communication voids the UL 61010 listing. 14/24 PHOENIX CONTACT 4031_en_C...

  • Page 15: A Technical Appendix

    Windows 10, SSD and M.2 drives, 8 GB RAM, loopback plugs in all COM and LAN ports, USB ports fully loaded, running Burn-in tests Operating systems ® Operating system (configuration option) Windows 10 IoT Enterprise LTSB 2019 Data storage Type (configurable option) Internal mSATA SSD Number of bays RAID support None 15/24 PHOENIX CONTACT 4031_en_C...
  • Page 16 Ethernet connection 10/100/1000 Mbps LAN chipset Intel Ethernet controller I211-AT Number of mini PCIe slots Mini PCIe card size, maximum 30.00 x 50.95 x 15.00 mm This slot is not available if ordered with the wireless option 16/24 PHOENIX CONTACT 4031_en_C...
  • Page 17 Type Capacitive touch screen Brightness 320 Cd/m² Number of colors 16.2 million Backlight life, minimum 20000 h Contrast ratio 1000:1 View angle, horizontal/vertical (CR=10), typ. 140°/120 Installation cutout dimensions (width x height) 186 x 124 mm 17/24 PHOENIX CONTACT 4031_en_C...
  • Page 18 CE compliant FCC Part 15 Class A UL/cUL UL 61010 Installation of the miniPCI card for wireless communication voids the UL 61010 listing. Use of the VESA mount (outside an enclosure) removes the UL 61010 listing 18/24 PHOENIX CONTACT 4031_en_C...

  • Page 19: Appendixes

    Panel cutout dimensions ............... 9 Figure 3-2: Gasket installation ................10 Figure 3-3: Panel-mounting clamps ..............10 Figure 3-4: Connectors and ports (BL2 PPC10 1200 shown) ....... 11 Figure 3-5: Power connector ................. 12 Figure 3-6: Antenna installation ................14 19/24 PHOENIX CONTACT 4031_en_C...
  • Page 20 BL2 PPC 1200 20/24 PHOENIX CONTACT 4031_en_C...

  • Page 21: List Of Tables

    List of tables List of tables Section 3 Table 3-1: Display cutout dimensions ..............9 Table 3-2: Power connector.................. 12 Table 3-3: RS-232/422/485 communication settings ..........13 Table 3-4: D-SUB 9 pinout..................13 21/24 PHOENIX CONTACT 4031_en_C...
  • Page 22 BL2 PPC 1200 22/24 PHOENIX CONTACT 4031_en_C...
  • Page 23 The receipt of technical documentation (in particular user documentation) does not constitute any further duty on the part of Phoenix Contact to furnish information on modifications to products and/or technical documentation. You are responsible to verify the suitability and intended use of the products in your specific application, in particular with regard to observing the applicable standards and regulations.
  • Page 24 Middletown, PA 17057 Should you have any suggestions or recommendations for improvement of the contents and layout of our manuals, please send your comments to: tecdoc@phoenixcontact.com 24/24 PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany phoenixcontact.com...
