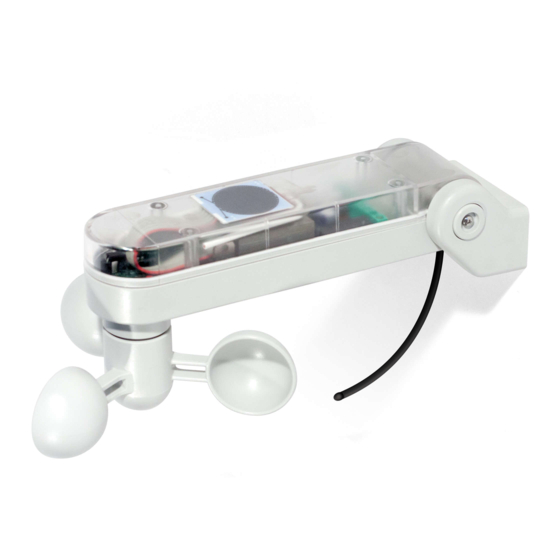

WIWEATHER
USER'S AND INSTALLER'S MANUAL
00. CONTENT
INDEX
01. SAFETY INSTRUCTIONS
02. INSTALLATION
03. INITIAL FUNCTIONING CONDITION
04. WIND SENSOR FUNCTIONING
05. SUN SENSOR FUNCTIONING
06. RAIN SENSOR FUNCTIONING
07. PROGRAMMING KEYS AND INDICATOR LED
SEL KEY
SET KEY
INDICATOR LED
CODE - SEND COMMAND SIGNAL
SPEED - CHECK PROGRAMMED WIND LIMIT
SPEED - SET WIND LIMITS BETWEEN 5 AND 40KM/H
WIND - WIND SENSOR ON/OFF
SUN - SUN SENSOR ON/OFF
RAIN - RAIN SENSOR ON/OFF
08. SENSOR MONITORING LEDS
TEST - ON/OFF SENSORS TEST
TEST - RUN TEST TO WIND SENSOR (ANEMOMETER)
TEST - RUN TEST TO SUN SENSOR
TEST - RUN TEST TO RAIN SENSOR
01. SAFETY INSTRUCTIONS
EN
ATTENTION:
This product is certified in accordance with European
Community (EC) safety standards.
This product complies with Directive 2011/65/EU of the
European Parliament and of the Council, of 8 June 2011, on
the restriction of the use of certain hazardous substances in
electrical and electronic equipment.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the
1B
product and electronic accessories (eg. Charger, USB cable,
4B
electronic material, controls, etc.) should not be disposed
of as other household waste at the end of its useful life. To
5A
avoid possible harm to the environment or human health
5A
resulting from the uncontrolled disposal of waste, separate
5A
these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material
5A
resources. Home users should contact the dealer where they
purchased this product or the National Environment Agency
5B
for details on where and how they can take these items
5B
for environmentally safe recycling. Business users should
5B
contact their vendor and check the terms and conditions
5B
of the purchase agreement. This product and its electronic
6A
accessories should not be mixed with other commercial
6A
waste.
6A
6A
6A
This marking indicates that the product and electronic
accessories (eg. charger, USB cable, electronic material,
controls, etc.) are susceptible to electric shock by direct or
6B
6B
indirect contact with electricity. Be cautious when handling
6B
the product and observe all safety procedures in this manual.
6B
1A
1B
EN
EN
EN
EN
