Motorline professional MR27 User's And Installer's Manual

MR27 |
USER'S AND INSTALLER'S MANUAL
TECHNICAL SPECIFICATIONS

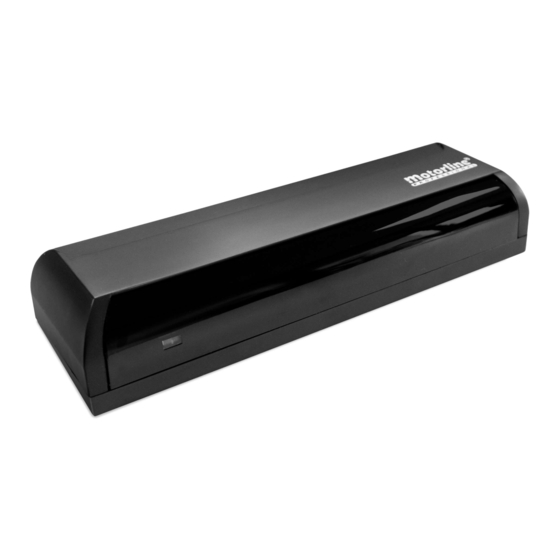

The MR27 is a 2 in 1 sensors radar - Radar and photocells
combined in a single product.
2 output relays - Motion and Presence. Developed for automatic
sliding and revolving doors.
With Self-Learning Function of the infrared sensor's action
area. It allows to adapt automatically to changes in the area of
infrared detection as well as fluctuations, distortion, movement,
darkness and lightness.
This product adopts a microwave sensor with german origin, and
it is not influenced by temperature and humidity, ensuring a
reliable and safe performance.
For installations up to 2.5 meters high.
• RADAR DESCRIPTION
7
6
9
2
1 6
Cover Angle of Inclination's Indicator
2 Base 7 Radar Module
3 8
Lens Radar's Sensitivity Regulator
4 Transmitter 9 Activation Indicator
5 10
Receptor Safety Indicator
1
14 8 10
11
12
13
4 5
3
11
Main connector
12 Infrared Ajusting Area
13
NO/NC Jumper
Microwave relay
14
Jumper
CHARACTERISTICS BOARD
• Power Supply
• Output
• Current (STANDBY)
• Current (Action)
• Cable Length
• Instalation Max Height
• Cover's Material
PRESENCE SENSOR
• Ray Type
• Ray Source
• Ray Quantity
• Self-Learning Time
• Operation's Indicator
• Temperature
• Detection Area
• Output Time
• Reply
• Optical Surface
• Technology
• Frequency
• Emission
• Transmission frequency density
• Detection Mode
• Detection Range
• Output Time
• Temperature
• CONNECTION DIAGRAM | JUMPERS
RED AC/DC
12-36V
BLACK
COM
BROWN
PRESENCE
(Relay)
NC
YELLOW
COM
5 GREEN
MOVEMENT
NO (Relay)
6
WHITE
REV. 04/2017
AC/DC 12 to 30V (-/+10%)
2 Relays
65mA
130mA
2500mm
2500mm
ABS
Refleted Infrared
Infrared 940mm
8 emitted, 8 emitted
60 sec.
Standby (blue)/ Activ. (red)
-40⁰c to 60⁰C
1600 (W) x 800 (D) mm
500ms
≤100ms
PMMA
RADAR
Processor
24.125GHz
<20dBm EIRP
<5mW/cm2
Movement
4m (W) x 2m (D)
0.5s
-20°C to 55°C
A
13
A and B - NO Contact
B
B and C - NC Contact
C
A
A and B - The microwave relay is activa-
14
ted by infrared relay at the same time.
B
B and C - The microwave relay is not acti-
C vated by infrared relay.
1
V3.0
EN
