Modulated infrared barrier .
Operating with opposed transmitter and receiver. Double safety relais (one energised and one not energised).
Technical data:
- Range " nominal "
- Range " max." .
- Power supply
- Consumption pair ( IT + IR )
- Working temperature
- Box
- Protection degree
- Dimensions
IT 2135 Transmitter:
- Modulation frequency
- Infrared wave length
IR 2135 Receiver:
- Relais contacts
- Output contact normally open
- Output contact normally closed
- Red Led that is on when the photocells are aligned.
Terminal board connections: (fig. 2)
Rev. 1.1 del 27-02-2007

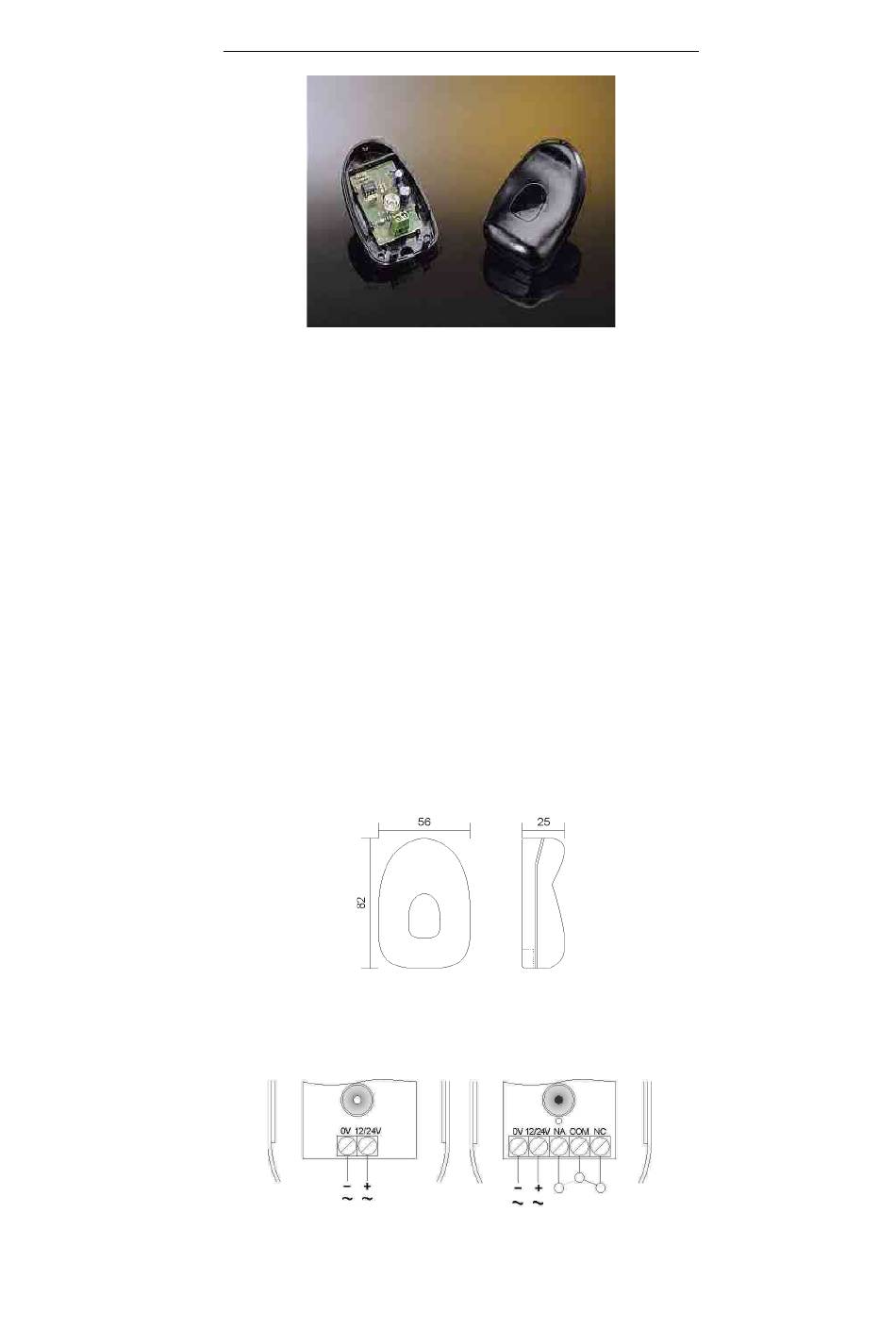

EXTERNAL PHOTOELECTRIC CELL MF1
: 8 meters
: 14 meters
: 12-24V AC-DC
: 2 W
: -10 55 °C
: polycarbonate
: IP 54
: see fig. 1
: 1000Hz
: 950nm
: 1A max a 30 VDC
: NA
: NC
TX
Fig. 1
RX
Fig. 2
