Lightcloud LCCONTROL/MINI Manual page 7

Setup & Installation
Install your Lightcloud Controller
2

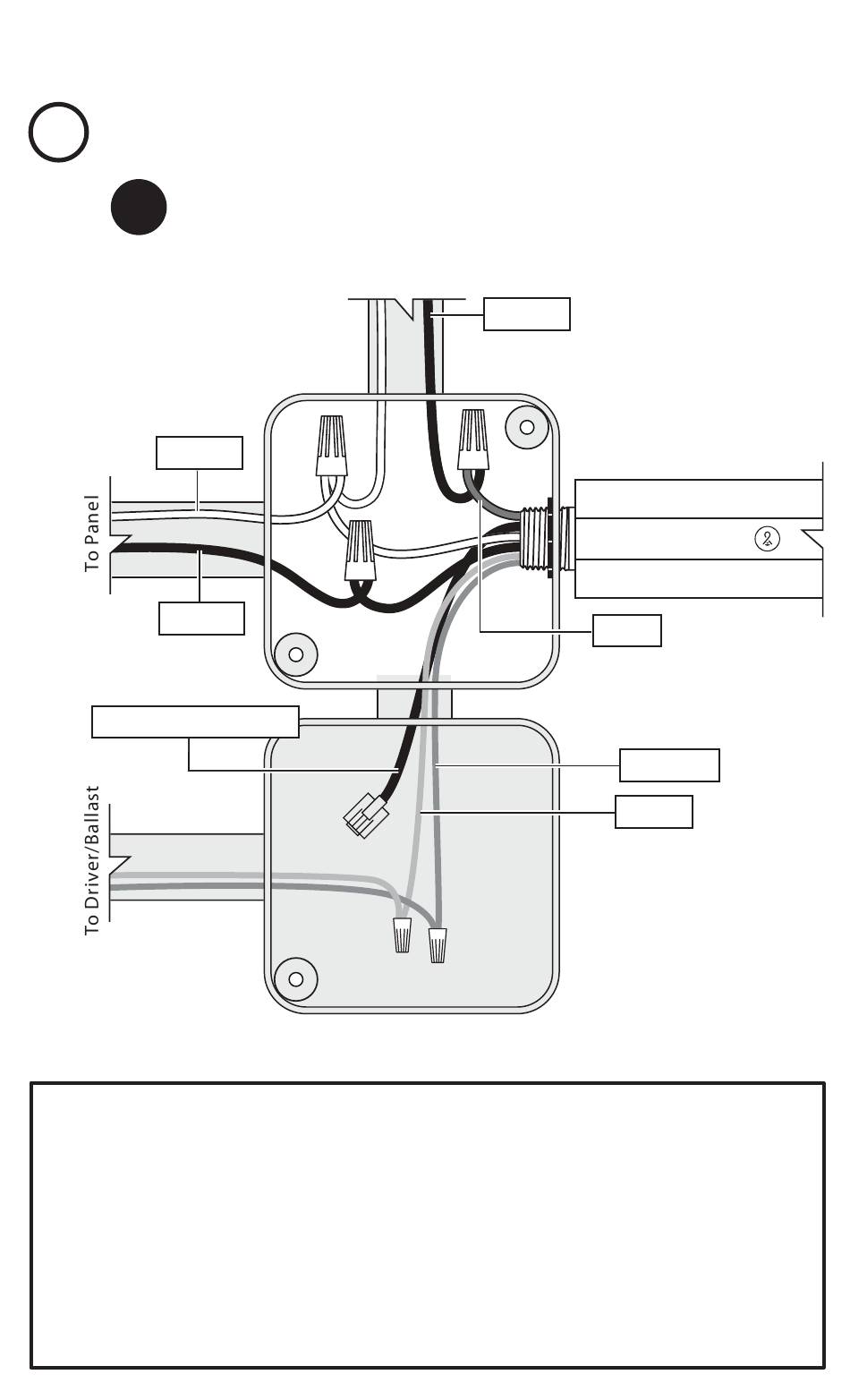

2a Install at a Junction Box
WHITE
BLACK
MODULAR CABLE
0-10V DIMMING
0-10V is a common method of low-voltage control of dimmable
drivers and ballasts. Purple: 0-10V positive | Pink: 0-10V common
NOTE: The National Electrical Code requires that low-voltage
wiring used in the same enclosure as high-voltage wiring have
an equal or better insulation rating. You may need to complete
your low-voltage wiring in another enclosure or use a partition.
To Load
BLACK
(cont'd)
(Indoor/Outdoor)
Lightcloud ®
Controller Mini
RED
PURPLE
PINK
