Configure the BSU II
7.1
Setting Internal Address
Each BSU II must have a separate internal address. The address is defined by how the DIP switches 1-4 are set on
the unit. Refer to Figure 7.1 and Table 7.A and B for DIP switch definitions of the corresponding addresses.
Note: The addressing begins at address 1 and increments in sequences up to address 12.

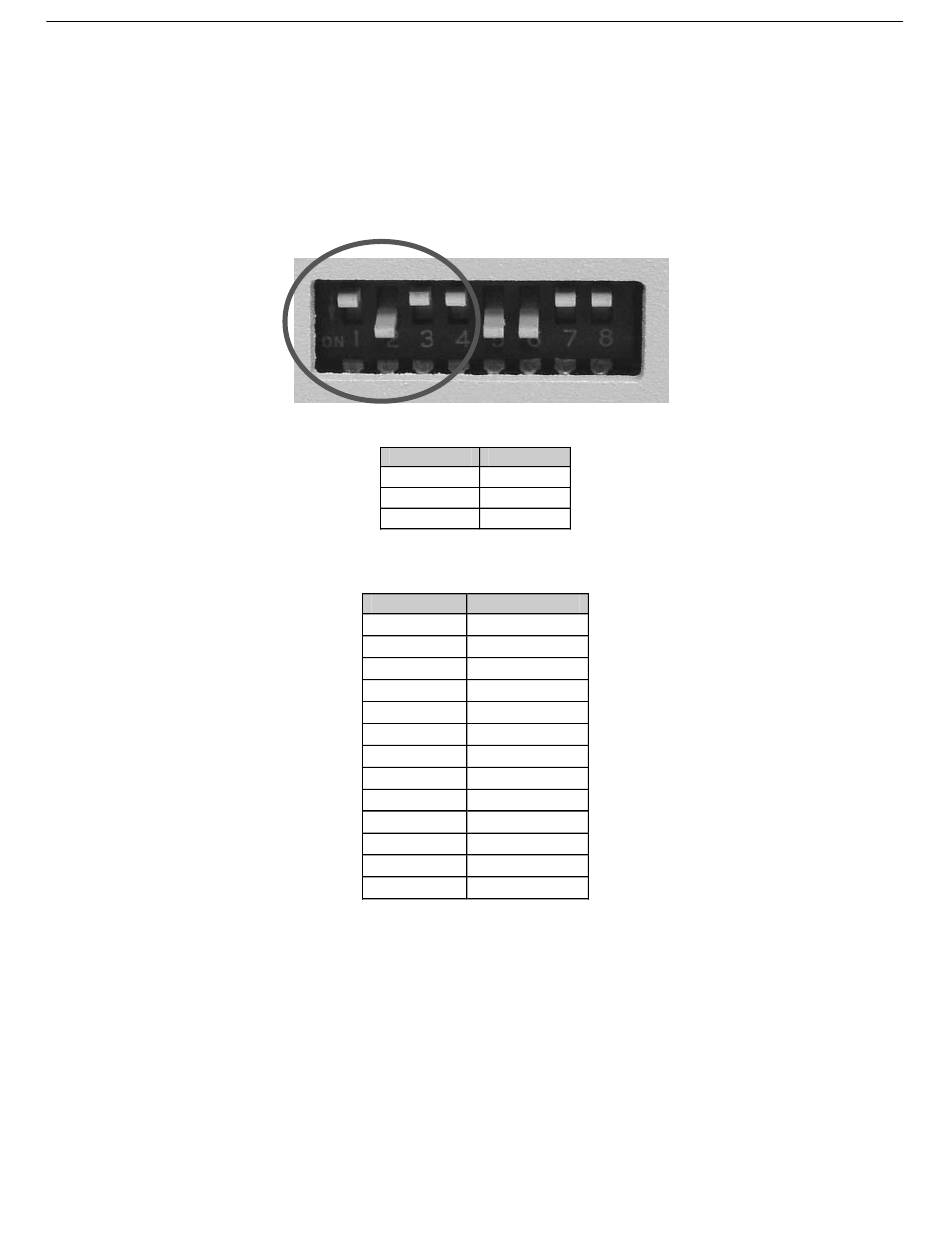

Fig. 7.1 The BSU II set to Internal Address 2.
DIP Switch
1-4
5-7
8
Table 7.A DIP switch definitions.
DIP Switch
0000
1000
0100
1100
0010
1010
0110
1110
0001
1001
0101
1101
0011
Table 6.B DIP switch Internal Address definitions.
Definition
Address
Baud
reserved
Definition
Display Only
Adr. 1
Adr. 2
Adr. 3
Adr. 4
Adr. 5
Adr. 6
Adr. 7
Adr. 8
Adr. 9
Adr. 10
Adr. 11
Adr. 12
