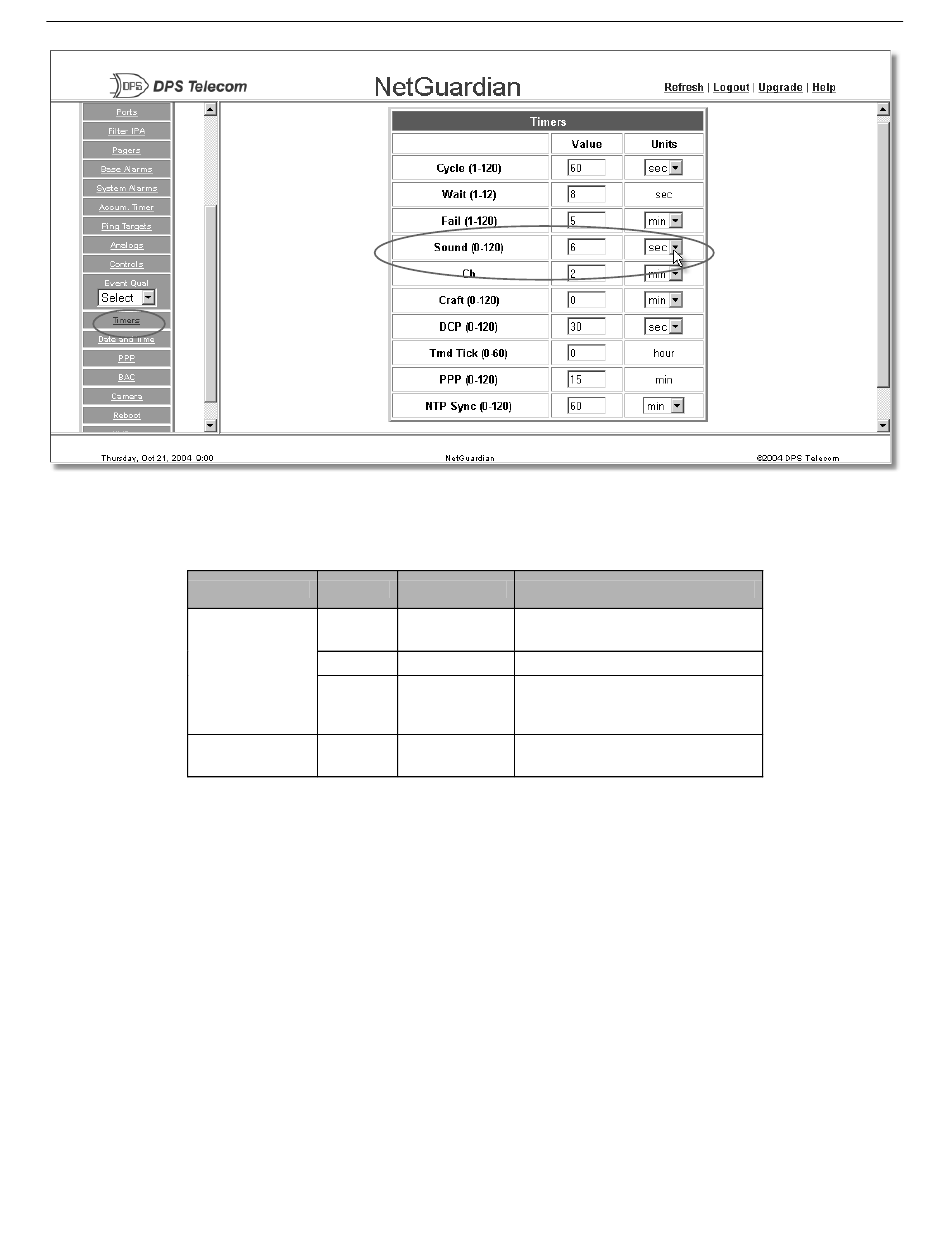

Fig. 8.6 Define the amount of time the BSU II audible notification will sound in the Edit > Timers screen.
9

COMM and Fuse Alarm LED Indications

COMM
Fuse Alarm
The COMM LED indicates communication with the host. A red flash shows receive activity, while a green flash
shows transmit activity. A slow green blink represents a communication link idle for more than 2 minutes, which
is considered a communication failure. In addition, the front panel Fuse Alarm LED will show red if there is a
blown fuse.
LED Color
Red
Green
Green
Red
Table 9.A BSU II LED descriptions.
Action Description
Flash Receive activity
Flash Transmit activity
Communication failure
Slow blink (communication link idle
for more than 2 mins)
Solid Blown fuse
