Aries 2074110 Installation Manual

INSTALLATION MANUAL

Parts List

1 Driver / left rocker step
1 Passenger / right rocker step
12 Hex bolt, M8
12 Flat washer, M8
12 Lock washer, M8
6 Hex bolt, M10
6 Flat washer, M10
6 Lock washer, M10
6 Bolt, M12 / Nut, M10 plate
6 Flat washer, M12
6 Lock washer, M12
6 Hex nut, M12
6 Plastic bolt retainer, M12
2 Spacer plate

Tools Required

Torque wrench Socket, 13mm
Utility knife Socket, 16mm
Level Socket, 18mm

Torque Specifications

M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
Use above torque setting
unless otherwise noted
Level of Difficulty
Easy

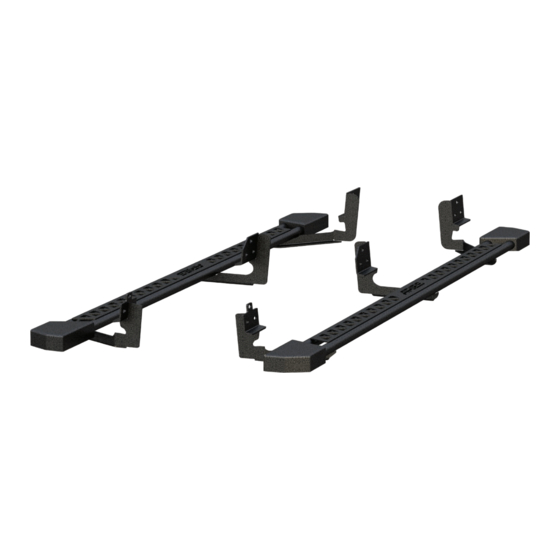

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 2074110-INS-RD • 877.287.8634 • NEED ASSISTANCE?
2074110
Scan
for helpful
install tips
Rear
Front
• ARIESAUTOMOTIVE.COM
