INSTALLATION MANUAL
Parts List
1
Driver / left side rocker step
1
Passenger / right side
rocker step
12
Flat washer, M8
12
Lock washer, M8
12
Hex bolt, M8 - 1.25 x 30mm
Tools Required
Ratchet
Extension
Socket, 12mm
Torque wrench
Socket, 13mm
Level
Torque Specifications
M6 bolt
3 ft.-lbs.
M8 bolt
7 ft.-lbs.
M10 bolt
16 ft.-lbs.
M12 bolt
28 ft.-lbs.
1/4" bolt
3 ft.-lbs.
5/16" bolt
7 ft.-lbs.
3/8" bolt
16 ft.-lbs.
7/16" bolt
20 ft.-lbs.
1/2" bolt
28 ft.-lbs.
Level of Difficulty
Easy

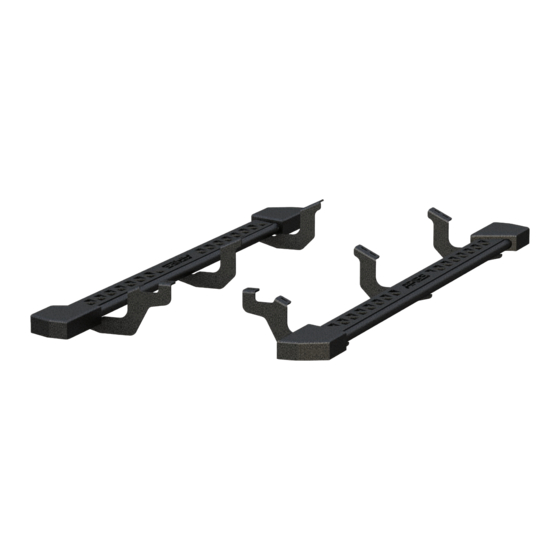

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 2074150-INS-RA • 800.798.0813 • NEED ASSISTANCE?
2074150
Scan
for helpful
install tips
Rear
Front
• ARIESAUTOMOTIVE.COM
Advertisement
Table of Contents
Related Manuals for Aries 2074150
Summary of Contents for Aries 2074150
- Page 1 3 ft.-lbs. installation process to help prevent damage to the product or vehicle. 5/16" bolt 7 ft.-lbs. 3/8" bolt 16 ft.-lbs. 7/16" bolt 20 ft.-lbs. 1/2" bolt 28 ft.-lbs. • ARIESAUTOMOTIVE.COM PAGE 1 • 2074150-INS-RA • 800.798.0813 • NEED ASSISTANCE?
- Page 2 Repeat steps 2 and 3 to secure the middle and rear mounting points. With the rocker step in position, tighten all hardware to the recommended torque specifications on page one. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2074150-INS-RA • PAGE 2...
- Page 3 Congratulations on the installation of your new ARIES rocker steps. With the rocker steps installed, periodic inspections should be performed to ensure all mounting hardware remains tight. • ARIESAUTOMOTIVE.COM PAGE 3 • 2074150-INS-RA • 800.798.0813 • NEED ASSISTANCE?
