INSTALLATION MANUAL
Parts List
1
Driver / left side rocker step
1
Passenger / right side rocker step
12
Flat washer, M8
12
Serrated flange hex nut, M8
Tools Required
Torque wrench
Socket, 13mm
Torque Specifications
M6 bolt
3 ft.-lbs.
M8 bolt
7 ft.-lbs.
M10 bolt
16 ft.-lbs.
M12 bolt
28 ft.-lbs.
1/4" bolt
3 ft.-lbs.
5/16" bolt
7 ft.-lbs.
3/8" bolt
16 ft.-lbs.
7/16" bolt
20 ft.-lbs.
1/2" bolt
28 ft.-lbs.
Level of Difficulty
Easy

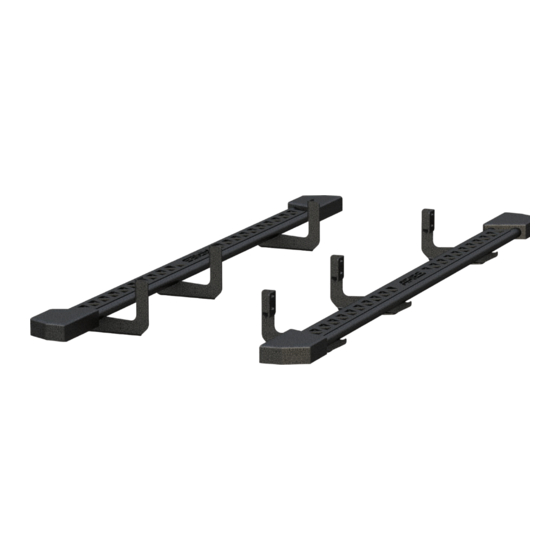

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 2074140-INS-RA • 800.798.0813 • NEED ASSISTANCE?
2074140
Scan
for helpful
install tips
Rear
Front
• ARIESAUTOMOTIVE.COM
Advertisement
Table of Contents
Related Manuals for Aries 2074140
Summary of Contents for Aries 2074140
- Page 1 20 ft.-lbs. Refer to the table to the left when securing hardware during the 1/2" bolt 28 ft.-lbs. installation process to help prevent damage to the product or vehicle. • ARIESAUTOMOTIVE.COM PAGE 1 • 2074140-INS-RA • 800.798.0813 • NEED ASSISTANCE?
- Page 2 Congratulations on the installation of your new ARIES rocker steps. With the rocker step installed, periodic inspections should be performed to ensure all mounting hardware remains tight. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2074140-INS-RA • PAGE 2...
