Aries 2070450 Installation Manual

INSTALLATION MANUAL

Parts List

2 Cross tubing
4 Bottom flange bracket
4 Locking bracket
4 Cover bracket
4 Cam lock handle, M10
4 Flat washer, M10
4 Button head cap screw, M12
4 Flat washer, M12
4 Lock washer, M12
4 3M tape strip, 60mm
4 3M tape strip, 70mm

Tools Required

Allen wrench, 8mm

Notes, Maintenance and Warnings

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
When using the roof cargo gutter brackets do not exceed the max weight capacity of 150 lbs.
This includes the weight of the cargo plus the weight of all accessories used in carrying the cargo.
Do not exceed height of 18 inches from the top of the cross tubing.
For best and safe use of the ARIES roof cargo brackets and accessories, the user must understand the precautions.
For black finishes, mild soap may be used to clean the product.
Do not over tighten the cam handle or it could cause cracking or breaking of the roof gutter (see page 3 for more details).
Make sure you understand and check local and state laws governing projection of objects beyond vehicle. Always be aware
of the width and height of the cargo to ensure clearance in tunnels, bridges, branches and spaces that require clearance.
Never drive anywhere without fully securing the brackets and cargo.
Periodically check to make sure the brackets, basket and cargo are fully secured during travel.
Be sure with long cargo, such as kayaks or surfboards, that you have it fully secured on the front and rear bumper
or tow hooks of the vehicle. Be sure to check vehicle manual for safe tie-down areas that will not cause damage.
Remove all roof cargo brackets, basket and all cargo before entering automated car washes.
For safest driving results be aware of posted speed limits, weather / road conditions and the load of the cargo.
Roof cargo brackets are not for off-road use, trailer use or towing of vehicles.
Roof cargo brackets are not recommended for carrying liquids or flammable materials.
Consult with your ARIES dealer if you have any questions regarding the operations or limits of ARIES products.
Be sure to review and understand all warranties and instructions carefully.
Do not use roof cargo brackets for anything other than what they are designed for or exceed load capacity.
Failure to do this will void all warranties of the product.
All warranty is void in the case of an accident or a collision.
Level of Difficulty
Easy

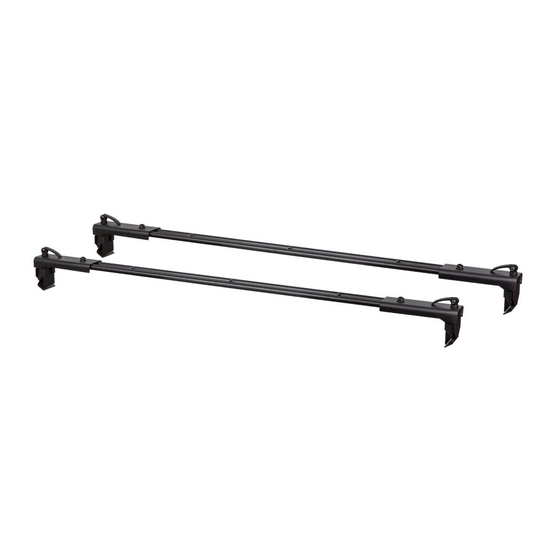

Product Image
PAGE 1 • 2070450-INS-RC • 877.287.8634 • NEED ASSISTANCE?
