Summary of Contents for Breezesta CH-0808

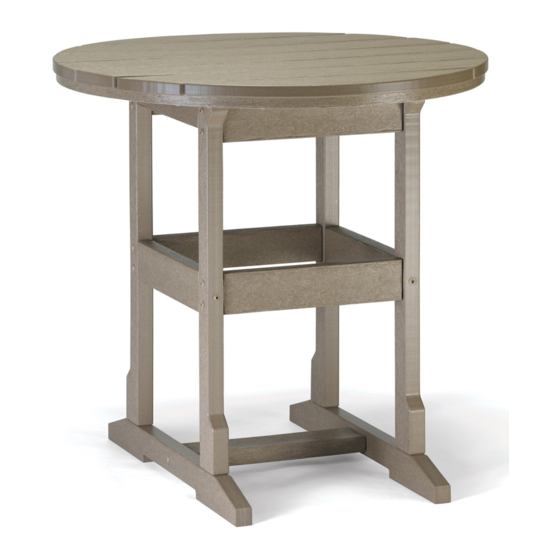

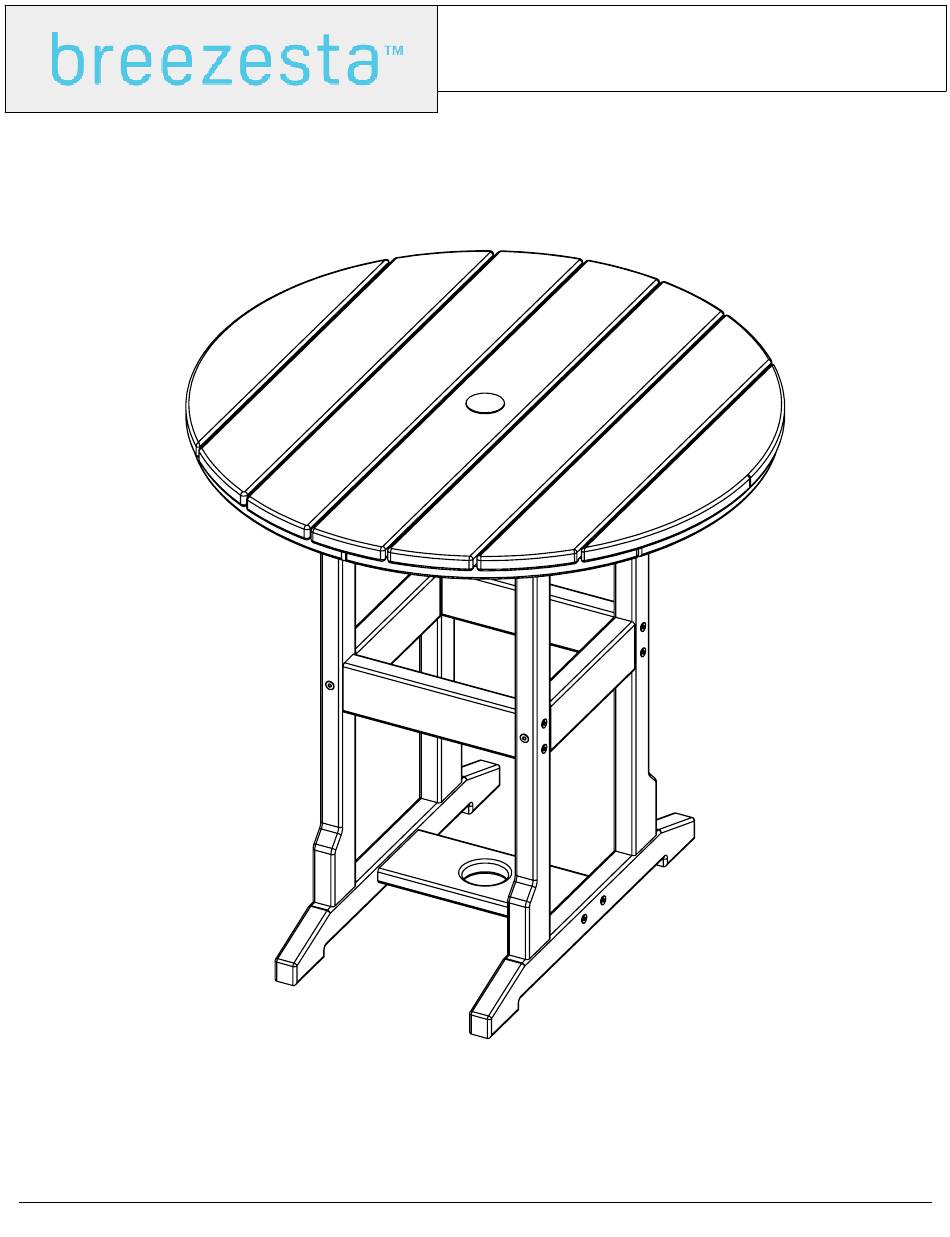

- Page 1 36" ROUND COUNTER TABLE CH-0808 REV03-10/21 CH-0808 Assembly...
- Page 2 PART DESCRIPTION PART NO. #8 X 1-1/2" TORX SCREW H-0000-S815 1/4-10 x 3" LAG H-0000-S103 #8 x 3/4" TORX SCREW H-0000-S834 L BRACKET FOR TABLE TOPS H-0000-MLB T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet CH-0808 Assembly...
- Page 3 Recommend 3/8" from front edge and flush to top Place second Part A on assembled piece from Step 1; Repeat Step 1 Place Part A onto Part D, attach using Hardware b through Hardware d May be easier if assembled upside down CH-0808 Assembly...
